About the product

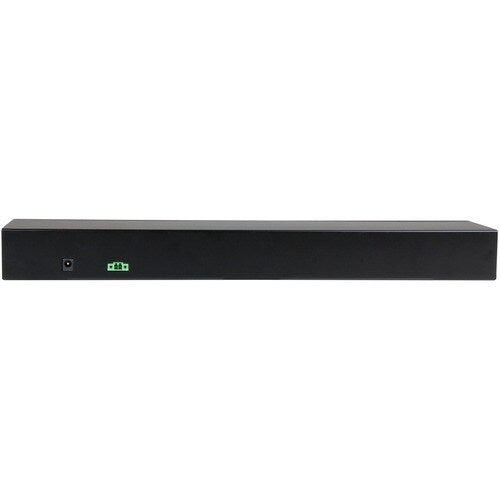

Here's an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F); ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
More from the Manufacturer
- Gain 16 RS232 serial port interfaces through a single USB port
- Connect multiple hubs together through daisy chain functionality
- 921.6Kbps baud per port
- 256-byte transmit, 128-byte receive FIFO
- Rack-mountable design
- COM port retention
- Extended operating temperature range: -40°C to 85°C (-40°F to 185°F)
- Durable all-metal chassis
- Low USB bandwidth consumption
- USB 2.0 compatible
Technical Specifications
| Interfaces/Ports | |
| Number of Serial Ports (External) | 16 |
| Physical Characteristics | |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Form Factor | External |
| Height | 1.80" (45.72 mm) |
| Width | 4.70" (119.38 mm) |
| Technical Information | |
| Host Interface | USB |
| Platform Supported | Linux |
| Mac | |
| PC | |
| Miscellaneous | |
| Additional Information | OS Compatibility:
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| General Information | |
| Product Type | Serial Hub |
| Manufacturer Part Number | ICUSB23216FD |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 16-Port USB-to-Serial Adapter Hub |
| Brand Name | StarTech.com |
