About the product

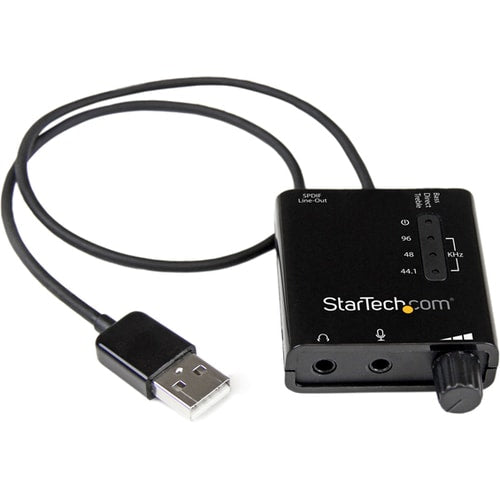

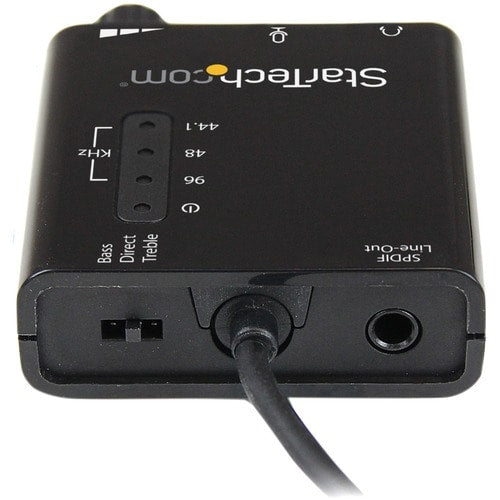

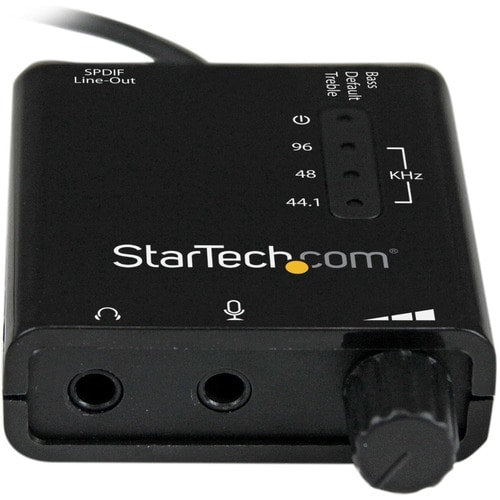

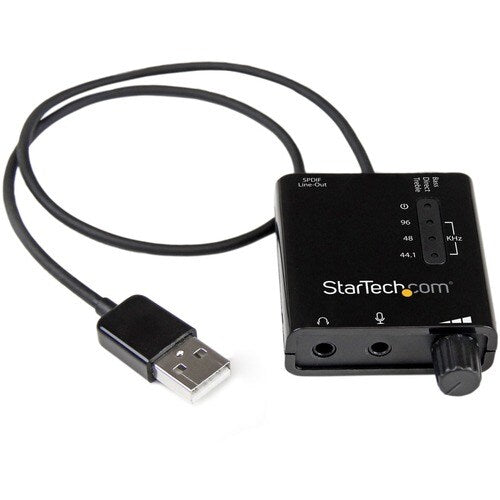

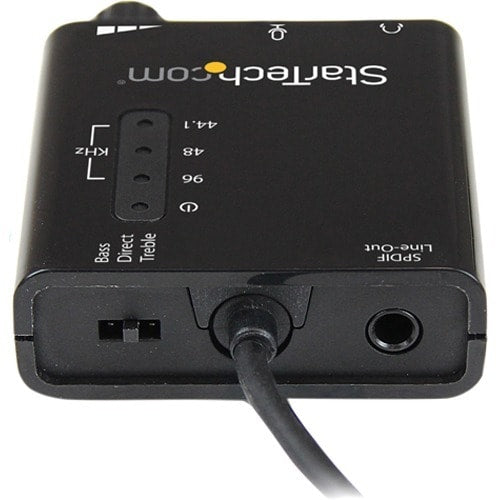

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.
For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only).
This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.
Please note that the microphone input is stereo only.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- 96KHz / 24-bit Hi-Fi USB Audio
- S/PDIF digital output with AC3 (Dolby Digital) and DTS pass-through support
- 5.1 Surround Sound supported (Windows only)
- 3.5mm headphone/microphone ports
- 4 position TRRS headset with Mic supported
- Hardware volume knob and Bass/Treble boost EQ switch
- LED sample rate indicators

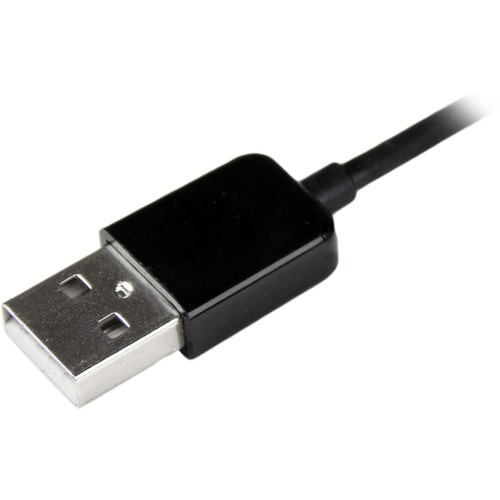

- 16in attached USB cable
Technical Specifications
| General Information | |
| Product Type | External Sound Box |
| Manufacturer Part Number | ICUSBAUDIO2D |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Package Contents |
|
| System Requirements | Operating System(s):
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Thickness | 1.9" |
| Weight (Approximate) | 1.16 oz (33 g) |
| Form Factor | External |
| Height | 0.60" (15.24 mm) |
| Width | 1.80" (45.72 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Host Interface | USB 2.0 |
| DAC Data Width | 24 bit |
| Platform Supported | PC |
| Mac | |
| Signal to Noise Ratio (SNR) | 91 dB |
| Sound Channels | 5.1 |
| Audio Processor Model | VT1630A |
| Audio Processor Manufacturer | VIA |
