StarTech.com 40

Name: StarTech.com 40
Brand: Startech
SKU: CBST4059F
Price: 25.87 CAD
Availability: InStock

$25.87 CAD

~~$29.75 CAD~~ $25.87 CAD

-13% OFF Ask for quote

Shipping calculated at checkout.

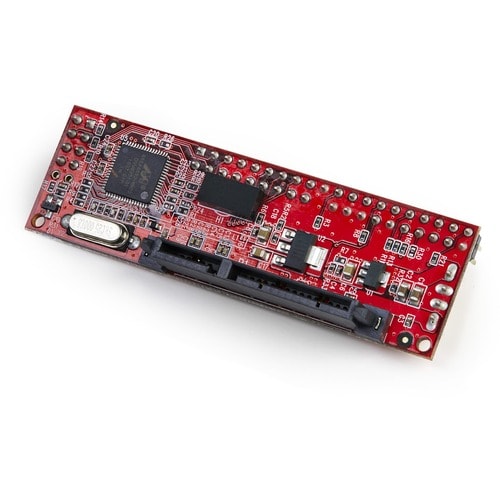

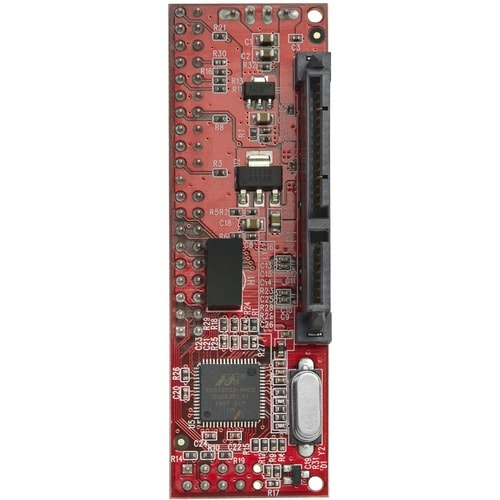

StarTech.com 40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD - Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard - IDE to SATA Adapter - IDE to SATA Converter - ATA to SATA Adapter - PATA to SATA Converter - PATA to SATA Adapter - IDE to SATA adapter with SSD/HDD/ODD Support

VPN:IDE2SAT2 SKU:CBST4059F CPU:65030852258

Connect a SATA device to an IDE/ATA motherboard or controller cardComplete hardware solution; no software requiredSupport for 48-bit Logical Block Addressing (LBA)"}]

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

The IDE2SAT240-pin IDE toSATA adapter enables you to connect a SATA I/II/III drive to an availableIDE/ATA 33/66/100/133 motherboard port -a cost effective solution that allows you to add newer SATA drives, andkeepyourexisting motherboard. The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5\"/3.5\"/5.25\" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray

DVD, orCD-ROM drives to an older IDE motherboard. TheIDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support. More from the ManufacturerConnect a SATA device to an IDE/ATA motherboard or controller cardComplete hardware solution; no software requiredSupport for 48-bit Logical Block Addressing (LBA)Compliant with SATA revision 1.0 specificationSupports SATA I/II/III (1.5/3/6Gbps) drivesCompatible with Ultra ATA 133 specificationSupports 2.5\" , 3.5\" , and 5.25\" SATA DrivesODD (Optical Disk Drive) support, including Blu-ray, DVD, and CD-ROM drives

Technical Specifications

General Information
Product Type	IDE to SATA Adapter
Manufacturer Part Number	IDE2SAT2
Manufacturer Website Address	http://www.startech.com
Packaged Quantity	1 Each
Manufacturer	StarTech.com
Product Name	40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD
Brand Name	StarTech.com
Physical Characteristics
Weight (Approximate)	1 oz (28.35 g)
Length	3" (76.20 mm)
Height	0.90" (22.86 mm)
Width	0.80" (20.32 mm)
Product Color	Black
Color Family	Black
Product Material	Plastic
	Steel
Miscellaneous
Additional Information	Chipset ID: Marvell - 88SA8852 1 x IDE (40 Pin; EIDE/PATA) 1 x SATA Data & Power Combo (7+15 pin) 1 x SP4 (4 pin; Small Drive Power) Maximum Data Transfer Rate: 133MB/sec Product Length: 75.5 mm Support for 48-bit Logical Block Addressing (LBA) Supports 2.5" , 3.5" , and 5.25" SATA Drives

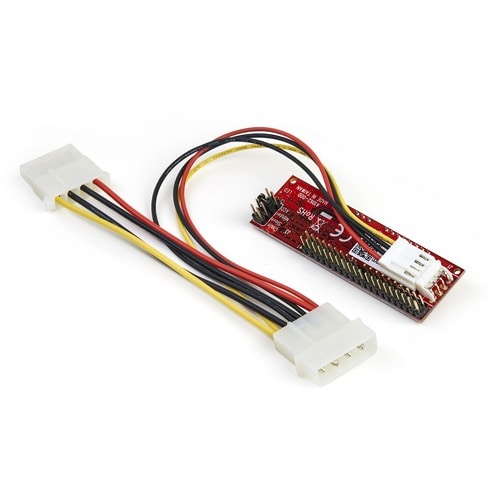

Package Contents	40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD 1 x LP4 Molex to SP4 Power Cable 1 x Instruction Manual
Compatibility	Blu-ray drive DVD drive CD-ROM drive
Certifications & Standards	CE FCC
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
	Waste Electrical and Electronic Equipment Directive (WEEE)
