About the product

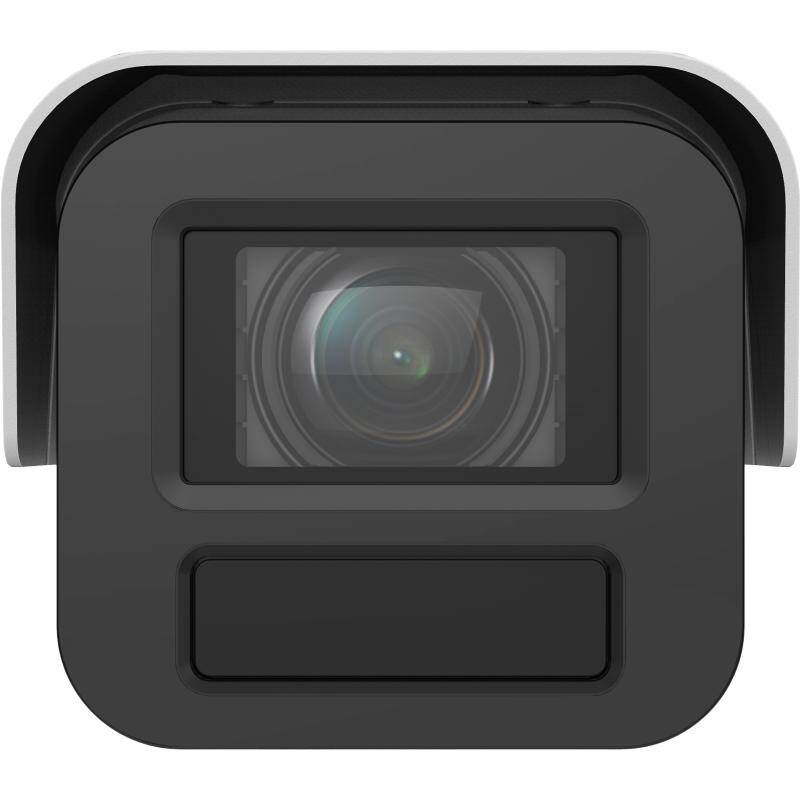

The Hikvision DeepinView Motorized Varifocal Bullet Camera is the ultimate solution for automated security systems with embedded deep learning algorithms like facial detection, crowd grading, target capture and tracking; and even advanced outputs like gender, age and expression on selected individuals. Automatic facial detection and brightening ensures crystal-clear recording and extremely accurate recognition and accurate subject identification.
Perimeter protection and multi-target-type recognition ensures constant protection of designated areas for both human and vehicle targets, and precise sorting algorithms detect, sort and remember information like vehicle type, faces, clothing colour, etc.
Automatic tracking and motorized varifocal lens with gyroscopically-stabilized image output is perfect for higher-security or remote setups where camera operators aren’t present. Ideal for remote properties and sites, event security, vestibules, and more. With the Hikvision app, users can view live surveillance footage in real-time from anywhere when the camera is installed with compatible hardware/networks.
High quality 4MP, 2688 × 1520 video recording delivers crisp imaging, while the 25x autofocus optical zoom captures ultra-clear detail at a distance without losing fidelity like fixed-lens camera zooming—allowing clear detail on subjects as far away as 656’ away, even at night. Strong backlight 140 dB WDR technology ensures proper light balance even in harsh or direct light, and IR night-time recording ensures 24/7 security. Built-in heater on the front of the camera ensures low-maintenance indoor/outdoor operation, any time of the year.
IDS-2CD7A45G0-IZHSY Specs and Details
- Image Sensor: 1/2.5"" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Shutter Time: 1 s to 1/30,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
- Focal Length & FOV: 4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3°
- Focusing: Auto, Semi-auto, Manual
- Iris Type: P-iris
- Aperture: 4.7 to 118 mm: F1.6 to F3.8
- Supplement Light Type: IR
- Supplement Light Range: Up to 200 m
- Smart Supplement Light: Yes
- Video Bit Rate: 32 Kbps to 8 Mbps
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
- Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Video Output: 1 Vp-p Composite Output (75 ?/CVBS) (Only for debugging)
- Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Audio I/O: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm I/O: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- Basic Events: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis, vibration detection
- Smart Events: scene change detection, audio exception detection, defocus detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Deep Learning Functions: Multi-target-type Detection (Supports simultaneous detection and capture of human body, face, and vehicle.) Captures 7 face features, 13 human body features, 2 vehicle features. Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle. Supports dynamic mosaic mask.
- Power: 12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block, 24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W
- Material: Aluminum alloy body
- Dimensions: Ø140 mm × 378.4 mm (Ø5.5"" × 14.9"")
- Approvals: EMC, FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- Environmental certifications: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002, Anti-Corrosion Protection, NEMA 4X (NEMA 250-2018)
Technical Specifications
The Hikvision DeepinView Motorized Varifocal Bullet Camera is the ultimate solution for automated security systems with embedded deep learning algorithms like facial detection, crowd grading, target capture and tracking; and even advanced outputs like gender, age and expression on selected individuals. Automatic facial detection and brightening ensures crystal-clear recording and extremely accurate recognition and accurate subject identification.
Perimeter protection and multi-target-type recognition ensures constant protection of designated areas for both human and vehicle targets, and precise sorting algorithms detect, sort and remember information like vehicle type, faces, clothing colour, etc.
Automatic tracking and motorized varifocal lens with gyroscopically-stabilized image output is perfect for higher-security or remote setups where camera operators aren’t present. Ideal for remote properties and sites, event security, vestibules, and more. With the Hikvision app, users can view live surveillance footage in real-time from anywhere when the camera is installed with compatible hardware/networks.
High quality 4MP, 2688 × 1520 video recording delivers crisp imaging, while the 25x autofocus optical zoom captures ultra-clear detail at a distance without losing fidelity like fixed-lens camera zooming—allowing clear detail on subjects as far away as 656’ away, even at night. Strong backlight 140 dB WDR technology ensures proper light balance even in harsh or direct light, and IR night-time recording ensures 24/7 security. Built-in heater on the front of the camera ensures low-maintenance indoor/outdoor operation, any time of the year.
IDS-2CD7A45G0-IZHSY Specs and Details
- Image Sensor: 1/2.5"" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Shutter Time: 1 s to 1/30,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
- Focal Length & FOV: 4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3°
- Focusing: Auto, Semi-auto, Manual
- Iris Type: P-iris
- Aperture: 4.7 to 118 mm: F1.6 to F3.8
- Supplement Light Type: IR
- Supplement Light Range: Up to 200 m
- Smart Supplement Light: Yes
- Video Bit Rate: 32 Kbps to 8 Mbps
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
- Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Video Output: 1 Vp-p Composite Output (75 ?/CVBS) (Only for debugging)
- Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Audio I/O: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm I/O: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- Basic Events: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis, vibration detection
- Smart Events: scene change detection, audio exception detection, defocus detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Deep Learning Functions: Multi-target-type Detection (Supports simultaneous detection and capture of human body, face, and vehicle.) Captures 7 face features, 13 human body features, 2 vehicle features. Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle. Supports dynamic mosaic mask.
- Power: 12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block, 24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W
- Material: Aluminum alloy body
- Dimensions: Ø140 mm × 378.4 mm (Ø5.5"" × 14.9"")
- Approvals: EMC, FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- Environmental certifications: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002, Anti-Corrosion Protection, NEMA 4X (NEMA 250-2018)
