About the product

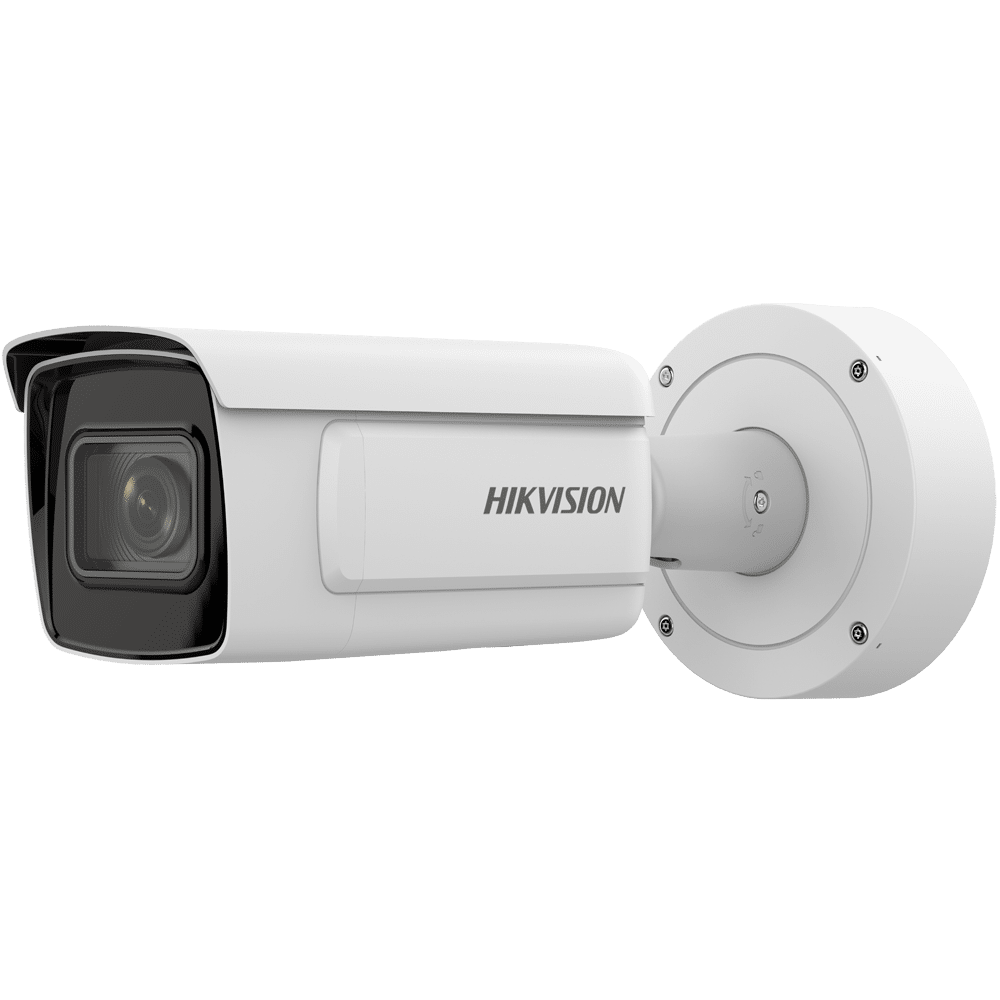

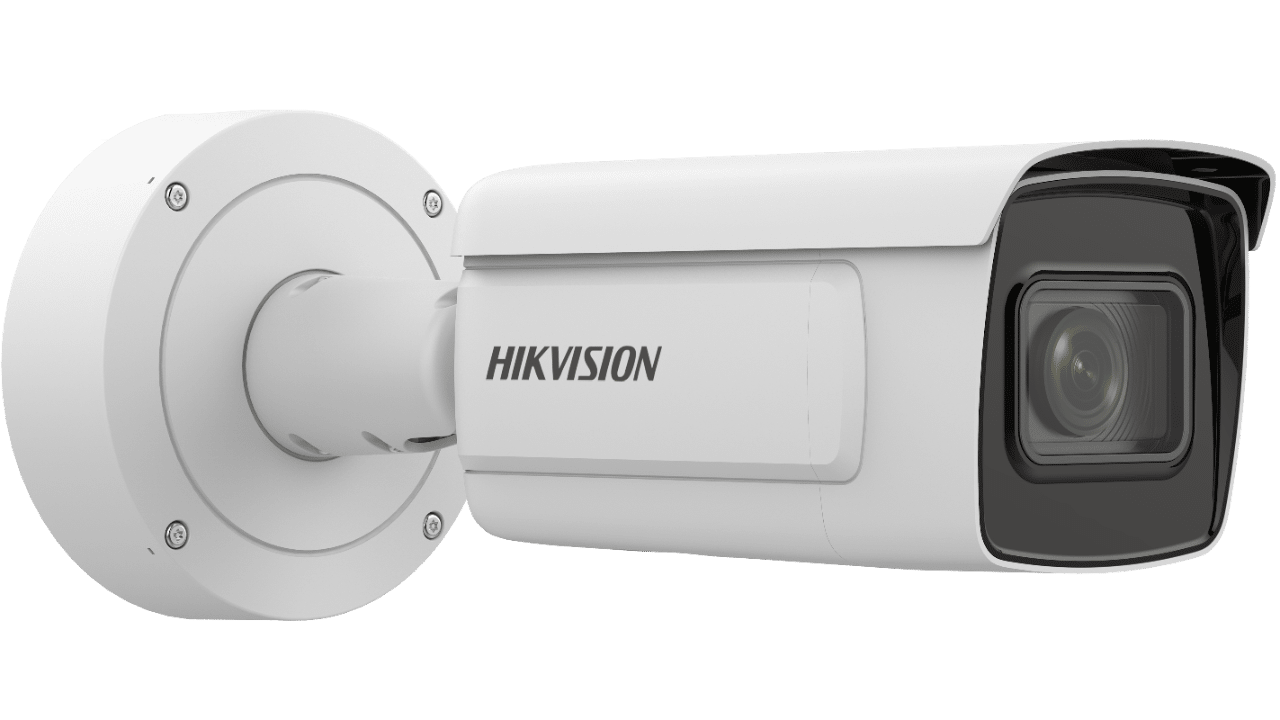

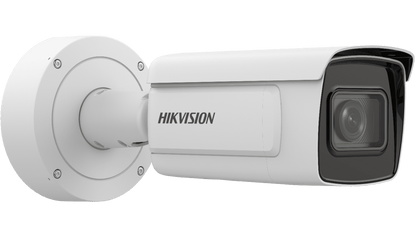

Hikvision 4MP DeepinView LPR Moto Varifocal Bullet Camera, 8-32mm Overview
With embedded deep learning-based license plate capture and recognition algorithms, the camera alone can achieve plate capture and recognition. The algorithm enjoys the high recognition accuracy of common plates and complex-structured plates, which is a great step forward compared to traditional algorithms. Blocklist and allowlist are available for plate categorization and separate alarm triggering.
Hikvision 4MP DeepinView Bullet Camera Features
- High-quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong backlight due to 140 dB WDR technology
- License Plate Recognition
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal-proof (IK10)
Hikvision 4MP DeepinView Bullet Camera Specifications
- Camera
- Image Sensor: 1/1.8"" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination:
- Color: 0.0005 Lux @ (F1.2, AGC ON);
- B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
- Day & Night:
- IR cut filter
- Blue glass module to reduce ghost phenomenon
- Lens
- Focal Length & FOV:
- 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
- 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
- Focus: Auto, semi-auto, manual
- Iris Type: P-iris
- Aperture:
- 2.8 to 12 mm: F1.2 to F2.5
- 8 to 32 mm: F1.7 to F1.73
- Focal Length & FOV:
- DORI
- DORI
- Wide:
- 2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
- 8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
- Tele:
- 2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
- 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
- Wide:
- DORI
- Illuminator
- Supplement Light Type: IR
- Supplement Light Range:
- 2.8 to 12 mm: 50 m
- 8 to 32 mm: 100 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream:
- 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream:
- 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream:
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream:
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fifth Stream:
- 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG,
- Third stream: H.265/H.264,
- Fourth stream: H.265/H.264/MJPEG,
- Fifth stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.265 and H.264 encoding
- Region Of Interest (ROI): 4 fixed regions for each stream
- Target Cropping: Yes
- Main Stream:
- Audio
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage:
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Together with a high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser:
- Plug-in required live view: IE8+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
- Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
- Wide Dynamic Range (WDR): 140 dB
- SNR: ? 52 dB
- Image Enhancement: BLC, HLC, Defog, 3D DNR
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit BMP format
- Image Stabilization: EIS
- Interface
- Video Output: 1 Vp-p Composite Output (75 ?/CVBS) (Only for debugging)
- Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Audio: With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
- Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485: With -Y: 1 RS-485 (half-duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key: Yes
- Power Output: With -Y: 12 VDC, max. 100 mA
- Wiegand: -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
- Event
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send an email, trigger alarm output, trigger recording, trigger capture, audible warning
- Deep Learning Function
- Perimeter Protection:
- Line crossing, intrusion, region entrance, region exiting
- Support alarm triggering by specified target types
- Road Traffic And Vehicle Detection:
- Blocklist and allowlist: up to 10,000 records
- Support license plate recognition of motorcycles (only in checkpoint scenarios)
- Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
- License plate recognition rate ?98%
- Metadata: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
- Perimeter Protection:
- General
- Power:
- 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
- PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
- Dimension:
- Without -Y: Ø144 × 347 mm (Ø5.7"" × 13.7\"")
- With -Y: Ø140 × 351 mm (Ø5.5 × 13.8\"")
- Package Dimension:
- 405 × 190 × 180 mm (15.9"" × 7.5"" × 7.1"")
- Approx. 1950 g (4.2 lb.)
- With Package Weight: Approx. 3070 g (6.7 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages:
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Power:
- Approval
- EMC
- FCC (47 CFR Part 15, Subpart B);
- CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
- RCM (AS/NZS CISPR 32: 2015);
- IC (ICES-003: Issue 7);
- KC (KN 32: 2015, KN 35: 2015)
- Safety
- UL (UL 62368-1);
- CB (IEC 62368-1:2014+A11);
- CE-LVD (EN 62368-1:2014/A11:2017);
- BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
- LOA (IEC/EN 60950-1)
- Environment
- CE-RoHS (2011/65/EU);
- WEEE (2012/19/EU);
- Reach (Regulation (EC) No 1907/2006)
- Protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
- Anti-Corrosion Protection: With -Y: NEMA 4X(NEMA 250-2018)
- Automotive And Railway: EN50121-4
- Other: PVC FREE
- EMC
