Advantech IDS-3206 7\" Class LCD Touchscreen Monitor - 25 ms

Name: Advantech IDS-3206 7\" Class LCD Touchscreen Monitor - 25 ms
Brand: Advantech
SKU: 335709DIN
Price: 460.07 CAD
Availability: OutOfStock

$460.07 CAD

~~$515.28 CAD~~ $460.07 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Advantech IDS-3206 7\" Class LCD Touchscreen Monitor - 25 ms - 6.5\" Viewable - 4-wire Resistive - 640 x 480 - XGA - 16.2 Million Colors - 800 cd/m² - LED Backlight - DVI - USB - VGA - 2 Year

VPNIDS-3206G-80VGA1E SKU:335709DIN UPC:

With 4-wire Resistive touch technology, the top & bottom sheets measure each other's voltages and based on the sensors, can determine the location point of touch
LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
View your content easily in well-lit areas with 800 cd/m² brightness

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

$Advantech IDS-3206 7\" Class LCD Touchscreen Monitor - 25 ms$

About the product

With 4-wire Resistive touch technology, the top & bottom sheets measure each other's voltages and based on the sensors, can determine the location point of touch

LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio

View your content easily in well-lit areas with 800 cd/m² brightness

VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Technical Specifications

Power Description
Operating Power Consumption	36 W
Touchscreen Information
Touchscreen Type	4-wire Resistive

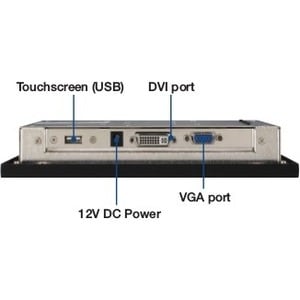

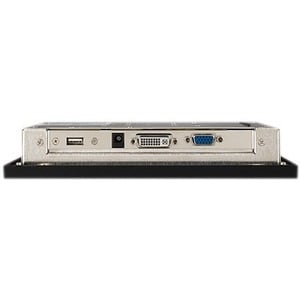

Interfaces/Ports
USB	Yes
DVI	Yes
VGA	Yes
Number of USB Ports	1
Miscellaneous
Package Contents	6.5" VGA Industrial Panel Mount Monitor 1 x M Cable USB-A(M)/USB-A(M) 180CM 1 x VGA cable 15P(M) 1.8 meter 4 x Clamper 4 x Screw of clamper M4_25L
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Video
Brightness	800 cd/m²
Color Supported	16.2 Million Colors
Maximum Resolution	640 x 480
Native Contrast Ratio	600:1
Physical Characteristics
Weight (Approximate)	2.65 lb (1200 g)
Height	6.76" (171.80 mm)
Width	8.62" (219 mm)
Depth	1.48" (37.66 mm)

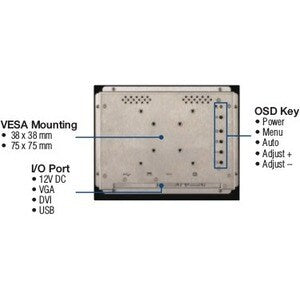

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Technical Information
Response Time	25 ms

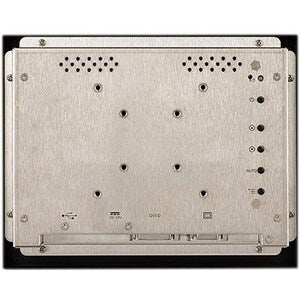

Mount Type	Rear Mount
Viewable Screen Size	6.5"
Screen Mode	XGA
Backlight Technology	LED
Screen Size Class	7"
General Information
Product Type	LCD Touchscreen Monitor
Manufacturer Part Number	IDS-3206G-80VGA1E
Manufacturer Website Address	http://www.advantech.com
Manufacturer	Advantech Co., Ltd
Product Model	IDS-3206
Product Name	6.5" VGA Industrial Panel Mount Monitor
Brand Name	Advantech
