About the product

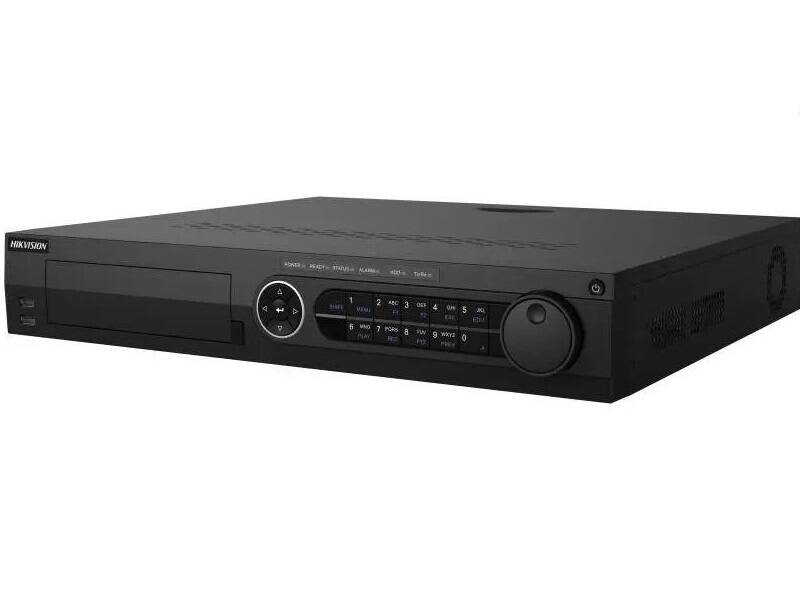

The Hikvision AcuSense Pro Series 16-Channel H.265 Ultra High Definition DVR is an advanced 16-camera DVR for up to 16 analog cameras and up to 34 network camera inputs—allowing users to integrate BNC-style CCTV cameras and specialty legacy equipment alongside modern IP cameras on a single system. Featuring four SATA interfaces with RAID 0, 1, 5, 6, and 10, the AcuSense Pro Series DVR is capable of scaling up to extremely large, multi-camera setups, or scaling down to more essential security systems with additional data backup redundancies; security-rated hard drives up to 12TB are supported, allowing for up to 48TB of on-board storage expansion (hard drive sold separately).
H.265 video compression paired with full channel recording up to 8MP ensures crystal clear video from supported high-definition cameras (analog or digital), and POS triggered recording data ensures accurate and high detailed transaction monitoring even on legacy CCTV systems without extant smart functionality.
Supports HDTVI, AHD, CVI, CVBS via BNC as well as networked IP cameras; up to 8MP @ 8 fps or 5MP @ 12 fps encoding. Built-in HDMI output can display live or recorded video up to 4K UHD natively, as well as simultaneous output from the additional HDMI and VGA outputs of up to 16-channels (synchronous). Hik-Connect and DDNS management allows for easy remote network management and configuration; transforming older analog on-site CCTV setups into powerful networked systems without incurring major installation costs.
IDS-7316HUHI-M4/S Specs and Features
- 16-channel analog video DVR with 34-channel network camera inputs
- Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video input: 16-ch BNC interface (1.0 Vp-p, 75?), supporting coaxitron connection
- Frame rate: 8MP @ 8 fps / 3K @ 12 fps / 5MP @ 12 fps / 4MP @ 15 fps / 3MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 30 fps (NTSC)
- Video output: Up to 4K on HDMI 2, up to 1080p on HDMI 1, up to 1080p on VGA
- Video output mode: HDMI 1 & VGA simultaneous; HDMI 2 & VGA independent
- Video bitrate: 32 Kbps – 10 Mbps
- Audio input: 4-ch, RCA (2.0 Vp-p, 1?)
- Audio output: 2-ch, RCA (Linear, 1?)
- Audio compression: G.711u
- Audio bitrate: 64 Kbps
- Two-way audio supported (with compatible hardware), 1-ch output (2.0 Vp-p, 1?)
- Supports up to 128 remote connections
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- 4x SATA bays (up to 12TB per hard drive), 1x eSata port
- 1x RS-232, 1x RS-485 (full-duplex) serial inputs
- 2x USB 2.0 (front panel), 1x USB 3.0 (back panel)
- Alarm in/out: 16 in, 4 out
- Power Supply: 100-240 VAC, 50-60 Hz
- Operating environment: -10 °C to 55 °C (14 °F to 131 °F), 10-90% humidity (non-condensing)
- Dimensions (W × D × H): 445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inch)
- Weight: ? 5 kg (without HDD, 11.0 lb.)
Technical Specifications
The Hikvision AcuSense Pro Series 16-Channel H.265 Ultra High Definition DVR is an advanced 16-camera DVR for up to 16 analog cameras and up to 34 network camera inputs—allowing users to integrate BNC-style CCTV cameras and specialty legacy equipment alongside modern IP cameras on a single system. Featuring four SATA interfaces with RAID 0, 1, 5, 6, and 10, the AcuSense Pro Series DVR is capable of scaling up to extremely large, multi-camera setups, or scaling down to more essential security systems with additional data backup redundancies; security-rated hard drives up to 12TB are supported, allowing for up to 48TB of on-board storage expansion (hard drive sold separately).
H.265 video compression paired with full channel recording up to 8MP ensures crystal clear video from supported high-definition cameras (analog or digital), and POS triggered recording data ensures accurate and high detailed transaction monitoring even on legacy CCTV systems without extant smart functionality.
Supports HDTVI, AHD, CVI, CVBS via BNC as well as networked IP cameras; up to 8MP @ 8 fps or 5MP @ 12 fps encoding. Built-in HDMI output can display live or recorded video up to 4K UHD natively, as well as simultaneous output from the additional HDMI and VGA outputs of up to 16-channels (synchronous). Hik-Connect and DDNS management allows for easy remote network management and configuration; transforming older analog on-site CCTV setups into powerful networked systems without incurring major installation costs.
IDS-7316HUHI-M4/S Specs and Features
- 16-channel analog video DVR with 34-channel network camera inputs
- Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video input: 16-ch BNC interface (1.0 Vp-p, 75?), supporting coaxitron connection
- Frame rate: 8MP @ 8 fps / 3K @ 12 fps / 5MP @ 12 fps / 4MP @ 15 fps / 3MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 30 fps (NTSC)
- Video output: Up to 4K on HDMI 2, up to 1080p on HDMI 1, up to 1080p on VGA
- Video output mode: HDMI 1 & VGA simultaneous; HDMI 2 & VGA independent
- Video bitrate: 32 Kbps – 10 Mbps
- Audio input: 4-ch, RCA (2.0 Vp-p, 1?)
- Audio output: 2-ch, RCA (Linear, 1?)
- Audio compression: G.711u
- Audio bitrate: 64 Kbps
- Two-way audio supported (with compatible hardware), 1-ch output (2.0 Vp-p, 1?)
- Supports up to 128 remote connections
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- 4x SATA bays (up to 12TB per hard drive), 1x eSata port
- 1x RS-232, 1x RS-485 (full-duplex) serial inputs
- 2x USB 2.0 (front panel), 1x USB 3.0 (back panel)
- Alarm in/out: 16 in, 4 out
- Power Supply: 100-240 VAC, 50-60 Hz
- Operating environment: -10 °C to 55 °C (14 °F to 131 °F), 10-90% humidity (non-condensing)
- Dimensions (W × D × H): 445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inch)
- Weight: ? 5 kg (without HDD, 11.0 lb.)
