About the product

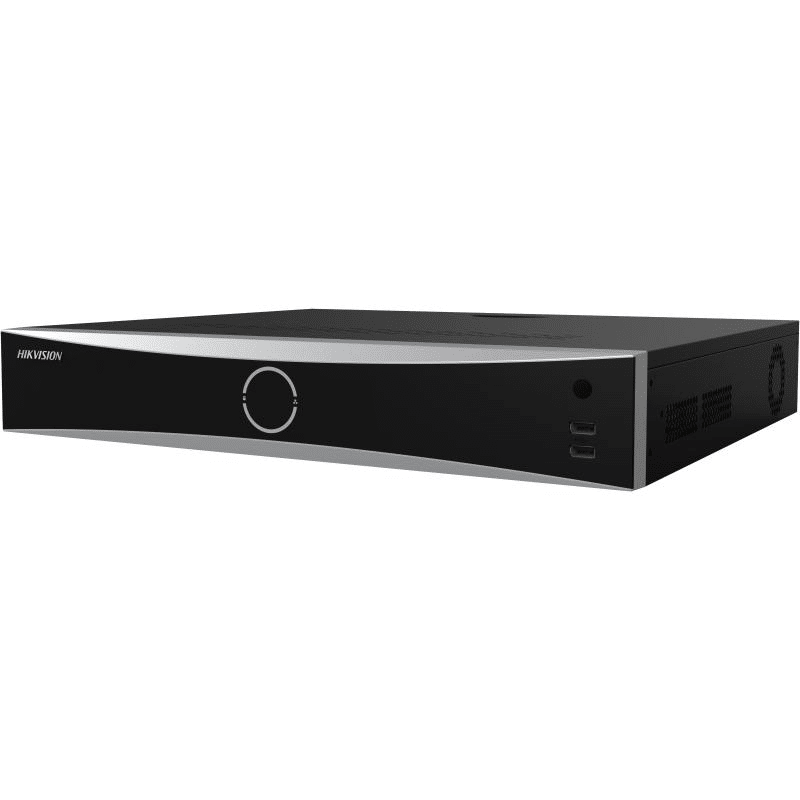

16-ch 1.5U 16 PoE 8K DeepinMind NVR Features:
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP cameras can be connected, plug & play with 16 power-over-Ethernet (PoE) interfaces
- Intelligent analytics based on deep learning algorithm
- Up to 16-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
- Up to 12-ch video structuralization
16-ch 1.5U 16 PoE 8K DeepinMind NVR Specifications:
- Intelligent Analytics
- AI By NVRFacial recognition, perimeter protection, video structuralization, throwing objects from building
- AI By CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA
- Engine2, each engine can run an intelligent algorithm, engine mode is adjustable
- Facial Recognition
- Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ? 4 MB, total capacity ? 20 GB)
- Face Picture Comparison (Captured From Camera): 16-ch (8-ch for each engine); Comparison speed: 48 pictures per second
- Facial Detection And Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP
- Perimeter Protection
- By NVR24-ch 2 MP (12-ch for each engine), up to 8 MP
- By CameraAll channels
- Video Structuralization
- Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
- Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ? 4 MB, total capacity ? 20 GB)
- Face Picture Comparison: 16-ch; Comparison speed: 32 pictrues per second
- Throwing Objects From Building
- By NVR16-ch 2 MP (8-ch for each engine), up to 8 MP
- By CameraAll channels
- ANPR
- By CameraAll channels
- Plate AttributesVehicle brand, vehicle color, vehicle type
- Vehicle AttributesPlate number, license plate color, license plate type
- Video And Audio
- IP Video Input: 16-ch, Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- ncoming Bandwidth256 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
- VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- IP Video Input: 16-ch, Up to 32 MP resolution
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)
- Synchronous Playback16-ch
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
- Power? 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA4 SATA interfaces; 3.5-inch HDD
- ESATA1 eSATA interface
- CapacityUp to 14 TB capacity for each HDD
- Serial Interface1 RS-232, 2 RS-485 (full-duplex), 1 keyboard
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption? 50 W (without HDD and PoE off)
- Working Temperature-10 to 55° C (14 to 131° F)
- Working Humidity10 to 90%
- Dimension (W × D × H)445 × 400 ×71 mm ( 17.5""× 15.7"" × 2.8"")
- Weight? 5 kg (without HDD, 11 lb.)
- Certification
- Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CE
- EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
- 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
Technical Specifications
16-ch 1.5U 16 PoE 8K DeepinMind NVR Features:
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP cameras can be connected, plug & play with 16 power-over-Ethernet (PoE) interfaces
- Intelligent analytics based on deep learning algorithm
- Up to 16-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
- Up to 12-ch video structuralization
16-ch 1.5U 16 PoE 8K DeepinMind NVR Specifications:
- Intelligent Analytics
- AI By NVRFacial recognition, perimeter protection, video structuralization, throwing objects from building
- AI By CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA
- Engine2, each engine can run an intelligent algorithm, engine mode is adjustable
- Facial Recognition
- Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ? 4 MB, total capacity ? 20 GB)
- Face Picture Comparison (Captured From Camera): 16-ch (8-ch for each engine); Comparison speed: 48 pictures per second
- Facial Detection And Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP
- Perimeter Protection
- By NVR24-ch 2 MP (12-ch for each engine), up to 8 MP
- By CameraAll channels
- Video Structuralization
- Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
- Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ? 4 MB, total capacity ? 20 GB)
- Face Picture Comparison: 16-ch; Comparison speed: 32 pictrues per second
- Throwing Objects From Building
- By NVR16-ch 2 MP (8-ch for each engine), up to 8 MP
- By CameraAll channels
- ANPR
- By CameraAll channels
- Plate AttributesVehicle brand, vehicle color, vehicle type
- Vehicle AttributesPlate number, license plate color, license plate type
- Video And Audio
- IP Video Input: 16-ch, Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- ncoming Bandwidth256 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
- VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- IP Video Input: 16-ch, Up to 32 MP resolution
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)
- Synchronous Playback16-ch
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
- Power? 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA4 SATA interfaces; 3.5-inch HDD
- ESATA1 eSATA interface
- CapacityUp to 14 TB capacity for each HDD
- Serial Interface1 RS-232, 2 RS-485 (full-duplex), 1 keyboard
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption? 50 W (without HDD and PoE off)
- Working Temperature-10 to 55° C (14 to 131° F)
- Working Humidity10 to 90%
- Dimension (W × D × H)445 × 400 ×71 mm ( 17.5""× 15.7"" × 2.8"")
- Weight? 5 kg (without HDD, 11 lb.)
- Certification
- Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CE
- EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
- 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
