About the product

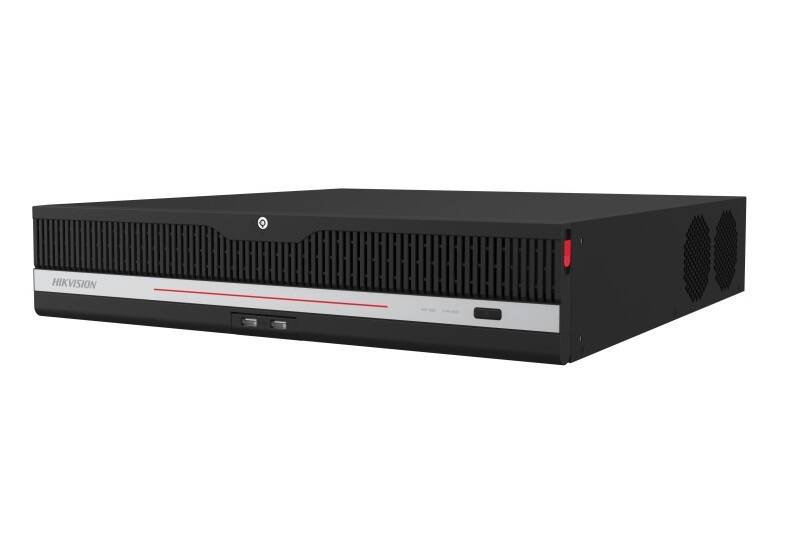

The Hikvision DeepinMind 32-channel 2U 8K NVR is a powerful, 32-channel advanced network video recorder capable of top-of-the-line 8K video recording alongside a suite of powerful security features suited for large-scale video surveillance systems. The DeepinMind algorithm unlocks intelligent analytics (with supported cameras) allowing users powerful tools like facial recognition support of up to 10,000,000 unique facial IDs.
Other features like perimeter protection, video structuralization for individual target capture and analytics, simplified AcuSearch video options for quick and precise footage scrubbing, and built-in alarm in/out functionality extends the surveillance options of any camera system with the ability to integrate into a traditional panel alarm system or surveillance centre.
Support for up to 8 IP speakers and full two-way audio allows for connected users to monitor and address extremely large properties like parking garages, malls, multi-unit properties and more. Crystal clear 8K resolution from high-end cameras are captured in full fidelity, and uncompromising H.265+ compression ensures high-quality, low-sized video files without heavy compression or storage-hungry filesizes.
Supports a wide variety of Hikvision technologies, including AcuSense (including people counting, vehicle/person detection and analytics), ColorVu, motion/perimeter detection, ANPR, VCA and more. Support for LargeModel analytics reduces false alarms and can accurately detect, identify and compare subjects; reducing the amount of false alarms and non-human/vehicle motion events.
IDS-9632NXI-M8/X Specs and Features
- IP Video Input: 32-ch, up to 32 MP resolution *NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps
- HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
- HDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p
- VGA 1 Output: 1920 × 1080/60Hz
- VGA 2 Output: 1920 × 1080/60Hz
- Video Output Mode: HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output, CVBS Output, 1-ch, BNC (1.0 Vp-p, 75 ?), 704 × 480
- Audio Output: 2-ch, RCA (Linear, 1 K?)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k ?)
- Decoding Format: H.265/H.265+/H.264/H.264+
- Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
- Synchronous Playback: 16-ch
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
- Remote Connections: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access Protocol: ONVIF(Version 2.5), RTSP
- AI by NVR: Facial recognition, perimeter protection, video structuralization, AcuSearch
- AI by Camera: Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
- Engine: 2, each engine can run an intelligent algorithm, engine mode is adjustable
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library: Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ? 4 MB, total capacity ? 20 GB)
- Face Picture Comparison (Captured from Camera): 32-ch (16-ch for each engine);
- Comparison speed: 48 pictures per second
- Facial Detection and Analytics Performance: 16-ch 2 MP (8-ch for each engine), up to 8 MP
- AcuSearch By Camera: All channels, up to 691,200 targets/day (The camera should enable AcuSearch function)
- AcuSearch By NVR: up to 8-ch, up to 691,200 targets/day
- Perimeter Protection By NVR: perimeter protection powered by LargeModel : 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP
- Perimeter protection without LargeModel : 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
- Perimeter Protection By Camera: perimeter protection powered by LargeModel with AcuSense cameras: All channels
- Video Structuralization: Structured Analysis 12-ch 2 MP (6-ch for each engine), up to 8 MP
- ANPR By Camera: All channels
- Plate Attributes: Plate number, license plate color, license plate type
- Vehicle Attributes: Vehicle brand, vehicle color, vehicle type
- RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
- Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
- DC 12V: 12 VDC, 1 A power output
- SATA: 8 SATA interfaces; 3.5-inch HDD
- eSATA: 1 eSATA interface
- Capacity: Up to 16 TB capacity for each disk
- Serial Interface: 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/9
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ? 50 W (without HDD)
- Working Temperature: -10 to 55° C (14 to 131° F)
- Working Humidity: 10 to 90%
- Dimensions (W × D × H): 445 × 465 × 93 mm ( 17.5""× 18.3"" × 3.7"")
- Weight: ? 10 kg (without HDD, 28.7 lb.)
- Obtained Certifications: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN55035:2017+A11:2020
Technical Specifications
The Hikvision DeepinMind 32-channel 2U 8K NVR is a powerful, 32-channel advanced network video recorder capable of top-of-the-line 8K video recording alongside a suite of powerful security features suited for large-scale video surveillance systems. The DeepinMind algorithm unlocks intelligent analytics (with supported cameras) allowing users powerful tools like facial recognition support of up to 10,000,000 unique facial IDs.
Other features like perimeter protection, video structuralization for individual target capture and analytics, simplified AcuSearch video options for quick and precise footage scrubbing, and built-in alarm in/out functionality extends the surveillance options of any camera system with the ability to integrate into a traditional panel alarm system or surveillance centre.
Support for up to 8 IP speakers and full two-way audio allows for connected users to monitor and address extremely large properties like parking garages, malls, multi-unit properties and more. Crystal clear 8K resolution from high-end cameras are captured in full fidelity, and uncompromising H.265+ compression ensures high-quality, low-sized video files without heavy compression or storage-hungry filesizes.
Supports a wide variety of Hikvision technologies, including AcuSense (including people counting, vehicle/person detection and analytics), ColorVu, motion/perimeter detection, ANPR, VCA and more. Support for LargeModel analytics reduces false alarms and can accurately detect, identify and compare subjects; reducing the amount of false alarms and non-human/vehicle motion events.
IDS-9632NXI-M8/X Specs and Features
- IP Video Input: 32-ch, up to 32 MP resolution *NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps
- HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
- HDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p
- VGA 1 Output: 1920 × 1080/60Hz
- VGA 2 Output: 1920 × 1080/60Hz
- Video Output Mode: HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output, CVBS Output, 1-ch, BNC (1.0 Vp-p, 75 ?), 704 × 480
- Audio Output: 2-ch, RCA (Linear, 1 K?)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k ?)
- Decoding Format: H.265/H.265+/H.264/H.264+
- Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
- Synchronous Playback: 16-ch
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
- Remote Connections: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access Protocol: ONVIF(Version 2.5), RTSP
- AI by NVR: Facial recognition, perimeter protection, video structuralization, AcuSearch
- AI by Camera: Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
- Engine: 2, each engine can run an intelligent algorithm, engine mode is adjustable
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library: Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ? 4 MB, total capacity ? 20 GB)
- Face Picture Comparison (Captured from Camera): 32-ch (16-ch for each engine);
- Comparison speed: 48 pictures per second
- Facial Detection and Analytics Performance: 16-ch 2 MP (8-ch for each engine), up to 8 MP
- AcuSearch By Camera: All channels, up to 691,200 targets/day (The camera should enable AcuSearch function)
- AcuSearch By NVR: up to 8-ch, up to 691,200 targets/day
- Perimeter Protection By NVR: perimeter protection powered by LargeModel : 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP
- Perimeter protection without LargeModel : 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
- Perimeter Protection By Camera: perimeter protection powered by LargeModel with AcuSense cameras: All channels
- Video Structuralization: Structured Analysis 12-ch 2 MP (6-ch for each engine), up to 8 MP
- ANPR By Camera: All channels
- Plate Attributes: Plate number, license plate color, license plate type
- Vehicle Attributes: Vehicle brand, vehicle color, vehicle type
- RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
- Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
- DC 12V: 12 VDC, 1 A power output
- SATA: 8 SATA interfaces; 3.5-inch HDD
- eSATA: 1 eSATA interface
- Capacity: Up to 16 TB capacity for each disk
- Serial Interface: 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/9
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ? 50 W (without HDD)
- Working Temperature: -10 to 55° C (14 to 131° F)
- Working Humidity: 10 to 90%
- Dimensions (W × D × H): 445 × 465 × 93 mm ( 17.5""× 18.3"" × 3.7"")
- Weight: ? 10 kg (without HDD, 28.7 lb.)
- Obtained Certifications: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN55035:2017+A11:2020
