About the product

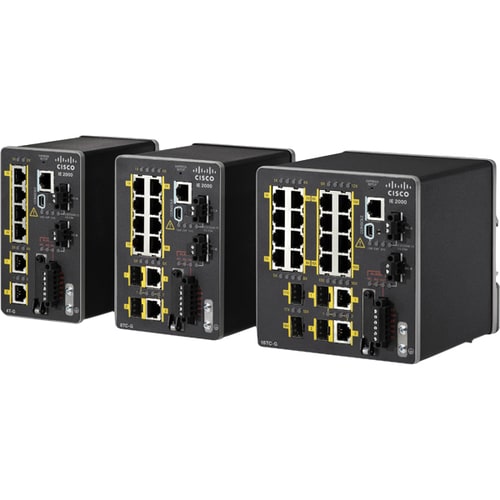

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rail mounting is ideal for factory areas, in vehicles and marine applications
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 20 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 20 ports
Technical Specifications
| Network & Communication | |
| Layer Supported | 2 |
| Reliability | |
| MTBF | 374052 Hour |
| Management & Protocols | |
| Management |
|
| Manageable | Yes |
| Miscellaneous | |
| Certifications & Standards | IEEE Standards:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Power Source | Power Supply |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 4.0 |
| Memory | |
| Flash Memory | 64 MB |
| Standard Memory | 256 MB |
| Memory Technology | DRAM |
| Memory Card Supported | SD |
| Physical Characteristics | |
| Weight (Approximate) | 4.35 lb (1973.126810 g) |
| Form Factor | Rail-mountable |
| Height | 5.10" (129.54 mm) |
| Width | 5" (127 mm) |
| Depth | 5.26" (133.60 mm) |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 10/100Base-TX | |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Fast Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE-2000-16TC-G-N |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-2000-16TC-G-N |
| Product Name | IE-2000-16TC-G-N Ethernet Switch |
| Product Series | IE-2000 |
| Brand Name | Cisco |
| Interfaces/Ports | |
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Number of Network (RJ-45) Ports | 16 |
| Uplink Port | Yes |
| Bypass | No |
| Total Number of Network Ports | 20 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| 2 x Fast Ethernet Expansion Slot | |
| 16 x Fast Ethernet Network | |
| 2 x Gigabit Ethernet Expansion Slot |
