IE 2000 SERIES 8PORT 10/100 2XT/SFP BASE WITH 1588

Name: IE 2000 SERIES 8PORT 10/100 2XT/SFP BASE WITH 1588
Brand: Cisco
SKU: 213028NDN
Price: 3443.69 CAD
Availability: OutOfStock

$3,443.69 CAD

~~$3,856.93 CAD~~ $3,443.69 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

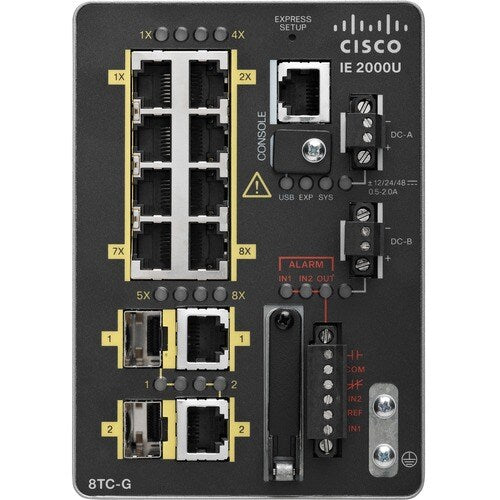

Cisco IE-2000-8TC-G-E Ethernet Switch - 10 Ports - Manageable - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - 2 SFP Slots - Twisted Pair - Rail-mountable, Desktop - 1 Year Limited Warranty

VPN:IE-2000-8TC-G-E SKU:213028NDN UPC:882658495588

Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

IE 2000 SERIES 8PORT 10/100 2XT/SFP BASE WITH 1588

About the product

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.

Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Built-in power supply to ensure all components are being supplied with accurate voltage
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
Cascade to other network devices through the uplink port to expand your local area network

Technical Specifications

Network & Communication
Layer Supported	2
Reliability
MTBF	374052 Hour
Management & Protocols
Management	Web Based Management CLI SNMP Telnet VLAN CNA DHCP CiscoWorks LAN Management Solution QoS SNMPv3
Manageable	Yes
Physical Characteristics
Form Factor	Rail-mountable
	Desktop
Miscellaneous
Certifications & Standards	Safety: UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) CE Marking Hazard: ANSI/ISA 12.12.01 (Class 1, Div 2 A-D) EN 60079-0, -15 ATEX certification (Class I, Zone 2 A-D) EMC Emission and Community: FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC -Korea CE Marking C-Tick (Australia) Russia certification Brazil certification IEC/EN61000-4-2 (Electro Static Discharge), 15kV Air/8kV Contact IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20V/m) IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10V/emf) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-29 (Voltage Dips Immunity) IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-4 Class A EN 61326 Shock and Vibration: IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine) IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal) IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration 2g@10-500Hz) IEC 60068-2-6, IEC 60068-2-64 (Non-operational Vibration) Industry: UL 508 CSA C22.2 No. 142 EN 61131-2 (Programmable Controllers) Protective Coating Substation (IEEE 1613, IEC 61850-3) KEMA Lloyd's Register Type Approval - ENV2 or ENV3 British, German Lloyds Marine (LR, BV, GL, DnV, Rina ABS, KR) RA 156-165 Mhz 24 dBuV/M - Class A is 50 dBuV/M - Marine Band Railway EN 50155 NEMA TS-2 IP30 ODVA Industrial EtherNet/IP PROFINETv2 Humidity: IEC 60068-52-2 (Salt Fog Mist, Test Kb) Marine environments IEC 60068 -2-3 IEC 60068-2-30 Corrosive Testing: ISO-12944-6 IEC-60068-2-60
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Power Description
Power Source	Power Supply
PoE (RJ-45) Port	No
Redundant Power Supply Supported	Yes
I/O Expansions
Expansion Slot Type	SFP
Number of SFP Slots	2
Shared SFP Slot	Yes
Total Number of Expansion Slots	2.0
Media & Performance
Network Technology	10/100Base-TX
Twisted Pair Cable Standard	Category 5
Ethernet Technology	Fast Ethernet
Media Type Supported	Twisted Pair
Memory
Flash Memory	64 MB
Standard Memory	256 MB
Memory Technology	DRAM
Memory Card Supported	SD
General Information
Product Type	Ethernet Switch
Manufacturer Part Number	IE-2000-8TC-G-E
Manufacturer Website Address	http://www.cisco.com
Manufacturer	Cisco Systems, Inc
Product Model	IE-2000-8TC-G-E
Product Name	IE-2000-8TC-G-E Ethernet Switch
Product Series	IE-2000
Brand Name	Cisco
Interfaces/Ports
Token Ring Port	No
LRE Port	No
USB	Yes
Number of Network (RJ-45) Ports	8
Modular	No
Management Port	Yes
Uplink Port	Yes
Stack Port	No
Bypass	No
Total Number of Network Ports	10
