Switches & Hubs
Expected delivery 3 to 7 business days (exceptions applied)
Cisco
IE 2000U 16 X 10/100 2 FE SFP 2 T/SFP GE PORTS WITH 1588
IE 2000U 16 X 10/100 2 FE SFP 2 T/SFP GE PORTS WITH 1588
Regular price
$5,251.63 CAD
Regular price
$5,881.83 CAD
Sale price
$5,251.63 CAD
Unit price
/
per
Shipping calculated at checkout.
Cisco IE-2000U-16TC-G Ethernet Switch - 20 Ports - Manageable - 10/100Base-TX, 10/100/1000Base-T - 2 Layer Supported - 4 SFP Slots - PoE Ports - Rail-mountable - 5 Year Limited Warranty
VPN:IE-2000U-16TC-G SKU:307713NDN UPC:882658638251
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Rail mounting is ideal for factory areas, in vehicles and marine applications
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
IE 2000U 16 X 10/100 2 FE SFP 2 T/SFP GE PORTS WITH 1588
Product information summary

About the product

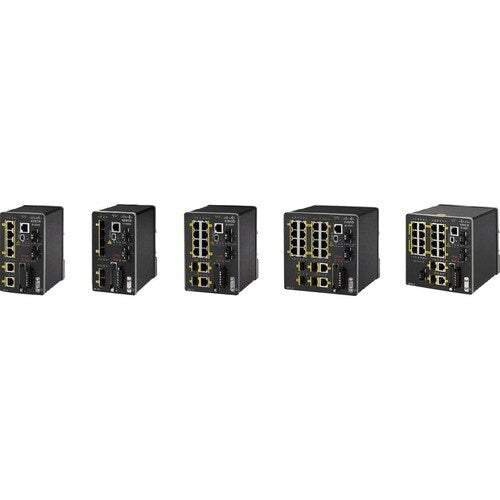

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Rail mounting is ideal for factory areas, in vehicles and marine applications
- The switch is rail mountable, you can easily install it in racks with concrete stability
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 20 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 20 ports
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
Network & Communication | |
Layer Supported | 2 |
Management & Protocols | |
Management |
|
Manageable | Yes |
Memory | |
Flash Memory | 64 MB |
Standard Memory | 256 MB |
Memory Technology | DRAM |
Miscellaneous | |
Certifications & Standards | IEEE Standards:
EMC Immunity Compliance:
|
Country of Origin | United States |
Environmentally Friendly | Yes |
Power Description | |
Power Source | Power Supply |
PoE (RJ-45) Port | Yes |
Redundant Power Supply Supported | Yes |
I/O Expansions | |
Expansion Slot Type | SFP |
Number of SFP Slots | 4 |
Shared SFP Slot | Yes |
Total Number of Expansion Slots | 4.0 |
Physical Characteristics | |
Weight (Approximate) | 4.35 lb (1973.126810 g) |
Form Factor | Rail-mountable |
Height | 5.10" (129.54 mm) |
Width | 5" (127 mm) |
Depth | 5.26" (133.60 mm) |
Media & Performance | |
Network Technology | 10/100Base-TX |
10/100/1000Base-T | |
Twisted Pair Cable Standard | Category 5 |
Ethernet Technology | Fast Ethernet |
Gigabit Ethernet | |
Media Type Supported | Twisted Pair |
General Information | |
Product Type | Ethernet Switch |
Manufacturer Part Number | IE-2000U-16TC-G |
Manufacturer Website Address | http://www.cisco.com |
Manufacturer | Cisco Systems, Inc |
Product Model | IE-2000U-16TC-G |
Product Name | IE-2000U-16TC-G Ethernet Switch |
Product Series | IE 2000U |
Brand Name | Cisco |
Interfaces/Ports | |
Token Ring Port | No |
LRE Port | No |
USB | Yes |
Number of Network (RJ-45) Ports | 20 |
Modular | No |
Management Port | No |
Uplink Port | Yes |
Stack Port | No |
Bypass | No |
Total Number of Network Ports | 20 |
Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
18 x Fast Ethernet Network | |
2 x Fast Ethernet Expansion Slot | |
2 x Gigabit Ethernet Expansion Slot |
