About the product
The Cisco Catalyst™ IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.
Product overview
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
The IE3100 Rugged Series switches offer:
- Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
- Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
- Support for Layer-2 Network Address Translation
- Robust industrial design
- Full Gigabit Ethernet switch
- Redundancy and Resiliency
- User-friendly WebUI
- Industrial automation protocols
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Reliability | |
| MTBF | 774680 Hour |
| I/O Expansions | |
| Expansion Slot Type | Uplink Module |
| Total Number of Expansion Slots | 2.0 |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 10 x Gigabit Ethernet Network |
| 2 x Gigabit Ethernet Combo Uplink | |
| Power Description | |
| Input Voltage | 9.6 V |
| 60 V | |
| 48 V | |
| 12 V | |
| Power Source | DC |
| Power Consumption | 28 W |
| Miscellaneous | |
| Application/Usage | Enterprise |
| Industrial | |
| Business | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 2.30 lb (1043.262451 g) |
| Form Factor | DIN Rail Mountable |
| Height | 5" (127 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.08" (129.03 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE31058T2CE |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |

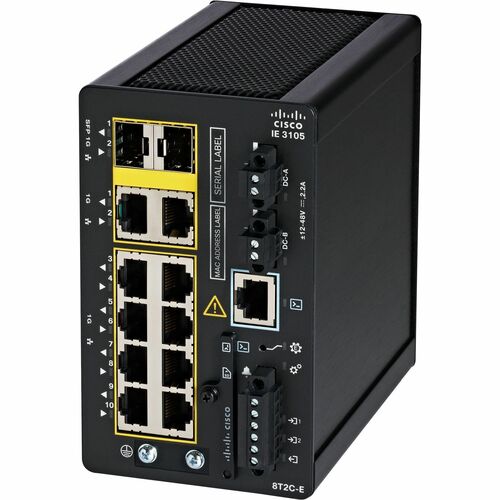

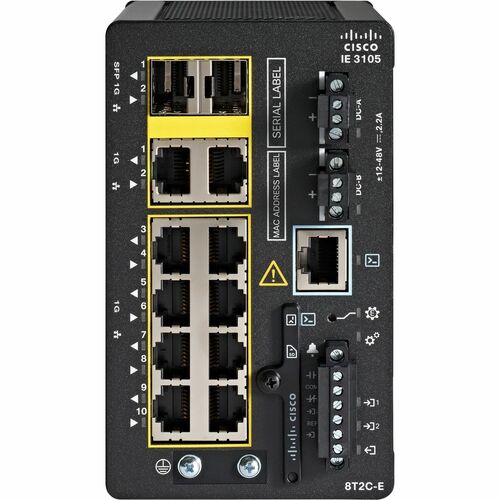

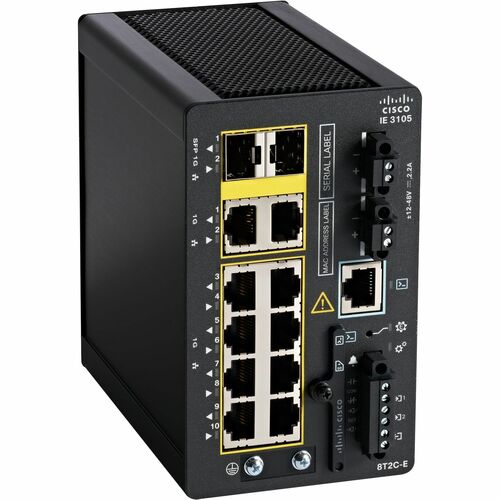

| Product Name | Catalyst IE3100 Rugged Ethernet Switch |
| Product Line | Catalyst |
| Product Series | IE3100 Rugged |
| Brand Name | Cisco |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3z |
| IEEE 802.1ab | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.3ah | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3u | |
| IEEE 802.1Q |
