About the product

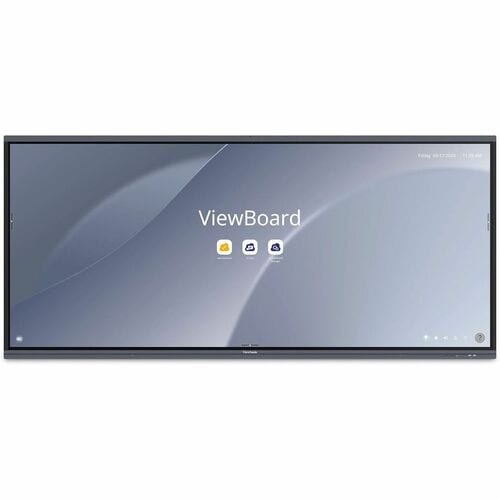

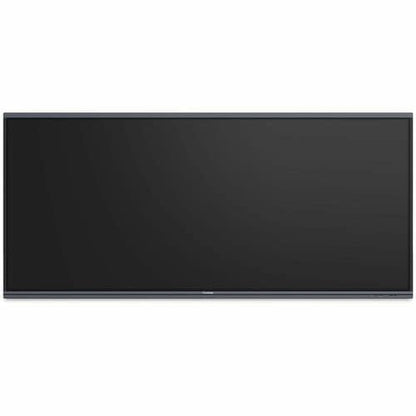

The ViewSonic® ViewBoard® IFP92UW is a 92" interactive display with next-generation whiteboard technologies ideal for collaboration in corporate environments and higher education. With seamless integration to Microsoft Teams Rooms and optimization for Front Row, this ViewBoard display promotes inclusivity and engagement for any of your team huddles, meetings and brainstorming sessions. Whether team members are in the meeting room, on video conference, or participating via chat, everyone can be seen and heard. Plus, with its ultrawide 21:9 aspect ratio and 5K resolution, this display delivers a huge interactive touchscreen and stunning visuals to boost collaboration and productivity. The high-accuracy touchscreen also features intelligent palm recognition technology for an intuitive digital whiteboard experience. A 60W soundbar with integrated microphone delivers optimal audio for everyone in the meeting room, as well as those calling in remotely.
Technical Specifications
| Software | |
| Operating System | ViewBoard OS |
| Storage | |
| Flash Memory Capacity | 128 GB |
| Warranty | |
| Additional Warranty Information | 3-year limited warranty on parts, labor and backlight, onsite warranty |
| Processor & Chipset | |
| Processor Type | Cortex A76 + A55 |
| Processor Core | Octa-core (8 Core) |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | LPDDR |
| Memory Card Supported | embedded MultiMediaCard (e.MMC) |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Consumption | 275 W |
| Touchscreen Information | |
| Touchscreen | Yes |
| Touchscreen Technology | Infrared (IrDA) |
| Multi-touch Screen | Yes |
| Number of Touch Points | 40 |
| Audio | |
| Speakers | Yes |
| Microphone | Yes |
| Number of Speakers | 3 |
| RMS Output Power | 45 W |
| Number of Microphone Array Elements | 8 |
| Network & Communication | |
| Bluetooth | Yes |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.2 |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 149.03 lb (67600 g) |
| Height | 39.37" (1000 mm) |
| Width | 86.73" (2203 mm) |
| Depth | 3.62" (92 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 1000 x 400 |
| Miscellaneous | |
| Additional Information | Operating System: ViewBoard OS based on Android 13 |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Collaboration Display |
| Manufacturer Part Number | IFP92UW |
| Manufacturer Website Address | http://www.viewsonic.com |
| Packaged Quantity | 1 |
| Manufacturer | ViewSonic Corporation |
| Product Model | IFP92UW |
| Product Name | 105" 5K 21:9 ViewBoard Interactive Display with Integrated Microphone and USB-C |
| Product Line | ViewBoard |
| Product Series | IFP |
| Brand Name | ViewSonic |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 6 |
| Serial | Yes |
| Display & Graphics | |
| Aspect Ratio | 21:9 |
| Contrast Ratio | 4,000:1 |
| 5,000:1 | |
| Response Time | 6.50 ms |
| Screen Resolution | 5120 x 2160 |
| Brightness | 400 cd/m² |
| Screen Size | 92" |
| Screen Mode | WUHD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Scan Format | 2160p |
| Standard Refresh Rate | 60 Hz |
| Graphics Controller Model | Mali-G610 |
| Display Screen Type | LCD |
| Backlight Technology | Direct LED |
| Tempered Glass | Yes |
