About the product

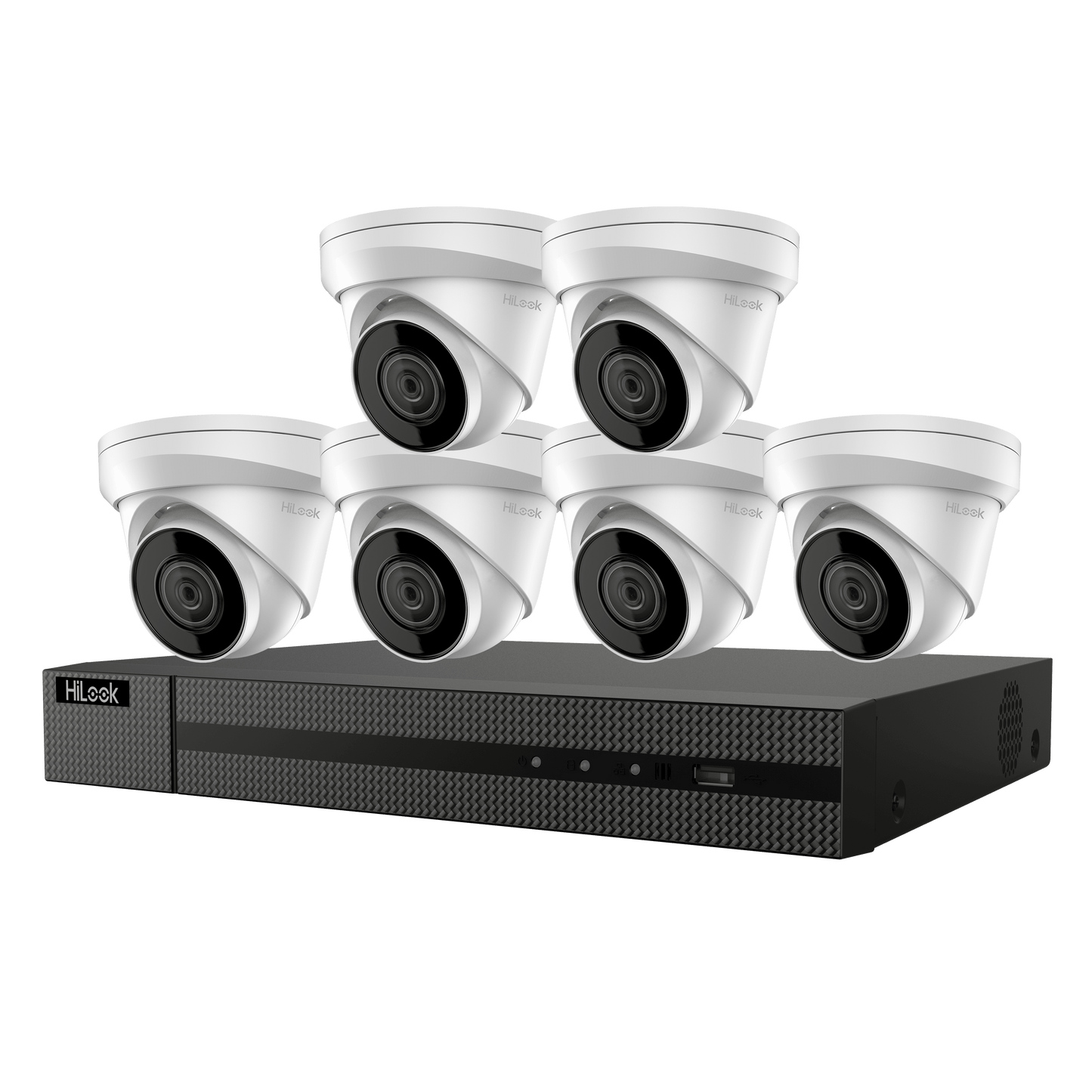

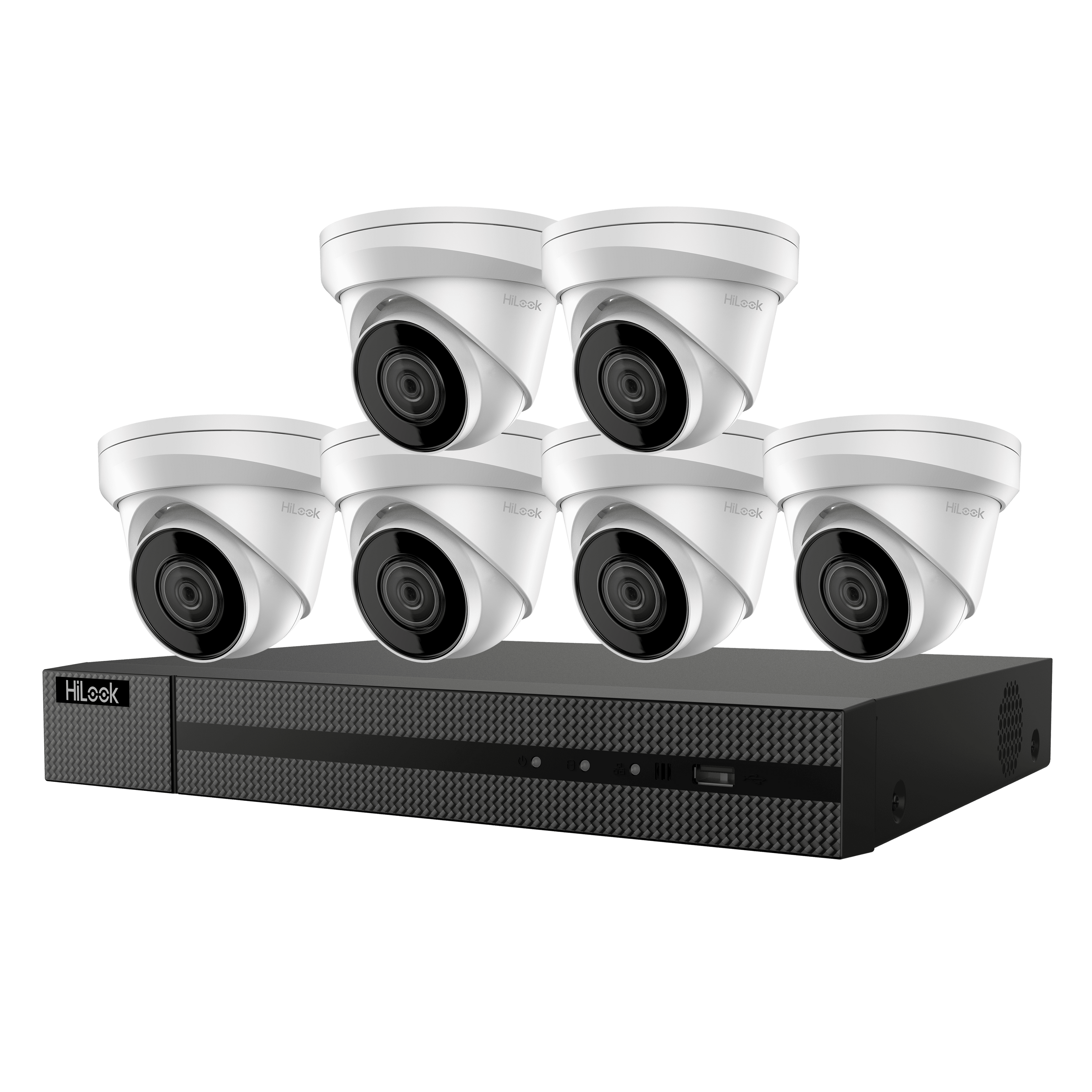

The Hikvision HiLook 8-Channel, 6-Camera 4K 2TB NVR kit includes everything required to deploy a full 4K indoor/outdoor security system. Kit includes 6x 2.8mm wide-angle, 4K (3840 x 2160) resolution, fixed turret cameras with IP67 weatherproofing and automatic IR night recording for installation in virtually any environment, as well as 7x network cables for simplified camera and modem connection into the included 2TB PoE-equipped NVR. Kit includes 6x 60’ network cables for camera connection and 1x 3.3’ network cable for NVR connection.
The 8-channel, PoE-equipped NVR provides remote management, alarming and access via the HiLookConnect mobile app. Connected users can view live footage, review recordings and incidents, and perform network management all via a convenient mobile app, or directly through the NVR itself. HDMI output supports full 4K output, as well as decoding for up to 4 channels simultaneously at 1080p.
2TB security-rated hard drive pre-installed, 2 SATA bays with a maximum of 8TB per disk allow for additional storage expansion for scalable security systems.
IK-6288TH-MH/P Specs and Features
Camera (IPC-T280H) Specs
- Image Sensor: 1/2.8"" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination
- Color: 0.01 Lux @(F2.0, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8mm
- Focal Length & FOV: 2.8 mm
- Horizontal FOV 108°
- Vertical FOV 60°
- Diagonal FOV 127°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F2.0
- DORI:
- D: 81 m
- O: 32 m
- R: 16 m
- I: 8 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video:
- Main Stream: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Region of Interest (ROI): 1 fixed region for main stream
- Network Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S), ISAPI, SDK
- Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
- User/Host: Up to 32 users, 3 levels; Administrator, Operator and User
- Client: iVMS-4200, HiLookVision
- Web Browser: Plug-in required live view: IE 10, IE 11
- Local service: Chrome 57.0+, Firefox 52.0+
- Wide Dynamic Range (WDR): 120 dB
- SNR: ? 52 dB
- Day/Night: Switch Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Settings: Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Privacy Mask: 4 regions of privacy mask
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Basic Event: Motion detection, video tampering alarm, exception
- Linkage: Notify surveillance center, trigger capture
- Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Material: Metal & Plastic
- Dimensions: Ø110 mm × 95.2 mm (Ø4.3"" × 3.8"")
- Weight: Approx. 320 g (0.7 lb.)
- Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Anti-flicker, heartbeat, password protection, password reset via email
- Approval:
- EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015)
- Safety: CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013)
NVR (NVR-208MH-C/8P) Specs
- IP Video Input: 8-ch, up to 8 MP resolution
- Incoming/Outgoing Bandwidth: 80 Mbps/80 Mbps
- HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Decoding Format: H.265+/H.265/H.264+/H.264
- Supported Video Resolutions: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 8-ch
- Capability: 2-ch@8 MP (15 fps)/5-ch@1080p (30 fps)
- Max Remote Connections: 64
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ? 80W
- Standard: IEEE 802.3 af/at
- SATA: 2 SATA interfaces
- Capacity: Up to 8 TB capacity for each disk, 2TB pre-installed
- USB Interface Front panel: 1 × USB 2.0 ; Rear panel: 1 × USB 2.0
- Power Supply: 48 VDC, 2.5 A
- Consumption (without HDD and PoE off): ? 15 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimensions (W × D × H): 385 × 315 × 52 mm (15.2"" × 12.4"" × 2.0"")
- Weight (without hard disk): ? 2.6 kg (5.7 lb)
- Certification FCC, CE, IC
- Weight (with package) ? 6.5 kg (14.3 lb)
