About the product

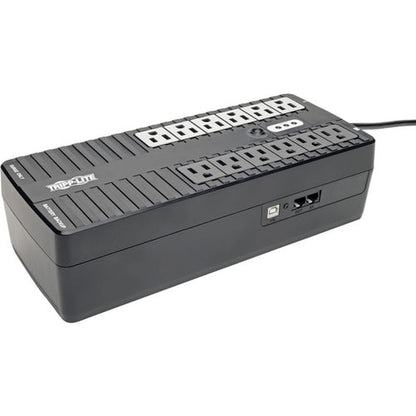

UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Ultra-compact, wall-mountable UPS includes 12 widely spaced, output receptacles to accommodate large transformer plugs. 6 outlets provide full battery support and surge suppression for computers, monitors and other vital system components. 6 additional, surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA/450 watt power handling ability supports entry-level PCs for up to 45 minutes during power failures.
- Compact desktop UPS with silent alarm provides battery backup support for your home/office network system or digital signage components.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown

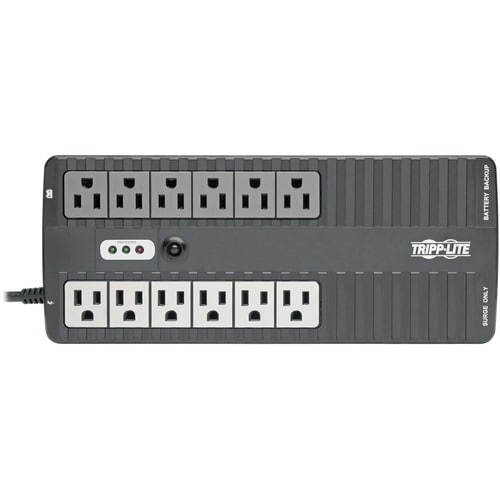

- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
Technical Specifications
| Controls/Indicators | |
| Status Indicators | 2 LEDs indicate on/off and overload/check battery |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Warranty | |
| Additional Warranty Information | 2-year warranty; $100,000 connected equipment insurance (USA & Canada only). |
| Interfaces/Ports | |
| USB | Yes |
| Modem (RJ-11) | Yes |
| Management | |
| Alarm | On Battery |
| Self-test Operation | |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 11 Minute |
| Backup/Run Time (Full Load) | 2.50 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 380 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Physical Characteristics | |
| Weight (Approximate) | 15.50 lb (7030.68 g) |
| Form Factor | Ultra-compact Desk-mount |
| Height | 4" (101.60 mm) |
| Width | 12" (304.80 mm) |
| Depth | 7" (177.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | INTERNET750U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Model | INTERNET750U |
| Product Name | 750VA 6UPS/Surge and 6 Surge UPS System |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerAlert Software |
| Certifications & Standards |
|
| Country of Origin | Vietnam |
| Recycled | No |
| Assembly Required | No |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Technical Information | |
| Application/Usage | Digital Signage |
| DVR | |
| Gaming Console | |
| Home Theater | |
| Home/Office | |
| Media Center | |
| Media Player | |
| Printer | |
| Router | |
| Server | |
| TV | |
| Audio System | |
| Blu-ray Player | |
| Commercial | |
| Desktop Computer | |
| Dataline Protection | RJ-11 |
| Protection Type | Over Voltage |
| Line Noise | |
| Black Out | |
| Surge | |
| Brownout | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft (1.52 m) |
| Receptacle Type | NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 4 ms |
| Receptacle Detail | 12 x NEMA 5-15R |
