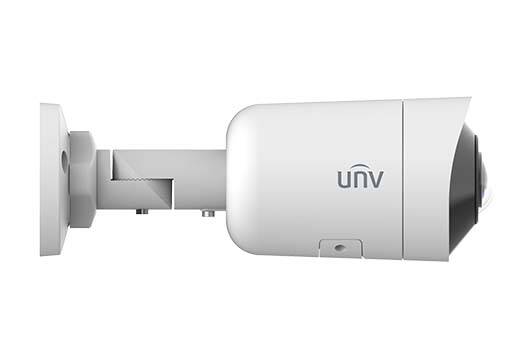

Uniview Network HD,180 Degree Intelligent IR Fixed Bullet Camera 5MP, 1.68mm (IPC2105SB-ADF16KM-I0)

Name: Uniview Network HD,180 Degree Intelligent IR Fixed Bullet Camera 5MP, 1.68mm (IPC2105SB-ADF16KM-I0)
Brand: UNV Uniview
SKU: AT633785
Price: 311.99 CAD
Availability: InStock

$311.99 CAD

~~$349.99 CAD~~ $311.99 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Uniview Network HD,180 Degree Intelligent IR Fixed Bullet Camera 5MP, 1.68mm (IPC2105SB-ADF16KM-I0)

VPN:IPC2105SB-ADF16KM-I0 SKU:AT633785 UPC:810093328291

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

Uniview Network HD,180 Degree Intelligent IR Fixed Bullet Camera 5MP, 1.68mm

Uniview Network Bullet Camera Features

High quality image with 5MP, 1/2.7""CMOS sensor
5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
Wide Angle technology realizes the horizontal viewing angle of 180°
The dewarp level can be configured in the range of 1-9
Ultra 265, H.264, H.265, MJPEG
Smart intrusion prevention, including cross line, intrusion, enter the area and leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds, lights, etc., accurately focusing on the human, motor vehicle, and non-motor vehicle
120dB true WDR technology enables clear images in a strong light scene
Built-in Mic
Smart IR, up to 20m (66ft) IR distance
Supports 256 GB Micro SD card
DC12V or PoE(IEEE 802.3af) power supply
IP67 protection
3-Axis

Uniview Network Bullet Camera Specifications

Camera
- Sensor: 1/2.7"", 5.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
  - Colour: 0.01lux (F2.0, AGC ON)
  - 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment angle: Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360°
- WDR: 120dB
- S/N: >56dB

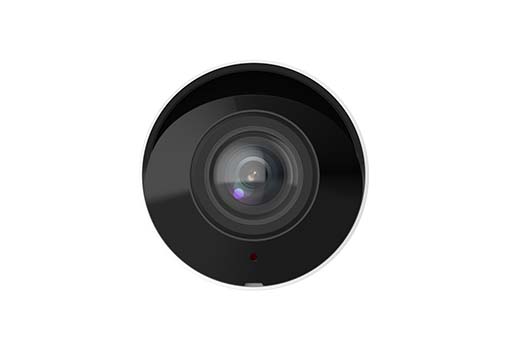

Lens
- Lens type: 1.68mm@F2.0
- Iris: Fixed
- Field of View (H): 180°
- Field of View (V): 100°
- Field of View (O): 180°
DORI
- DORI Distance
  - Lens (mm): 1.68
  - Detect (m): 37.8(124.0ft)
  - Observe (m): 15.1(49.6ft)
  - Recognize (m): 7.6(24.8ft)
  - Identify (m): 3.8(12.4ft)
Illuminator
- IR Range: Up to 20m (66ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG, H.264 code profile: Baseline profile, Main Profile, High profile
- Frame Rate:
  - Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 1280*720 Max 30fps
  - Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  - Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Triple streams
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal/ Flip Vertical/ Flip Horizontal/180°
- Dewarping: Support
- HLC: Support
- BLC: Support
- Defog: Digital Defog
Intelligent
- Smart intrusion prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area Detection
Events
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way audio: N/A
- Suppression: Support
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile T, Profile G), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
- Client:
  - EZStation
  - EZView
  - EZLive
Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Audio I/O: N/A
- Alarm I/O: N/A
- Serial Port: N/A
- Built-in Mic: Support
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
Certifications
- EMC:
  - CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
  - FCC (FCC 47 CFR part15 B)
- Safety:
  - CE LVD (EN 62368-1)
  - CB (IEC 62368-1)
  - UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
- Protection: IP67 (IEC 60529)
General
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 5.5W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (L × W × H): 198× 71 × 71mm (7.8” × 2.8” × 2.8”)
- Weight: 0.42kg (0.93lb)
- Material: Metal
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Support
