About the product
Uniview's OwlView Wise-ISP 5th generation night vision technology offers previously impossible full colour images at night. The technology is so impressive that it caused a wave of Internet commenters to claim it was fake! ColorHunter technology uses a wide aperture set at F1.0 to collect 4 times as much light as standard F2.0+ CCTV lenses, and state-of-the-art Wise-ISP Nightview tech provides superior clarity to other low-light colour algorithms, diminishing colour distortions, high-noise, blur and LED glare, as well as ameliorating shadowed images/subjects and automatically correcting low-brightness on output; eliminating common issues and frustrations commonly associated with night time or IR recordings.

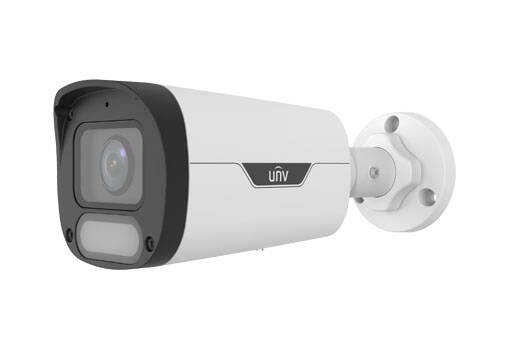

The ColorHunter Wise-ISP Fixed Bullet Camera combines state-of-the-art low-light colour reproduction along with a high-end 1/1.8'' 8MP sensor to produce crystal-clear recordings-- even at night and in conditions with as little as 0.0003 lux of ambient lighting. 130dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight. The additional supplemental white light kicks in for 0 Lux conditions, capturing high-quality videos of subjects up to 98 feet away, no matter the conditions.
IP67 protection ensures 24/7 indoor or outdoor installation in virtually any environment. Supports microSD cards up to 512 GB for redundant recording backups (microSD card sold separately).
IPC2318SR-ADF28KM-WP Specs and Features
- Max Resolution: 8MP
- Sensor: 1/1.8"" CMOS
- Min. Illumination: Colour: 0.0003 lux (F1.0, AGC ON)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotate: 0° ~ 360°
- S/N: >52dB
- WDR: 120dB
- Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.0
- Field of View:
- (H): 111.0°
- (V): 63.0°
- (D): 131.0°
- Lens Type: Fixed
- Supplemental Light: Warm Light
- Illumination Distance (Warm Light): 30 m (98.4 ft)
- Light On/Off Control: Auto/Manual
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps
- Video Bit Rate: 128 Kbps ~ 6144 Kbps
- U-code: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual Streams
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart Illumination: Supported
- Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Basic Detection: Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection)
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 64 Kbps
- Suppression: Supported
- Sampling Rate: 8 KHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Protocols: IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
- User/Host: Up to 32 users, 2 user levels: administrator and common user
- Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
- Client: UNV-Link; UNV-Link Pro; EZStation
- Built-in Mic: Yes
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 3.9W
- Power Interface: Ø 5.5 mm coaxial power plug
- Dimensions: 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) (L x W x H)
- Weight: 0.48kg(1.06lb)
- Material: Metal
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
