About the product

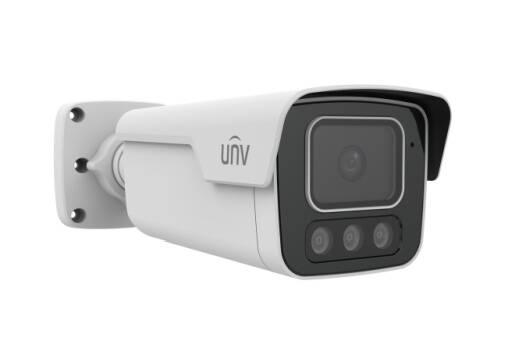

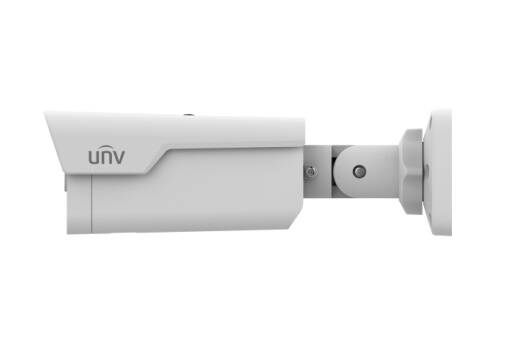

The Uniview Intelligent 8MP Light and Audible Warning Bullet Camera acts as a front-line active deterrence camera; combining a suite of advanced smart features like perimeter protection, line crossing (including enter/leave area) and intrusion protection captures subjects based on target algorithms—prioritizing human and vehicle subjects, while ignoring debris and animals—with automatic flashing red & blue warning lights, audio warning playback, and even two-way audio via built-in mic and speaker for direct operator address.
Ideal for front-line indoor/outdoor installs (IP67 rating). Additional Smart IR ensures crystal-clear 4K (2160p) recording, day or night, up to 40m (131 feet) away from the camera. Additional features like statistical analysis, people counting, flow counting and crowd density monitoring makes it an ideal product for commercial and high-traffic installs.
Additional alarm I/O can connect into larger alarm systems. Powered by PoE or DC12V power supply (not included).
IPC2B18SS-ADF28KMC-I1 Specs and Features
- Sensor: 1/2.8"", 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.001 Lux (F1.0, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotate: 0° ~ 360°
- WDR: 130dB
- S/N: >56dB
- Lens: 2.8mm@F1.0
- Iris: Fixed
- Field of View:
- (H): 106.5°
- (V): 57.9°
- (D): 132°
- IR Range: Up to 40m (131 ft)
- Warm Light: Range Up to 40m (131 ft)
- Wavelength: 850nm
- Light On/Off Control: Auto/Manual
- Video Compression Ultra 265, H.265, H.264, MJPEG
- H.264 code profile Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream:8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Triple streams
- Auto Scene Match (ASM): Supported?Only WDR?
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart intrusion prevention: Supports false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
- Statistical Analysis: People counting, support people flow counting and crowd density monitoring
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ Ed
- ge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client: EZStation, EZView, EZLive
- Audio I/O:
- Input: impedance 35k?; amplitude 2V [p-p]
- Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Yes
- Built-in Speaker: Yes
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 10.0W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (L × W × H): 269 × 96 × 82mm (10.6” × 3.8” × 3.2”)
- Weight: 0.97kg (2.14lb)
- Material: Metal+Plastic
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-
- condensing)EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
Technical Specifications
The Uniview Intelligent 8MP Light and Audible Warning Bullet Camera acts as a front-line active deterrence camera; combining a suite of advanced smart features like perimeter protection, line crossing (including enter/leave area) and intrusion protection captures subjects based on target algorithms—prioritizing human and vehicle subjects, while ignoring debris and animals—with automatic flashing red & blue warning lights, audio warning playback, and even two-way audio via built-in mic and speaker for direct operator address.
Ideal for front-line indoor/outdoor installs (IP67 rating). Additional Smart IR ensures crystal-clear 4K (2160p) recording, day or night, up to 40m (131 feet) away from the camera. Additional features like statistical analysis, people counting, flow counting and crowd density monitoring makes it an ideal product for commercial and high-traffic installs.
Additional alarm I/O can connect into larger alarm systems. Powered by PoE or DC12V power supply (not included).
IPC2B18SS-ADF28KMC-I1 Specs and Features
- Sensor: 1/2.8"", 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.001 Lux (F1.0, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotate: 0° ~ 360°
- WDR: 130dB
- S/N: >56dB
- Lens: 2.8mm@F1.0
- Iris: Fixed
- Field of View:
- (H): 106.5°
- (V): 57.9°
- (D): 132°
- IR Range: Up to 40m (131 ft)
- Warm Light: Range Up to 40m (131 ft)
- Wavelength: 850nm
- Light On/Off Control: Auto/Manual
- Video Compression Ultra 265, H.265, H.264, MJPEG
- H.264 code profile Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream:8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Triple streams
- Auto Scene Match (ASM): Supported?Only WDR?
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart intrusion prevention: Supports false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
- Statistical Analysis: People counting, support people flow counting and crowd density monitoring
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ Ed
- ge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client: EZStation, EZView, EZLive
- Audio I/O:
- Input: impedance 35k?; amplitude 2V [p-p]
- Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Yes
- Built-in Speaker: Yes
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 10.0W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (L × W × H): 269 × 96 × 82mm (10.6” × 3.8” × 3.2”)
- Weight: 0.97kg (2.14lb)
- Material: Metal+Plastic
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-
- condensing)EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
