About the product

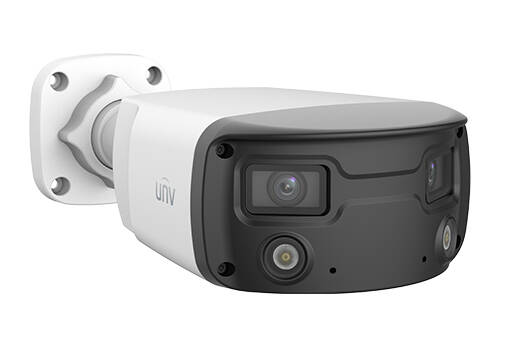

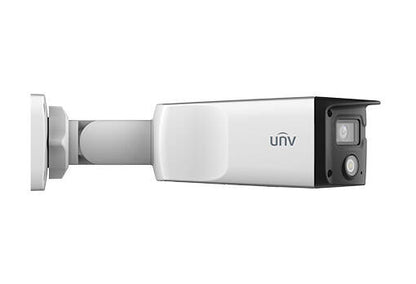

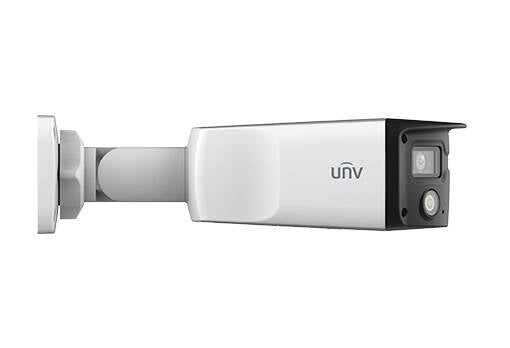

The Uniview 4K HD ColorHunter Omniview Series Fixed Bullet Network Camera uses a high resolution 8MP, 1/2.7’’ CMOS sensor and double lens splicing technology to offer a significantly improved 180°±10° viewing angle that doesn’t sacrifice on quality for coverage. ColorHunter technology ensures your image is crystal clear, day or night, with 24-hour full-colour recording and imaging. Take advantage of an onboard suite of target classification algorithms that reduce false alarms from common nuisance alarm triggers like small animals, leaves, neighbouring lights and shadows; incorporate smart features like People Flow Counting and Crowd Density Monitoring for complex custom control in commercial or industrial settings, and even accurately distinguish and focus on human/motor vehicle targets automatically for your all-around security needs. With built-in alarm and audio outputs, speakers and dual mics, the Uniview ColorHunter Omniview Fixed Bullet camera can act as your front-line security solution. Supports up to 256GB microSD cards for local recording. Requires a 12V DC/PoE power supply.
IPC2K28SE-ADF40KMC-WL-I0 Specs and Features:
- Sensor: 1/2.7?, 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination: 0.0005 lux (F1.0, AGC ON)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- WDR: 130dB
- S/N: >52dB
- Lens: 2 x 4.0mm@F1.0
- Iris: Fixed
- Field of View (H): 180°±10°
- Field of View (V): 47.41°
- Field of View (D): 180.13°±10°
- DORI Distance (4mm lens): 90m (259.3 ft) Detect, 36m (118.1 ft) Observe, 18m (59.1 ft) Recognize, 9m (29.5 ft) Identify
- LED Distance: Up to 30m (98ft)
- LED On/Off Control: Auto/Manual
- Video Compression: Ultra265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main profile, High profile
- Frame Rate: Main Stream: 8MP (5120*1440), Max 20fps
- Sub Stream: 2560*720, Max 20fps
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Double streams
- Auto Scene Match (ASM): Supported?Only WDR?
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction: 2D/3D DNR
- Smart Illumination: Supported
- Flip: N/A
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
- Statistical Analysis: People counting, support people flow counting and crowd density monitoring
- Events: Basic Detection, Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication
- Audio Compression: G.711
- Audio Bitrate: 64 Kbps
- Two-way audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Network Protocols: IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
- User/Host: Up to 32 users. 3 user levels: administrator and common user and operator
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Audio I/O Input: impedance 35k?; amplitude 2V [p-p]
- Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Built-in Dual Mic
- Built-in Speaker
- WIFI: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Certifications:
- EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environmental Certifications: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
- Protection: IP67 (IEC 60529)
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 13W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (L × W × H): 273 × 130 × 76mm (10.7” × 5.1” × 3.0”)
- Weight: 0.96kg (2.12lb)
- Material: Metal
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Supported
Technical Specifications
The Uniview 4K HD ColorHunter Omniview Series Fixed Bullet Network Camera uses a high resolution 8MP, 1/2.7’’ CMOS sensor and double lens splicing technology to offer a significantly improved 180°±10° viewing angle that doesn’t sacrifice on quality for coverage. ColorHunter technology ensures your image is crystal clear, day or night, with 24-hour full-colour recording and imaging. Take advantage of an onboard suite of target classification algorithms that reduce false alarms from common nuisance alarm triggers like small animals, leaves, neighbouring lights and shadows; incorporate smart features like People Flow Counting and Crowd Density Monitoring for complex custom control in commercial or industrial settings, and even accurately distinguish and focus on human/motor vehicle targets automatically for your all-around security needs. With built-in alarm and audio outputs, speakers and dual mics, the Uniview ColorHunter Omniview Fixed Bullet camera can act as your front-line security solution. Supports up to 256GB microSD cards for local recording. Requires a 12V DC/PoE power supply.
IPC2K28SE-ADF40KMC-WL-I0 Specs and Features:
- Sensor: 1/2.7?, 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination: 0.0005 lux (F1.0, AGC ON)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- WDR: 130dB
- S/N: >52dB
- Lens: 2 x 4.0mm@F1.0
- Iris: Fixed
- Field of View (H): 180°±10°
- Field of View (V): 47.41°
- Field of View (D): 180.13°±10°
- DORI Distance (4mm lens): 90m (259.3 ft) Detect, 36m (118.1 ft) Observe, 18m (59.1 ft) Recognize, 9m (29.5 ft) Identify
- LED Distance: Up to 30m (98ft)
- LED On/Off Control: Auto/Manual
- Video Compression: Ultra265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main profile, High profile
- Frame Rate: Main Stream: 8MP (5120*1440), Max 20fps
- Sub Stream: 2560*720, Max 20fps
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Double streams
- Auto Scene Match (ASM): Supported?Only WDR?
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction: 2D/3D DNR
- Smart Illumination: Supported
- Flip: N/A
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
- Statistical Analysis: People counting, support people flow counting and crowd density monitoring
- Events: Basic Detection, Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication
- Audio Compression: G.711
- Audio Bitrate: 64 Kbps
- Two-way audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Network Protocols: IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
- User/Host: Up to 32 users. 3 user levels: administrator and common user and operator
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Audio I/O Input: impedance 35k?; amplitude 2V [p-p]
- Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Built-in Dual Mic
- Built-in Speaker
- WIFI: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Certifications:
- EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environmental Certifications: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
- Protection: IP67 (IEC 60529)
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 13W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (L × W × H): 273 × 130 × 76mm (10.7” × 5.1” × 3.0”)
- Weight: 0.96kg (2.12lb)
- Material: Metal
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Supported
