About the product

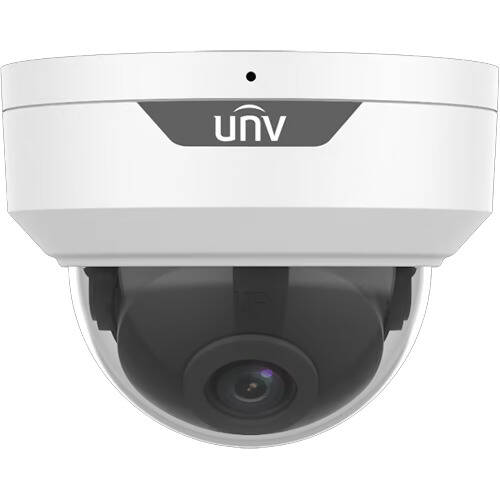

The Uniview 2MP Network Dome Camera is an entry-level, basic security camera with IP67 weather resistance, IK10 vandal resistance, and built-in night-time IR recording for inexpensive, sharp and reliable recording 24/7-- no matter the environment. Two-way audio support even allows operators and end users to address intruders directly through the camera with additional hardware, and built-in motion sensing can alert users when intruders are detected in specified areas.
2.8mm 'ultra-wide' lens captures up to 113° horizontally-- perfect for monitoring wide areas like parking lots, building sites, roadways, and more. Smart IR allows night-time recording up to 30m (98') away, and built-in 'car grade' LEDs allow for brighter, uniform lighting with 120dB WDR to compensate for blow-outs or hard shadowing in awkward lighting conditions.
Wide input voltage (±25%), generic ONVIF conformance, customized OSD and controllable region-of-interest allows installers and users to incorporate the camera into a wide variety of existing or new installations with ease. Ultra 265 and H.265 ensures fast, crisp video playback up to 1080p at 30 FPS.
IPC322SR3-DVPF28-H Specs and Features
- Sensor: 1/2.8"", 2.0 megapixel, progressive scan, CMOS
- Lens: 2.8mm@F1.6
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Minimum Illumination: Colour: 0.003Lux (F2.0, AGC ON), 0 Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- S/N: >52 dB
- IR Range: Up to 30m (98ft)
- IR Range Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Defog: Digital Defog
- WDR: 120dB
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Video Bit Rate: 128 Kbps~16 Mbps
- Frame Rate:
- Main Stream: 2MP (1920*1080), Max 30fps
- Sub Stream: 2MP (1920*1080), Max 30fps
- Third Stream: D1 (720*576), Max 30fps
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 8 areas
- ROI: Up to 8 areas
- Motion Detection: Up to 4 areas
- Audio Compression: G.711
- Two-way audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ
- Audio I/O:
- Input: impedance 35k?; amplitude 2V [p-p]
- Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 4W
- Dimensions (Ø x H): ?108.5 x 81mm (Ø4.28” x 3.2”)
- Net Weight: 0.45kg (0.99lb)
- Material: Metal + Plastic
- Working Environment: -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Certifications:
- CE: EN 60950-1
- UL: UL60950-1
- FCC: FCC Part 15
Technical Specifications
The Uniview 2MP Network Dome Camera is an entry-level, basic security camera with IP67 weather resistance, IK10 vandal resistance, and built-in night-time IR recording for inexpensive, sharp and reliable recording 24/7-- no matter the environment. Two-way audio support even allows operators and end users to address intruders directly through the camera with additional hardware, and built-in motion sensing can alert users when intruders are detected in specified areas.
2.8mm 'ultra-wide' lens captures up to 113° horizontally-- perfect for monitoring wide areas like parking lots, building sites, roadways, and more. Smart IR allows night-time recording up to 30m (98') away, and built-in 'car grade' LEDs allow for brighter, uniform lighting with 120dB WDR to compensate for blow-outs or hard shadowing in awkward lighting conditions.
Wide input voltage (±25%), generic ONVIF conformance, customized OSD and controllable region-of-interest allows installers and users to incorporate the camera into a wide variety of existing or new installations with ease. Ultra 265 and H.265 ensures fast, crisp video playback up to 1080p at 30 FPS.
IPC322SR3-DVPF28-H Specs and Features
- Sensor: 1/2.8"", 2.0 megapixel, progressive scan, CMOS
- Lens: 2.8mm@F1.6
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Minimum Illumination: Colour: 0.003Lux (F2.0, AGC ON), 0 Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- S/N: >52 dB
- IR Range: Up to 30m (98ft)
- IR Range Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Defog: Digital Defog
- WDR: 120dB
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Video Bit Rate: 128 Kbps~16 Mbps
- Frame Rate:
- Main Stream: 2MP (1920*1080), Max 30fps
- Sub Stream: 2MP (1920*1080), Max 30fps
- Third Stream: D1 (720*576), Max 30fps
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 8 areas
- ROI: Up to 8 areas
- Motion Detection: Up to 4 areas
- Audio Compression: G.711
- Two-way audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ
- Audio I/O:
- Input: impedance 35k?; amplitude 2V [p-p]
- Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 4W
- Dimensions (Ø x H): ?108.5 x 81mm (Ø4.28” x 3.2”)
- Net Weight: 0.45kg (0.99lb)
- Material: Metal + Plastic
- Working Environment: -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Certifications:
- CE: EN 60950-1
- UL: UL60950-1
- FCC: FCC Part 15
