About the product

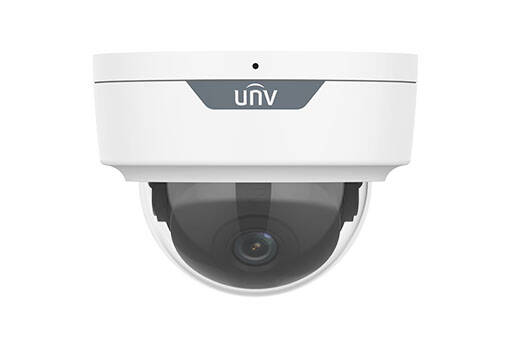

The Uniview 4MP IP Network Vandal Resistant Mini Dome is a hardened, IK10 vandal resistant dome camera. With recording resolutions up to 4MP (2688 x 1520) at 30 fps and extended Smart IR for night-time recording up to 30m (98') and IP67 water resistance for permanent indoor or outdoor installation. IK10 vandal resistance ensures uninterrupted imaging, ideal for front-line security in areas with heavy public traffic like parking garages, stairwells, and more.
Easystar technology ensures high-quality imaging, even in low-to-no light environments, and 120dB true WDR technology allows for clear light contrasting-- preventing blowouts from direct lighting, or heavy shadowing on illuminated subjects, even in direct sunlight. 2.8mm focal width provides excellent horizontal coverage (97.0°), ideal for perimeter protection.
Supports 16:9 corridor mode. Includes built-in mic and micro SD card slot. Coaxial power DC 12V or PoE (IEEE 802.3af) power supply options supports a variety of installation options, including hardened cabling for high-value or high-traffic installs.
Replaces IPC324SR3-DSF28KM-G.
IPC324SR-ADF28KM-H Specs and Features
- Max Resolution: 4MP
- Sensor: 1/3.0"" CMOS
- Min. Illumination
- Colour: 0.003 lux ( F1.6, AGC ON) 0 Lux with IR on
- Day/Night: IR cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 8° ~ 360°
- Tilt: 0° ~ 68°
- Rotate: 10° ~ 360°
- S/N: >52dB
- WDR: 120dB
- Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View (H): 97.0°
- Field of View (V): 52.2°
- Field of View (D): 107.5°
- DORI: 63.0m (206.7'), 25.2m (82.7'), 12.6m (41.3'), 6.3m (20.7')
- Supplemental Light: IR
- Illumination Distance(IR): 30 m (98.4 ft)
- Wavelength: 850 nm
- IR On/Off Control: Auto/Manual
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
- Video Bit Rate: 128 Kbps ~ 6144 Kbps
- U-code: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual Streams
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90° Clockwise; 90° Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Basic Detection: Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: N/A
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
- Client: UNV-Link; UNV-Link Pro; EZStation
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
- Audio I/O: N/A
- Alarm I/O: N/A
- Serial Port: N/A
- Built-in Mic: Supported
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529); IK10 (IEC 62262)
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 4.4W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions: ?111 x 83mm (Ø4.4” x 3.3”)
- Weight: 0.35kg (0.77lb)
- Material: Metal
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Supported
Technical Specifications
The Uniview 4MP IP Network Vandal Resistant Mini Dome is a hardened, IK10 vandal resistant dome camera. With recording resolutions up to 4MP (2688 x 1520) at 30 fps and extended Smart IR for night-time recording up to 30m (98') and IP67 water resistance for permanent indoor or outdoor installation. IK10 vandal resistance ensures uninterrupted imaging, ideal for front-line security in areas with heavy public traffic like parking garages, stairwells, and more.
Easystar technology ensures high-quality imaging, even in low-to-no light environments, and 120dB true WDR technology allows for clear light contrasting-- preventing blowouts from direct lighting, or heavy shadowing on illuminated subjects, even in direct sunlight. 2.8mm focal width provides excellent horizontal coverage (97.0°), ideal for perimeter protection.
Supports 16:9 corridor mode. Includes built-in mic and micro SD card slot. Coaxial power DC 12V or PoE (IEEE 802.3af) power supply options supports a variety of installation options, including hardened cabling for high-value or high-traffic installs.
Replaces IPC324SR3-DSF28KM-G.
IPC324SR-ADF28KM-H Specs and Features
- Max Resolution: 4MP
- Sensor: 1/3.0"" CMOS
- Min. Illumination
- Colour: 0.003 lux ( F1.6, AGC ON) 0 Lux with IR on
- Day/Night: IR cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 8° ~ 360°
- Tilt: 0° ~ 68°
- Rotate: 10° ~ 360°
- S/N: >52dB
- WDR: 120dB
- Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View (H): 97.0°
- Field of View (V): 52.2°
- Field of View (D): 107.5°
- DORI: 63.0m (206.7'), 25.2m (82.7'), 12.6m (41.3'), 6.3m (20.7')
- Supplemental Light: IR
- Illumination Distance(IR): 30 m (98.4 ft)
- Wavelength: 850 nm
- IR On/Off Control: Auto/Manual
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
- Video Bit Rate: 128 Kbps ~ 6144 Kbps
- U-code: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual Streams
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90° Clockwise; 90° Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Basic Detection: Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: N/A
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
- Client: UNV-Link; UNV-Link Pro; EZStation
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
- Audio I/O: N/A
- Alarm I/O: N/A
- Serial Port: N/A
- Built-in Mic: Supported
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529); IK10 (IEC 62262)
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 4.4W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions: ?111 x 83mm (Ø4.4” x 3.3”)
- Weight: 0.35kg (0.77lb)
- Material: Metal
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Supported
