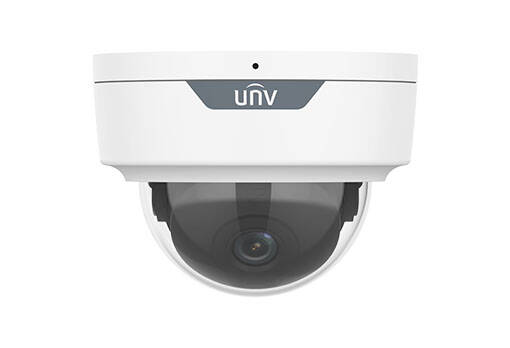

Uniview Network 8MP Fixed Lens IR Dome Camera, 2.8mm (IPC328SR-ADF28KM-H)

Name: Uniview Network 8MP Fixed Lens IR Dome Camera, 2.8mm (IPC328SR-ADF28KM-H)
Brand: UNV Uniview
SKU: AT709803
Price: 200.99 CAD
Availability: InStock

$200.99 CAD

~~$225.99 CAD~~ $200.99 CAD

-11% OFF Ask for quote

Shipping calculated at checkout.

Uniview Network 8MP Fixed Lens IR Dome Camera, 2.8mm (IPC328SR-ADF28KM-H)

VPN:IPC328SR-ADF28KM-H SKU:AT709803 UPC:810093320318

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Uniview Network 8MP Fixed Lens IR Dome Camera, 2.8mm (IPC328SR-ADF28KM-H)

About the product

The Uniview Vandal-Resistant 8MP Fixed Lens IR Dome Camera is designed for high-traffic or public installs-- IP67 environmental allows for permanent 24/7 indoor or outdoor installation, and the IK10 impact resistance prevents equipment damage from vandals or trespassers looking to cause mischief. Ideal for large isolated or public areas like parks, walkways or stairwells. High-definition 8MP/4K video recording ensures unparalleled recording clarity, day or night-- and the 120dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight.

PoE-powered, additional power options sold separately (DC 12V±25%, Ø 5.5mm coaxial power plug). Includes built-in mic for simultaneous audio recording.

IPC328SR-ADF28KM-H Specs and Features

Max Resolution 8MP
Sensor: 1/2.8"" CMOS
Min. Illumination:
- Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON)
- 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle:
- Pan: 8° ~ 360°
- Tilt: 0° ~ 68°
- Rotate: 10° ~ 360°
S/N: >52dB
WDR: 120dB
Focal length: 2.8mm
Iris Type: Fixed
Iris: F1.6
Field of View:
- (H): 98.7°
- (V): 53.9°
- (D): 103.6°
Supplemental Light: IR
Illumination Distance(IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
Video Compression: Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate:
- Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440)
- Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate: 128 Kbps ~ 16 Mbps
U-code: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video Stream: Dual Streams
White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
HLC: Supported
BLC: Supported
Defog: Digital Defog
Basic Detection: Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection)
General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
Audio Compression: G.711U; G.711A
Audio Bitrate: 64 Kbps
Suppression: Supported
Sampling Rate: 8KHZ
Edge Storage: Micro SD, up to 512 GB
Network Storage: ANR; NAS (NFS)
Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; 802.1x; SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client: UNV-Link; UNV-Link Pro; EZStation
Built-in Mic: Yes
Network: 1 x RJ45 10M/100M Base-TX Ethernet
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.9W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: ?111 x 83mm (Ø4.4” x 3.3”)
Weight: 0.36kg (0.79lb)
Material: Metal
Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368-); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529); IK10 (IEC 62262)

Datasheet

Technical Specifications

PoE-powered, additional power options sold separately (DC 12V±25%, Ø 5.5mm coaxial power plug). Includes built-in mic for simultaneous audio recording.

IPC328SR-ADF28KM-H Specs and Features

Max Resolution 8MP
Sensor: 1/2.8"" CMOS
Min. Illumination:
- Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON)
- 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle:
- Pan: 8° ~ 360°
- Tilt: 0° ~ 68°
- Rotate: 10° ~ 360°
S/N: >52dB
WDR: 120dB
Focal length: 2.8mm
Iris Type: Fixed
Iris: F1.6
Field of View:
- (H): 98.7°
- (V): 53.9°
- (D): 103.6°
Supplemental Light: IR
Illumination Distance(IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
Video Compression: Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate:
- Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440)
- Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate: 128 Kbps ~ 16 Mbps
U-code: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video Stream: Dual Streams
White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
HLC: Supported
BLC: Supported
Defog: Digital Defog
Basic Detection: Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection)
General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
Audio Compression: G.711U; G.711A
Audio Bitrate: 64 Kbps
Suppression: Supported
Sampling Rate: 8KHZ
Edge Storage: Micro SD, up to 512 GB
Network Storage: ANR; NAS (NFS)
Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; 802.1x; SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client: UNV-Link; UNV-Link Pro; EZStation
Built-in Mic: Yes
Network: 1 x RJ45 10M/100M Base-TX Ethernet
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.9W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: ?111 x 83mm (Ø4.4” x 3.3”)
Weight: 0.36kg (0.79lb)
Material: Metal
Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368-); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529); IK10 (IEC 62262)
