About the product

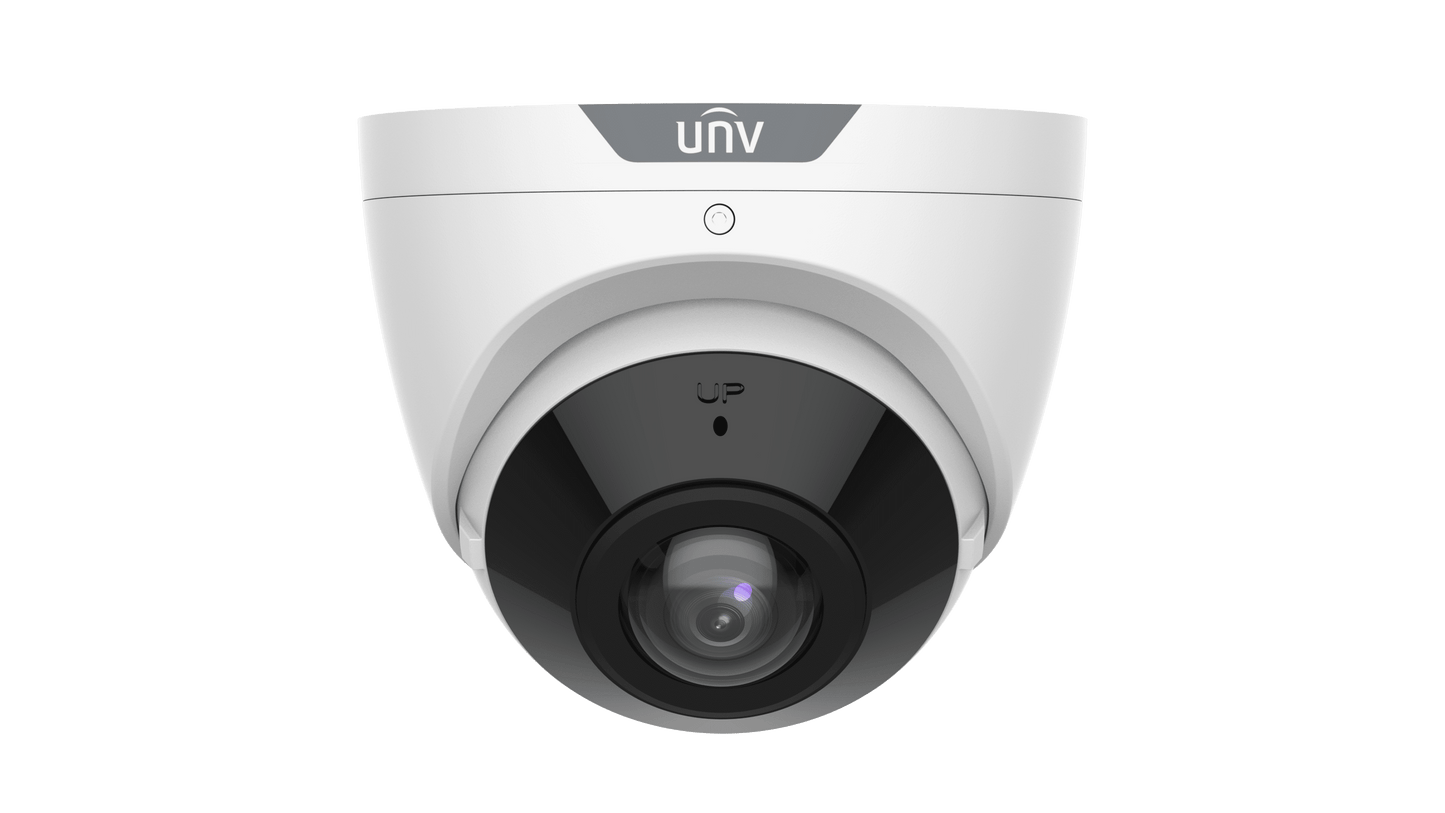

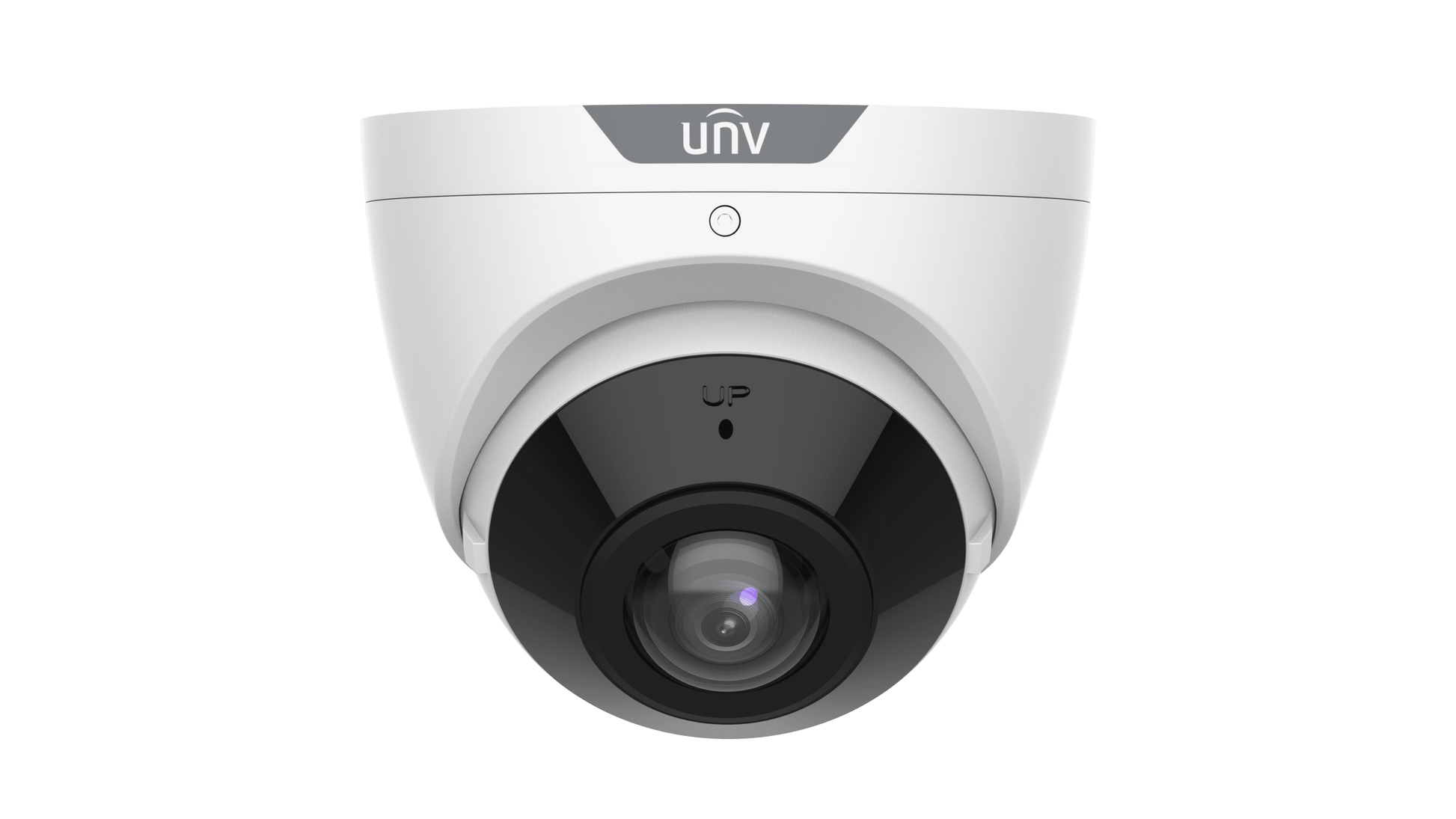

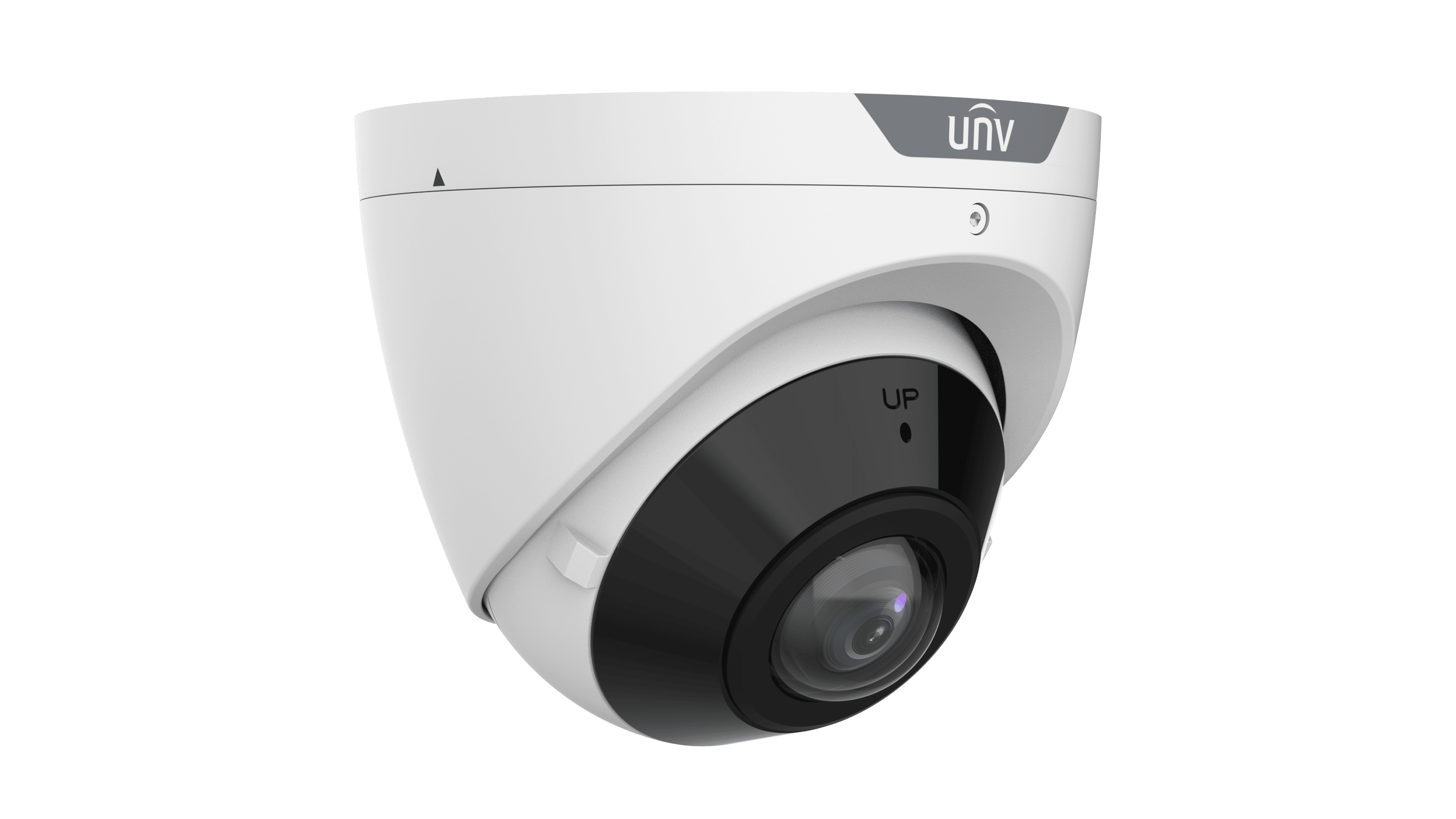

The Uniview 8MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera combines an ultra-wide 180° view from a 1.68mm lens with easy ‘eyeball’-style adjustability for panoramic surveillance of external walls, parking lots, salesfloors and much more.
Dewarping can be adjusted from 1 to 9, adjusting video output to enable focusing on important surveillance zones. Smart features like smart intrusion and target classification minimize false alarms from debris or animals and automatically record and alarm when human or vehicle targets enter or exit an area.
Additional features like 120 dB true WDR and smart IR ensure crystal-clear, 8MP 4K (2160p) footage—day or night. Additional IP67 ingress protection enables year-round indoor or outdoor installation, while IK10 vandal resistance makes it ideal for public installation in high-traffic areas.
Accepts PoE or DC12V power supply (not included).
IPC3608SB-ADF16KM-I0 Specs and Features
- Max Resolution: 8 MP
- Sensor: 1/2.7"" CMOS
- Min. Illumination:
- Colour: 0.01 lux (F2.0, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- S/N: >52dB
- WDR: 120dB
- Focal Length: 1.68 mm
- Iris Type: Fixed
- Iris: F2.0
- Field of View:
- (H) 180°
- (V) 100°
- (D) 180°
- Lens Type: Fixed
- Supplemental Light: IR
- Illumination Distance (IR): 20 m (65.6 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- -Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps ~ 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°
- Dewarping: Supported, adjustable
- Auto Scene Match (ASM): Supported (Only WDR)
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Low Illumination Characteristics: Low-light
- Smart Intrusion Prevention: Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Suppression: Supported
- Sampling Rate: 8 KHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- Built-in Mic: Yes
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 5.5W
- Power Interface: Ø 5.5 mm coaxial power plug
- Dimensions: Ø111 x 93mm (Ø4.4”x 3.7”) (Ø x H)
- Weight: 0.48kg (1.06lb)
- Material: Metal
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
Technical Specifications
The Uniview 8MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera combines an ultra-wide 180° view from a 1.68mm lens with easy ‘eyeball’-style adjustability for panoramic surveillance of external walls, parking lots, salesfloors and much more.
Dewarping can be adjusted from 1 to 9, adjusting video output to enable focusing on important surveillance zones. Smart features like smart intrusion and target classification minimize false alarms from debris or animals and automatically record and alarm when human or vehicle targets enter or exit an area.
Additional features like 120 dB true WDR and smart IR ensure crystal-clear, 8MP 4K (2160p) footage—day or night. Additional IP67 ingress protection enables year-round indoor or outdoor installation, while IK10 vandal resistance makes it ideal for public installation in high-traffic areas.
Accepts PoE or DC12V power supply (not included).
IPC3608SB-ADF16KM-I0 Specs and Features
- Max Resolution: 8 MP
- Sensor: 1/2.7"" CMOS
- Min. Illumination:
- Colour: 0.01 lux (F2.0, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- S/N: >52dB
- WDR: 120dB
- Focal Length: 1.68 mm
- Iris Type: Fixed
- Iris: F2.0
- Field of View:
- (H) 180°
- (V) 100°
- (D) 180°
- Lens Type: Fixed
- Supplemental Light: IR
- Illumination Distance (IR): 20 m (65.6 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- -Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps ~ 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°
- Dewarping: Supported, adjustable
- Auto Scene Match (ASM): Supported (Only WDR)
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Low Illumination Characteristics: Low-light
- Smart Intrusion Prevention: Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Suppression: Supported
- Sampling Rate: 8 KHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- Built-in Mic: Yes
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 5.5W
- Power Interface: Ø 5.5 mm coaxial power plug
- Dimensions: Ø111 x 93mm (Ø4.4”x 3.7”) (Ø x H)
- Weight: 0.48kg (1.06lb)
- Material: Metal
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
