About the product

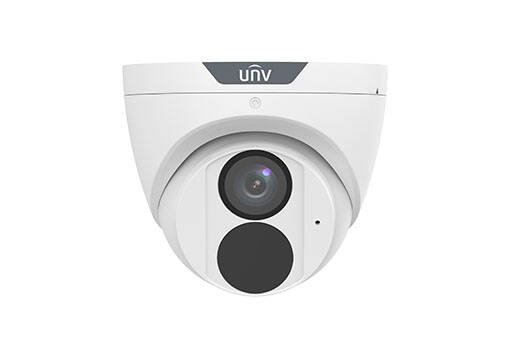

The Uniview 8MP IR Fixed Eyeball Network Camera is an easy-to-install, flexible 4mm eyeball camera that provides crystal-clear 8MP/4K (2160p) video quality from a 1/2.8'' CMOS sensor. The 120dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight. Smart IR kicks in for 0 Lux conditions, capturing high-quality videos of subjects up to 98 feet away, even when no additional light sources are available. Easystar low-light rendering supports accurate colour reproduction, even in environments as dim as 0.005 lux.
IP67 protection ensures 24/7 indoor or outdoor installation in virtually any environment. Supports microSD cards up to 512 GB for redundant recording backups (microSD card sold separately). PoE-powered, additional power options sold separately (DC 12V±25%, Ø 5.5mm coaxial power plug). Includes built-in mic for simultaneous audio recording.
IPC3618SR-ADF40KM-H Specs and Features
- Max Resolution: 8MP
- Sensor: 1/2.8"" CMOS
- Min. Illumination:
- Supports Easystar: Colour: 0.005 lux ( F1.6, AGC ON)
- 0 Lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- S/N: >52dB
- WDR: 120dB
- Focal Length: 4mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View:
- (H): 83.1°
- (V): 48.0°
- (D): 86.5°
- DORI Distance
- (Detect): 124.1m (407 ft)
- (Observe): 49.7m (163 ft)
- (Recognize): 24.8m (82 ft)
- (Identify): 12.4m (41 ft)
- Supplemental Light: IR
- Illumination Distance(IR): 30 m (98.4 ft)
- Wavelength: 850 nm
- IR On/Off Control: Auto/Manual
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps ~ 16 Mbps
- U-code: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual Streams
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Basic Detection
- Motion: Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection)
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 64 Kbps
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Network Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; 802.1x; SNMP
- Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
- Client: UNV-Link; UNV-Link Pro; EZStation
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 5.0W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions: ?111 x 95mm (?4.4” x 3.7”)
- Weight: 0.32kg (0.71lb)
- Material: Metal
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
Technical Specifications
The Uniview 8MP IR Fixed Eyeball Network Camera is an easy-to-install, flexible 4mm eyeball camera that provides crystal-clear 8MP/4K (2160p) video quality from a 1/2.8'' CMOS sensor. The 120dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight. Smart IR kicks in for 0 Lux conditions, capturing high-quality videos of subjects up to 98 feet away, even when no additional light sources are available. Easystar low-light rendering supports accurate colour reproduction, even in environments as dim as 0.005 lux.
IP67 protection ensures 24/7 indoor or outdoor installation in virtually any environment. Supports microSD cards up to 512 GB for redundant recording backups (microSD card sold separately). PoE-powered, additional power options sold separately (DC 12V±25%, Ø 5.5mm coaxial power plug). Includes built-in mic for simultaneous audio recording.
IPC3618SR-ADF40KM-H Specs and Features
- Max Resolution: 8MP
- Sensor: 1/2.8"" CMOS
- Min. Illumination:
- Supports Easystar: Colour: 0.005 lux ( F1.6, AGC ON)
- 0 Lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- S/N: >52dB
- WDR: 120dB
- Focal Length: 4mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View:
- (H): 83.1°
- (V): 48.0°
- (D): 86.5°
- DORI Distance
- (Detect): 124.1m (407 ft)
- (Observe): 49.7m (163 ft)
- (Recognize): 24.8m (82 ft)
- (Identify): 12.4m (41 ft)
- Supplemental Light: IR
- Illumination Distance(IR): 30 m (98.4 ft)
- Wavelength: 850 nm
- IR On/Off Control: Auto/Manual
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps ~ 16 Mbps
- U-code: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual Streams
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Basic Detection
- Motion: Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection)
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 64 Kbps
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Network Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; 802.1x; SNMP
- Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
- Client: UNV-Link; UNV-Link Pro; EZStation
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 5.0W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions: ?111 x 95mm (?4.4” x 3.7”)
- Weight: 0.32kg (0.71lb)
- Material: Metal
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
