About the product

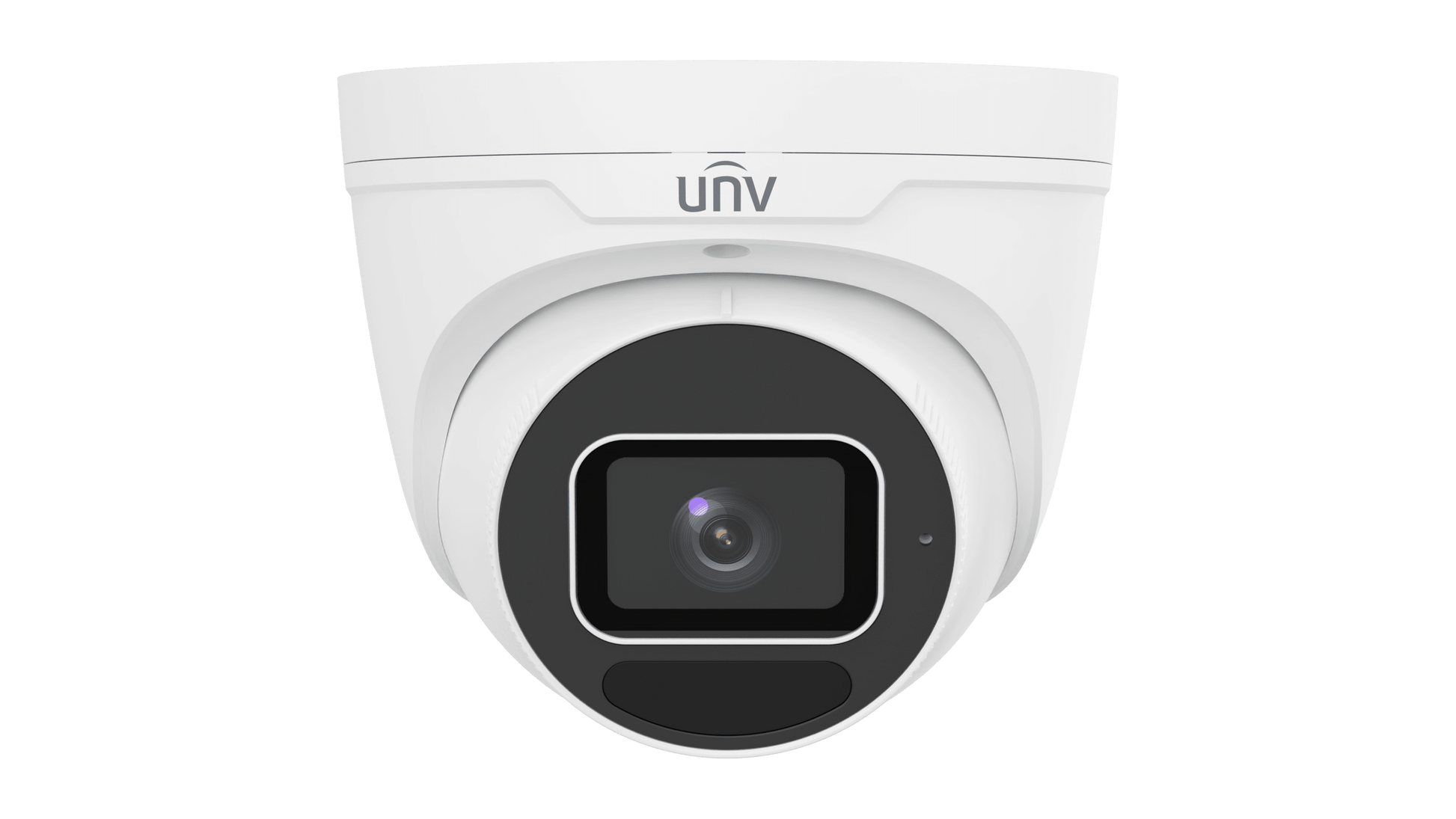

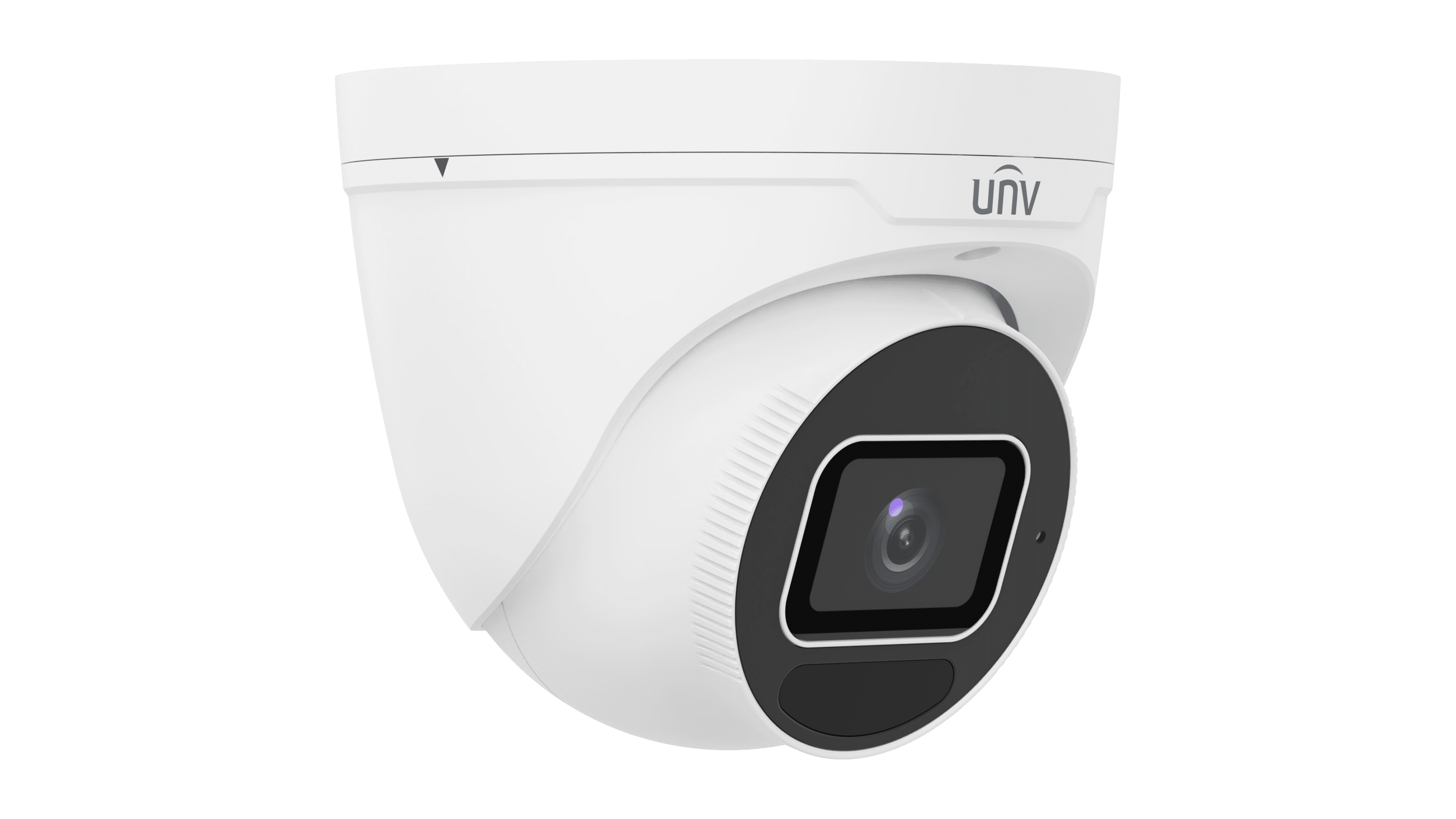

The Uniview 8MP Network Camera LightHunter Fixed IR Turret Camera provides crystal-clear, high-quality imaging day-or-night. Uniview LightHunter technology delivers vivid color reproduction, appropriate brightness, and extremely clear images in ultra-low light conditions; ideal for both light-free indoor installations (ie. server rooms, outbuildings) as well as rural properties with little to no light available for nighttime recording (as low as 0.01 lux). 130dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight. Smart IR kicks in for 0 Lux conditions, capturing high-quality videos of subjects up to 130 feet away, even when no additional light sources are available.
AI human and vehicle detection eliminates false alarms and ensures accurate and precise subject recording options, as well as automatically organizing footage by subject-- ensuring easy recording management and NVR playback. Intelligent features like perimeter protection, line cross protection, enter/leave area and intrusion detection prevents unauthorized trepassers from entering protected areas-- and the built-in mic and audio-out allows users to connect speakers for direct two-way audio to directly address visitors and subjects-- ideal for front-line security and automatic alarming, even without a dedicated on-site operator (additional hardware sold separately). Advanced people flow counting and crowd density monitoring technologies are ideal for high-traffic installs like malls, public walkways, parks, and more.
IP67 protection ensures 24/7 indoor or outdoor installation in virtually any environment. Supports microSD cards up to 512 GB for redundant recording backups (microSD card sold separately).
IPC3638SS-ADF28K-I1 Specs and Features
- Max Resolution: 8MP
- Sensor: 1/2.8"" CMOS
- Min. Illumination:
- Colour: 0.002 lux (F1.6, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
- S/N: >56dB
- WDR: 130dB
- Lens Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View
- (H): 97.49°
- (V): 52.31°
- (D): 102.29°
- Lens Type: Fixed
- Intelligent Features: Smart Intrusion Prevention, Supports False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection
- Recognition: Statistical Analysis, People Counting; supports people flow counting and crowd density monitoring
- Attribute Collection: SIP with color retrieval
- Events: Basic Detection, Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication; Alarm Input; Alarm Output
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported
- Audio Suppression: Supported
- Sampling Rate: 8 KHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Network Protocols: IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
- Client: UNV-Link; UNV-Link Pro; EZStation
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
- Supplemental Light: IR
- Illumination Distance(IR): 40 m (131.2 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps;4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352 x 288), Max 30fps
- Video Bit Rate: 128 Kbps ~ 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Audio I/O: 1/1; 1 Input: impedance 35k Ohm; amplitude 2V [p-p]; 1 Output: impedance 600 Ohm; amplitude 2V [p-p]
- Built-in Mic: Yes
- Built-in Speaker: No
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
Technical Specifications
The Uniview 8MP Network Camera LightHunter Fixed IR Turret Camera provides crystal-clear, high-quality imaging day-or-night. Uniview LightHunter technology delivers vivid color reproduction, appropriate brightness, and extremely clear images in ultra-low light conditions; ideal for both light-free indoor installations (ie. server rooms, outbuildings) as well as rural properties with little to no light available for nighttime recording (as low as 0.01 lux). 130dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight. Smart IR kicks in for 0 Lux conditions, capturing high-quality videos of subjects up to 130 feet away, even when no additional light sources are available.
AI human and vehicle detection eliminates false alarms and ensures accurate and precise subject recording options, as well as automatically organizing footage by subject-- ensuring easy recording management and NVR playback. Intelligent features like perimeter protection, line cross protection, enter/leave area and intrusion detection prevents unauthorized trepassers from entering protected areas-- and the built-in mic and audio-out allows users to connect speakers for direct two-way audio to directly address visitors and subjects-- ideal for front-line security and automatic alarming, even without a dedicated on-site operator (additional hardware sold separately). Advanced people flow counting and crowd density monitoring technologies are ideal for high-traffic installs like malls, public walkways, parks, and more.
IP67 protection ensures 24/7 indoor or outdoor installation in virtually any environment. Supports microSD cards up to 512 GB for redundant recording backups (microSD card sold separately).
IPC3638SS-ADF28K-I1 Specs and Features
- Max Resolution: 8MP
- Sensor: 1/2.8"" CMOS
- Min. Illumination:
- Colour: 0.002 lux (F1.6, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
- S/N: >56dB
- WDR: 130dB
- Lens Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View
- (H): 97.49°
- (V): 52.31°
- (D): 102.29°
- Lens Type: Fixed
- Intelligent Features: Smart Intrusion Prevention, Supports False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection
- Recognition: Statistical Analysis, People Counting; supports people flow counting and crowd density monitoring
- Attribute Collection: SIP with color retrieval
- Events: Basic Detection, Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication; Alarm Input; Alarm Output
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported
- Audio Suppression: Supported
- Sampling Rate: 8 KHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Network Protocols: IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
- Client: UNV-Link; UNV-Link Pro; EZStation
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
- Supplemental Light: IR
- Illumination Distance(IR): 40 m (131.2 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps;4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352 x 288), Max 30fps
- Video Bit Rate: 128 Kbps ~ 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Audio I/O: 1/1; 1 Input: impedance 35k Ohm; amplitude 2V [p-p]; 1 Output: impedance 600 Ohm; amplitude 2V [p-p]
- Built-in Mic: Yes
- Built-in Speaker: No
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
