About the product

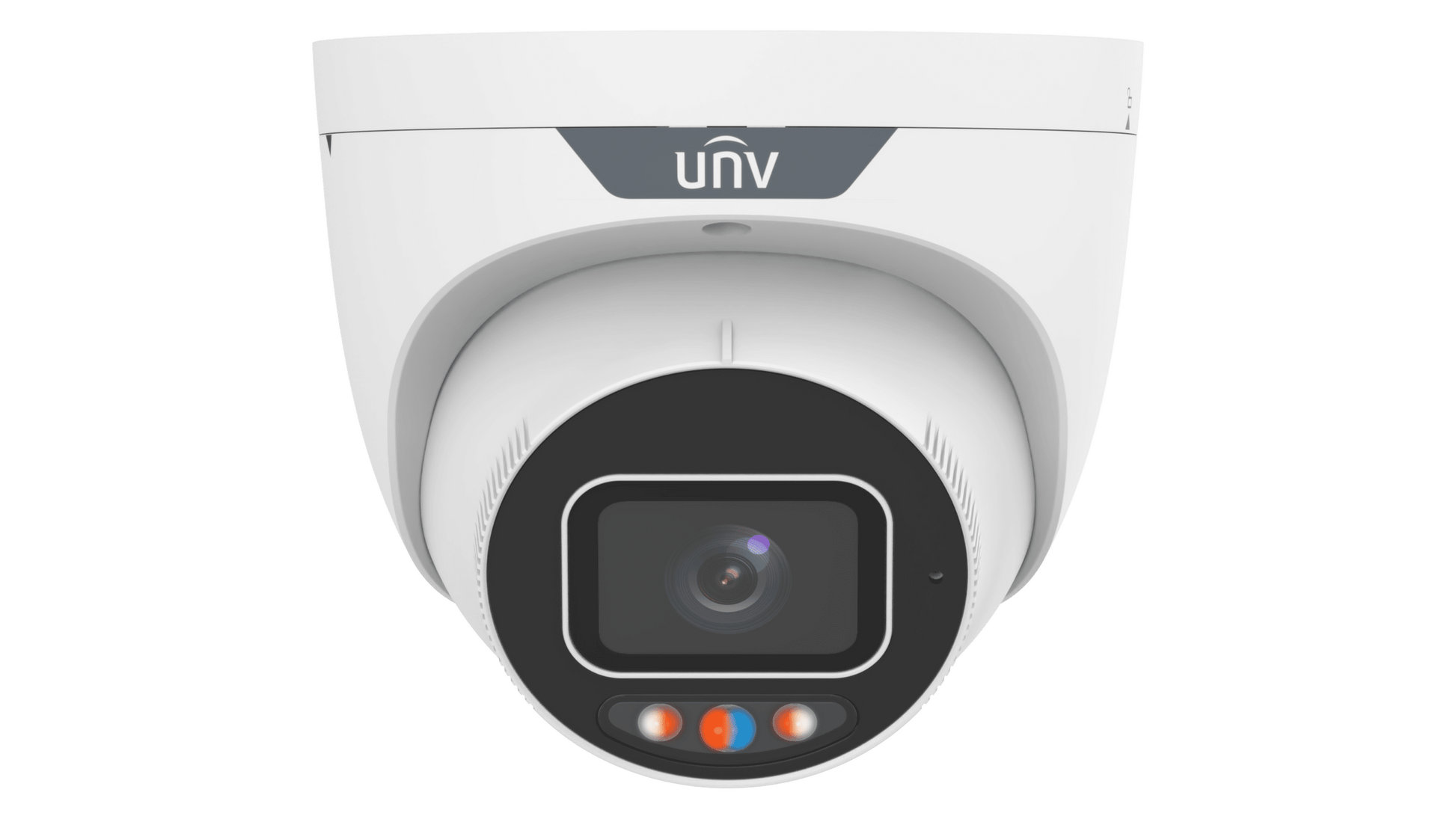

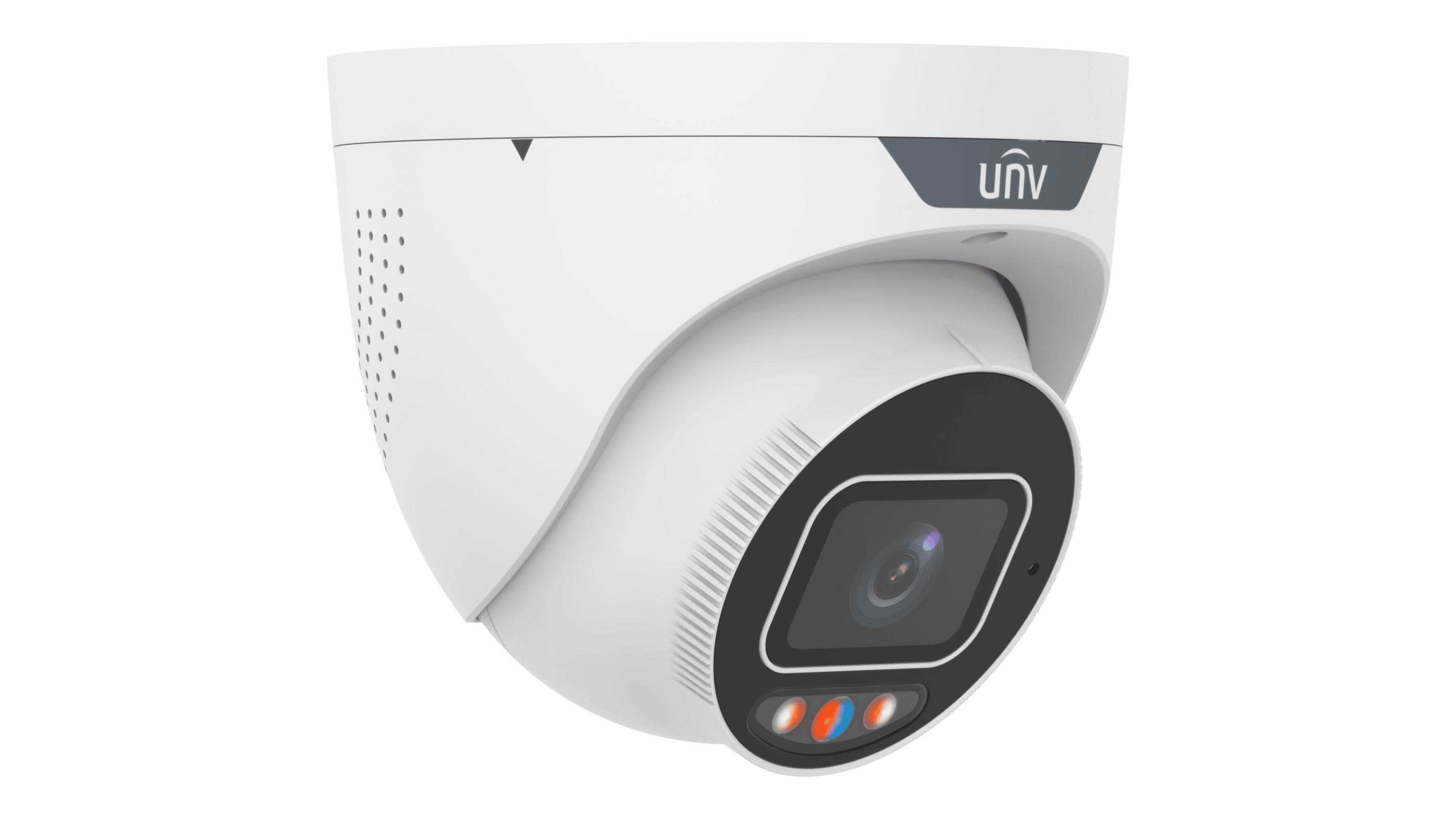

The Uniview 4K 8MP IP Turret with TriGuard 2.0 with Intelligent Light and Audio Deterrence is a front-line security solution—with intelligent perimeter (and line crossing) protection based on advanced target classification, significantly reducing false alarms from animals and debris, while flashing white, red & blue warning LEDs deter trespassers. Additional smart features like people flow counting and crowd density monitoring make it ideal for a wide range of applications—from rural properties to commercial buildings and businesses.
A 1/2.8’’ CMOS sensor paired with 130dB true WDR and 30m of IR recording enables crystal clear images, even in direct sunlight or at night, with a high-quality 8MP (3840 x 2160) image resolution for highly detailed recording. Built-in alarm in/out and integrated mic and speaker for live operator two-way audio ensures high-level security from a single intelligent camera.
IP67 protection allows for year-round outdoor or indoor use. Supports additional SD card for additional recording backup options (up to 512GB). Supports PoE or additional 12VDC coaxial power (sold separately).
IPC3638SS-ADF28KMC-I1 Specs
- Max Resolution: 8 MP
- Sensor: 1/2.8"" CMOS
- Min. Illumination
- Colour: 0.001 lux ( F1.0, AGC ON)
- 0 Lux with light
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle
- Pan: 0° ~ 360°
- Tilt: 0° ~ 80°
- Rotate: 0° ~ 360°
- S/N: >56 dB
- WDR: 130 dB
- Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.0
- Field of View (H): 106.5°
- Field of View (V): 57.9°
- Field of View (D): 132°
- DORI Distance:
- D: 86.9m(285.1ft)
- O: 34.8m(114.2ft)
- R: 17.4m(57.1ft)
- I: 8.7m(28.5ft)
- Supplemental Light: Dual light
- Illumination Distance (IR):
- IR: 30 m
- Warm Light: 30 m
- Illumination Distance (Warm Light)
- IR: 30 m
- Warm Light: 30 m
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Light On/Off Control: Auto/Manual
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream:8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Auto Scene Match (ASM): Support (Only WDR)
- Flip: Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting: Support People Flow Counting and Crowd Density Monitoring
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported
- Noise Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic
- Built-in Speaker
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1)m, UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 10.0W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø129 x 118mm (Ø5.1” x 4.7”) (Ø x H)
- Weight: 0.69kg (1.53lb)
- Material: Metal
- Working Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Storage Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Surge Protection: 4 KV
- Reset Button: Supported
Technical Specifications
The Uniview 4K 8MP IP Turret with TriGuard 2.0 with Intelligent Light and Audio Deterrence is a front-line security solution—with intelligent perimeter (and line crossing) protection based on advanced target classification, significantly reducing false alarms from animals and debris, while flashing white, red & blue warning LEDs deter trespassers. Additional smart features like people flow counting and crowd density monitoring make it ideal for a wide range of applications—from rural properties to commercial buildings and businesses.
A 1/2.8’’ CMOS sensor paired with 130dB true WDR and 30m of IR recording enables crystal clear images, even in direct sunlight or at night, with a high-quality 8MP (3840 x 2160) image resolution for highly detailed recording. Built-in alarm in/out and integrated mic and speaker for live operator two-way audio ensures high-level security from a single intelligent camera.
IP67 protection allows for year-round outdoor or indoor use. Supports additional SD card for additional recording backup options (up to 512GB). Supports PoE or additional 12VDC coaxial power (sold separately).
IPC3638SS-ADF28KMC-I1 Specs
- Max Resolution: 8 MP
- Sensor: 1/2.8"" CMOS
- Min. Illumination
- Colour: 0.001 lux ( F1.0, AGC ON)
- 0 Lux with light
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle
- Pan: 0° ~ 360°
- Tilt: 0° ~ 80°
- Rotate: 0° ~ 360°
- S/N: >56 dB
- WDR: 130 dB
- Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.0
- Field of View (H): 106.5°
- Field of View (V): 57.9°
- Field of View (D): 132°
- DORI Distance:
- D: 86.9m(285.1ft)
- O: 34.8m(114.2ft)
- R: 17.4m(57.1ft)
- I: 8.7m(28.5ft)
- Supplemental Light: Dual light
- Illumination Distance (IR):
- IR: 30 m
- Warm Light: 30 m
- Illumination Distance (Warm Light)
- IR: 30 m
- Warm Light: 30 m
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Light On/Off Control: Auto/Manual
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream:8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Auto Scene Match (ASM): Support (Only WDR)
- Flip: Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting: Support People Flow Counting and Crowd Density Monitoring
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported
- Noise Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic
- Built-in Speaker
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1)m, UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 10.0W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø129 x 118mm (Ø5.1” x 4.7”) (Ø x H)
- Weight: 0.69kg (1.53lb)
- Material: Metal
- Working Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Storage Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Surge Protection: 4 KV
- Reset Button: Supported
