About the product

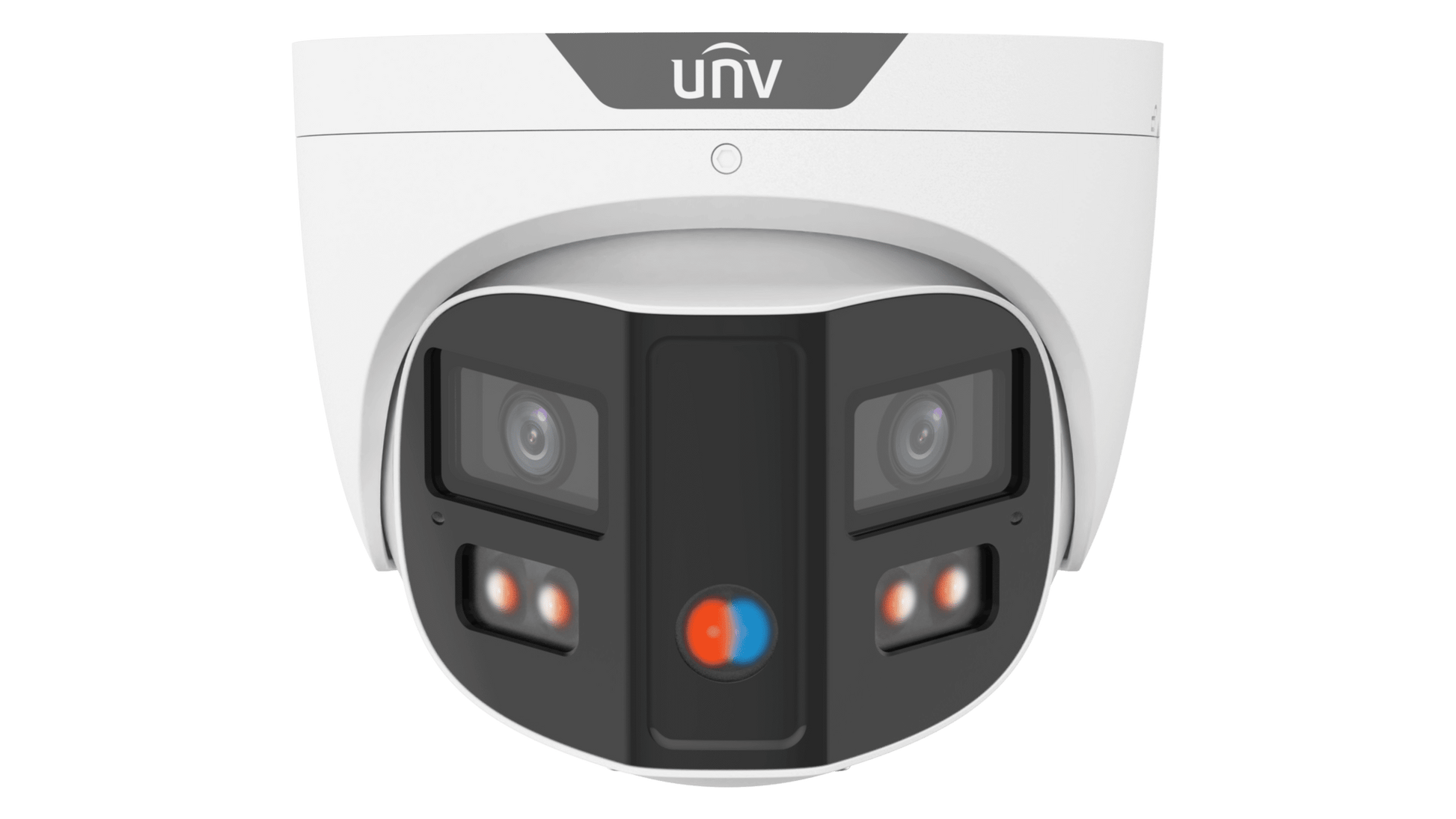

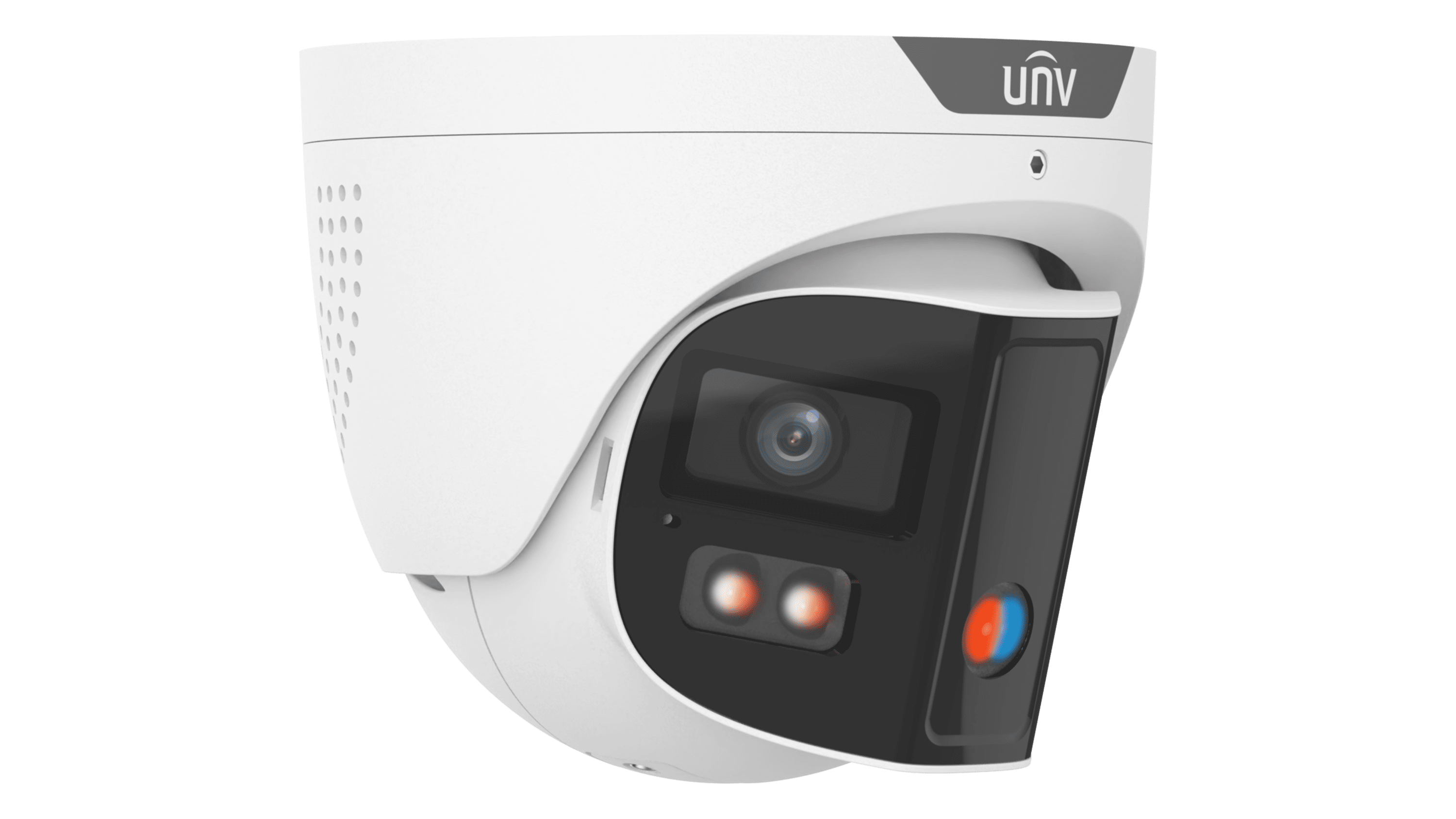

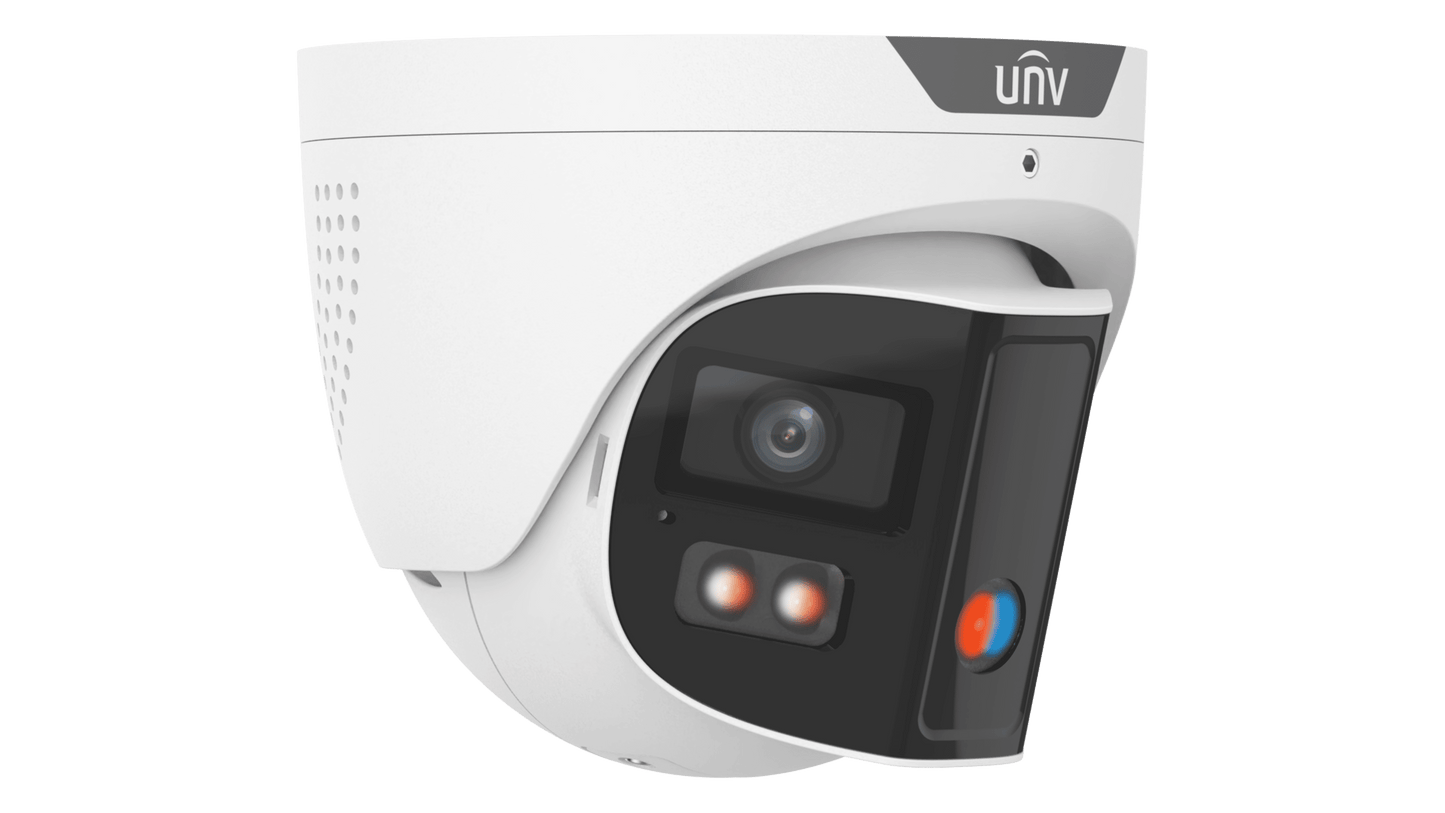

The Uniview 8MP ColorHunter Omniview Tri-Guard 2.0 180° Deterrence Turret Camera is a dual-lens, 24-hour full-colour surveillance camera with intelligent perimeter (and line crossing) protection based on advanced target classification, significantly reducing false alarms from animals and debris, and includes built-in flashing white, red & blue LEDs for active deterrance of trespassers and intruders.
Additional smart features like people flow counting and crowd density monitoring make it ideal for a wide range of applications—from rural properties to commercial buildings and businesses. Dual-lens splicing technology creates a seamless 180° picture, even around corners.
ColorHunter technology ensures true 24-hour colour reproduction in environments as dim as 0.0005 lux, and the additional warm light LED provides additional illumination up to 30m. Backup IR recording ensures image quality is preserved over colour reproduction in no-light indoor environments as well as extremely dim outdoor locations.
A 1/2.5’’ CMOS sensor paired with 130dB true WDR and 30m of IR recording enables crystal clear images, even in direct sunlight or at night, with a high-quality 8MP panoramic (4096 x 1860) image resolution for highly detailed perimeter recording. Built-in alarm in/out and integrated dual mic and speaker for live operator two-way audio ensures high-level security from a single intelligent camera node.
IP67 protection allows for year-round outdoor or indoor use. Supports additional SD card for additional recording backup options (up to 512GB).
IPC3K28SE-ADF28KMC-DL-I0 Specs and Features
- Max Resolution: 8 MP
- Sensor: 1/2.5"" CMOS
- Min. Illumination
- Colour: 0.0005 lux ( F1.0, AGC ON), 0 Lux with light
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- S/N: >52 dB
- WDR: 130 dB
- Lens Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.0
- Field of View
- (H): 180°
- (V): 65°
- (D): 180°
- Lens Type: Fixed
- DORI
- D: 63.1m(206.7ft)
- O: 25.2m(82.7ft)
- R: 12.6m(41.3ft)
- I: 6.3m(20.7ft)
- Supplemental Light: Dual light
- Illumination Distance (IR):
- IR: 30 m
- Warm Light: 30 m
- Illumination Distance (Warm Light):
- IR: 30 m
- Warm Light: 30 m
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Light On/Off Control: Auto/Manual
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (4096*1860), Max 20fps
- Sub Stream: 2048*936, Max 20fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Intelligent Features: Smart Intrusion Prevention, Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported
- Noise Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Network Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Built-in two mics
- Built-in Speaker
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Certification:
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 12.6W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø128.7 x 109.9mm (Ø5.1”x 4.3”) (Ø x H)
- Weight: 0.86kg (1.9lb)
- Material: Metal
- Working Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Storage Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Surge Protection: 4 KV
- Reset Button: Supported
Technical Specifications
The Uniview 8MP ColorHunter Omniview Tri-Guard 2.0 180° Deterrence Turret Camera is a dual-lens, 24-hour full-colour surveillance camera with intelligent perimeter (and line crossing) protection based on advanced target classification, significantly reducing false alarms from animals and debris, and includes built-in flashing white, red & blue LEDs for active deterrance of trespassers and intruders.
Additional smart features like people flow counting and crowd density monitoring make it ideal for a wide range of applications—from rural properties to commercial buildings and businesses. Dual-lens splicing technology creates a seamless 180° picture, even around corners.
ColorHunter technology ensures true 24-hour colour reproduction in environments as dim as 0.0005 lux, and the additional warm light LED provides additional illumination up to 30m. Backup IR recording ensures image quality is preserved over colour reproduction in no-light indoor environments as well as extremely dim outdoor locations.
A 1/2.5’’ CMOS sensor paired with 130dB true WDR and 30m of IR recording enables crystal clear images, even in direct sunlight or at night, with a high-quality 8MP panoramic (4096 x 1860) image resolution for highly detailed perimeter recording. Built-in alarm in/out and integrated dual mic and speaker for live operator two-way audio ensures high-level security from a single intelligent camera node.
IP67 protection allows for year-round outdoor or indoor use. Supports additional SD card for additional recording backup options (up to 512GB).
IPC3K28SE-ADF28KMC-DL-I0 Specs and Features
- Max Resolution: 8 MP
- Sensor: 1/2.5"" CMOS
- Min. Illumination
- Colour: 0.0005 lux ( F1.0, AGC ON), 0 Lux with light
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- S/N: >52 dB
- WDR: 130 dB
- Lens Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.0
- Field of View
- (H): 180°
- (V): 65°
- (D): 180°
- Lens Type: Fixed
- DORI
- D: 63.1m(206.7ft)
- O: 25.2m(82.7ft)
- R: 12.6m(41.3ft)
- I: 6.3m(20.7ft)
- Supplemental Light: Dual light
- Illumination Distance (IR):
- IR: 30 m
- Warm Light: 30 m
- Illumination Distance (Warm Light):
- IR: 30 m
- Warm Light: 30 m
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Light On/Off Control: Auto/Manual
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (4096*1860), Max 20fps
- Sub Stream: 2048*936, Max 20fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Intelligent Features: Smart Intrusion Prevention, Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported
- Noise Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Network Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Built-in two mics
- Built-in Speaker
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Certification:
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 12.6W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø128.7 x 109.9mm (Ø5.1”x 4.3”) (Ø x H)
- Weight: 0.86kg (1.9lb)
- Material: Metal
- Working Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Storage Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Surge Protection: 4 KV
- Reset Button: Supported
