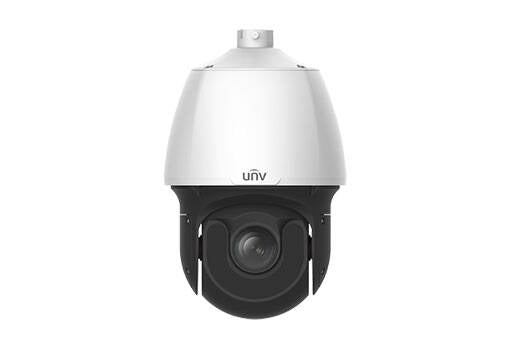

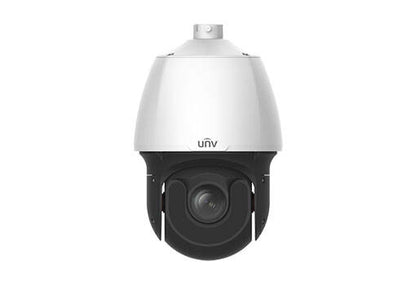

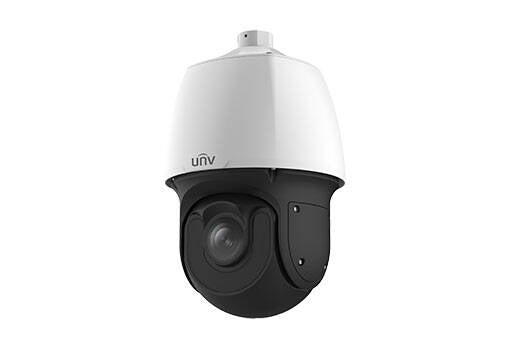

Uniview IP Network IR PTZ Dome Camera, 8MP 4K 25x Lighthunter, POE (IPC6658SR-X25-VF)

Name: Uniview IP Network IR PTZ Dome Camera, 8MP 4K 25x Lighthunter, POE (IPC6658SR-X25-VF)
Brand: UNV Uniview
SKU: AT564707
Price: 2074.99 CAD
Availability: InStock

$2,074.99 CAD

~~$2,323.99 CAD~~ $2,074.99 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Uniview IP Network IR PTZ Dome Camera, 8MP 4K 25x Lighthunter, POE (IPC6658SR-X25-VF)

VPN:IPC6658SR-X25-VF SKU:AT564707 UPC:810093329380

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Uniview IP Network IR PTZ Dome Camera, 8MP 4K 25x Lighthunter, POE (IPC6658SR-X25-VF)

About the product

Uniview IP Network IR PTZ Dome Camera, 8MP 25x Lighthunter, POE

Uniview IP Dome Camera Features

High quality image with 8MP,1/1.8’’ CMOS sensor
3840*2160@30fps in the mainstream
Ultra 265, H.265, H.264, MJPEG
25X Optical Zoom
Smart intrusion prevention, supports false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area Detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Lighthunter technology ensures ultra-high image quality in low illumination environment
Smart IR, up to 200m (656 ft) IR distance
AC 24V±25%, DC 24V±25% or PoE power supply
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP66 ingress protection

Uniview IP Dome Camera Specifications

Camera
- Sensor: 1/1.8"", 8.0 megapixel, progressive scan, CMOS
- Min. Illumination:
  - Color: 0.003 Lux (F1.5, AGC ON)
  - 0 Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: Digital-wide dynamic
- S/N: >56dB
Lens
- Lens: 6.0 ~ 150.0mm, AF automatic focusing and motorized zoom lens
- Digital Zoom: 16
- Optical Zoom: 25
- Iris: Auto; F1.5 ~ F3.4
- Field of View (H): 60.5° ~ 3.1°
- Field of View (V): 36.3° ~ 1.8°
- Field of View (D): 74.3° ~ 3.7°
DORI
- DORI Distance
  - Lens (mm): 6
    - Detect (m): 143.1(469.5ft)
    - Observe (m): 57.2(187.8ft)
    - Recognize (m): 28.6(93.9ft)
    - Identify (m): 14.3(46.9ft)
  - Lens (mm): 150
    - Detect (m): 3116.3 (10223.9ft)
    - Observe (m): 1246.5(4089.6ft)
    - Recognize (m): 623.3(2044.8ft)
    - Identify (m): 311.6(1022.4ft)
Illuminator
- IR ranges: Up to 200m(656ft)
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Frame Rate:
  - Main Stream: 8MP(3840*2160),Max 30fps;
  - Sub Stream: 2MP (1920*1080), Max 30fps;
  - Third Stream: D1 (720*576), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- ROI: Up to 8 areas
- Video stream: Triple streams
- OSD: Up to 8 OSDs
- Privacy Mask: 24 areas, up to 4 areas per scene
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal/Flip Vertical/Flip Horizontal/180°
- HLC: Support
- BLC: Support
- Defog: Digital Defog
Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area Detection
- People Counting: Support people flow counting and crowd density monitoring
Events
- Basic Detection: Motion detection, Audio detection, Tampering Alarm
- Auto Tracking: Support
- General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression: G.711U,G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Support
- Suppression: Support
- Sampling Rate: 8 kHz
Storage
- Edge Storage: Micro SD, up to 256 GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and common user
- Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
- Client:
  - EZStation
  - EZLive
  - EZView
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
- Pan Range: 360° (endless)
- Pan Speed:
  - 0.1°/s ~ 200°/s
  - Preset speed: 300°/s
- Tilt Range: –15° ~ 90° (auto reverse)
- Tilt Speed:
  - 0.1°/s ~ 200°/s
  - Preset speed: 240°/s
- Number of Presets: 1024
- Preset Patrol: 16 patrols, up to 64 presets for each patrol
- Route Patrol: 16 patrols, up to 32 actions for each patrol
- Recorded Patrol: 16 patrols, up to 128 actions for each patrol
- Patrol Stay Time: 15s~1800s
- Preset Image Freeze: Support
- Home Position: Support
Interface
- Audio I/O: 1/1
- Alarm I/O: 2/1
- Serial Port: 1 RS485
- Built-in Mic: N/A
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Video Output: 1 BNC, impedance 75?; amplitude 1V [p-p]
Certification
- EMC:
  - CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
  - FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety:
  - CE LVD (EN 62368-1:2014+A11:2017)
  - CB (IEC 62368-1:2014)
  - UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
- Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
- Power:
  - AC 24V±25%, DC 24V±25%, PoE (PSE Required)
  - Power consumption: Max 58W
- Power Interface: Wires with cold-pressed terminal
- Dimensions (Ø x H): Ø227 x 384.8mm (Ø8.9” x 15.1”)
- Weight: 5.61kg(12.36lb)
- Working Environment: -40?~70?(-40°F ~ 158°F) , Humidity: ?95% RH (non-condensing)
- Storage Environment: -40?~70?(-40°F ~ 158°F) , Humidity: ?95% RH (non-condensing)
- Surge protection: 6KV
- Reset Button: Support

Technical Specifications

Uniview IP Network IR PTZ Dome Camera, 8MP 25x Lighthunter, POE

Uniview IP Dome Camera Features

High quality image with 8MP,1/1.8’’ CMOS sensor
3840*2160@30fps in the mainstream
Ultra 265, H.265, H.264, MJPEG
25X Optical Zoom
Smart intrusion prevention, supports false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area Detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Lighthunter technology ensures ultra-high image quality in low illumination environment
Smart IR, up to 200m (656 ft) IR distance
AC 24V±25%, DC 24V±25% or PoE power supply
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP66 ingress protection

Uniview IP Dome Camera Specifications

Camera
- Sensor: 1/1.8"", 8.0 megapixel, progressive scan, CMOS
- Min. Illumination:
  - Color: 0.003 Lux (F1.5, AGC ON)
  - 0 Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: Digital-wide dynamic
- S/N: >56dB
Lens
- Lens: 6.0 ~ 150.0mm, AF automatic focusing and motorized zoom lens
- Digital Zoom: 16
- Optical Zoom: 25
- Iris: Auto; F1.5 ~ F3.4
- Field of View (H): 60.5° ~ 3.1°
- Field of View (V): 36.3° ~ 1.8°
- Field of View (D): 74.3° ~ 3.7°
DORI
- DORI Distance
  - Lens (mm): 6
    - Detect (m): 143.1(469.5ft)
    - Observe (m): 57.2(187.8ft)
    - Recognize (m): 28.6(93.9ft)
    - Identify (m): 14.3(46.9ft)
  - Lens (mm): 150
    - Detect (m): 3116.3 (10223.9ft)
    - Observe (m): 1246.5(4089.6ft)
    - Recognize (m): 623.3(2044.8ft)
    - Identify (m): 311.6(1022.4ft)
Illuminator
- IR ranges: Up to 200m(656ft)
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Frame Rate:
  - Main Stream: 8MP(3840*2160),Max 30fps;
  - Sub Stream: 2MP (1920*1080), Max 30fps;
  - Third Stream: D1 (720*576), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- ROI: Up to 8 areas
- Video stream: Triple streams
- OSD: Up to 8 OSDs
- Privacy Mask: 24 areas, up to 4 areas per scene
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal/Flip Vertical/Flip Horizontal/180°
- HLC: Support
- BLC: Support
- Defog: Digital Defog
Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area Detection
- People Counting: Support people flow counting and crowd density monitoring
Events
- Basic Detection: Motion detection, Audio detection, Tampering Alarm
- Auto Tracking: Support
- General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression: G.711U,G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Support
- Suppression: Support
- Sampling Rate: 8 kHz
Storage
- Edge Storage: Micro SD, up to 256 GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and common user
- Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
- Client:
  - EZStation
  - EZLive
  - EZView
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
- Pan Range: 360° (endless)
- Pan Speed:
  - 0.1°/s ~ 200°/s
  - Preset speed: 300°/s
- Tilt Range: –15° ~ 90° (auto reverse)
- Tilt Speed:
  - 0.1°/s ~ 200°/s
  - Preset speed: 240°/s
- Number of Presets: 1024
- Preset Patrol: 16 patrols, up to 64 presets for each patrol
- Route Patrol: 16 patrols, up to 32 actions for each patrol
- Recorded Patrol: 16 patrols, up to 128 actions for each patrol
- Patrol Stay Time: 15s~1800s
- Preset Image Freeze: Support
- Home Position: Support
Interface
- Audio I/O: 1/1
- Alarm I/O: 2/1
- Serial Port: 1 RS485
- Built-in Mic: N/A
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Video Output: 1 BNC, impedance 75?; amplitude 1V [p-p]
Certification
- EMC:
  - CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
  - FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety:
  - CE LVD (EN 62368-1:2014+A11:2017)
  - CB (IEC 62368-1:2014)
  - UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
- Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
- Power:
  - AC 24V±25%, DC 24V±25%, PoE (PSE Required)
  - Power consumption: Max 58W
- Power Interface: Wires with cold-pressed terminal
- Dimensions (Ø x H): Ø227 x 384.8mm (Ø8.9” x 15.1”)
- Weight: 5.61kg(12.36lb)
- Working Environment: -40?~70?(-40°F ~ 158°F) , Humidity: ?95% RH (non-condensing)
- Storage Environment: -40?~70?(-40°F ~ 158°F) , Humidity: ?95% RH (non-condensing)
- Surge protection: 6KV
- Reset Button: Support
