About the product

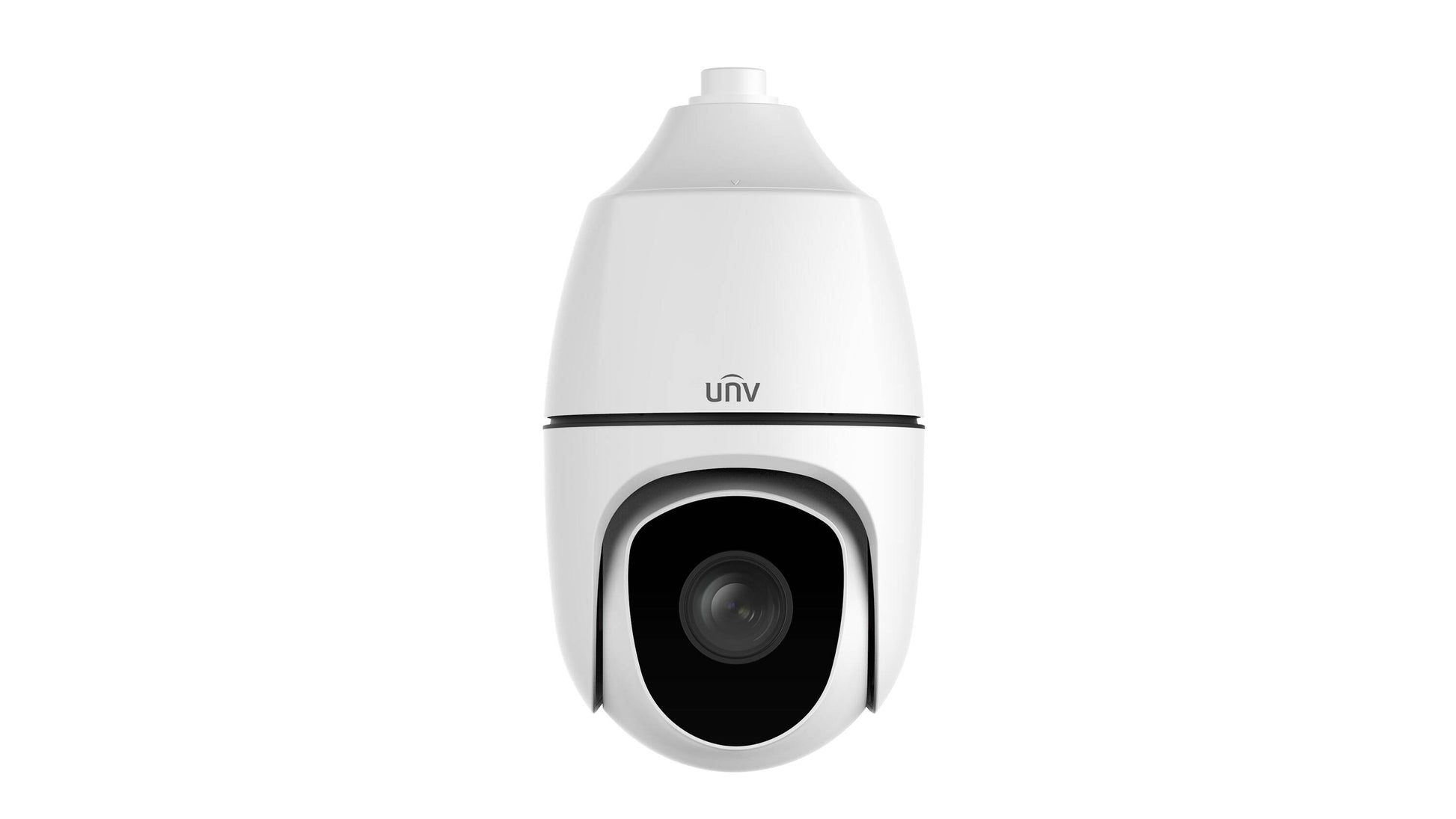

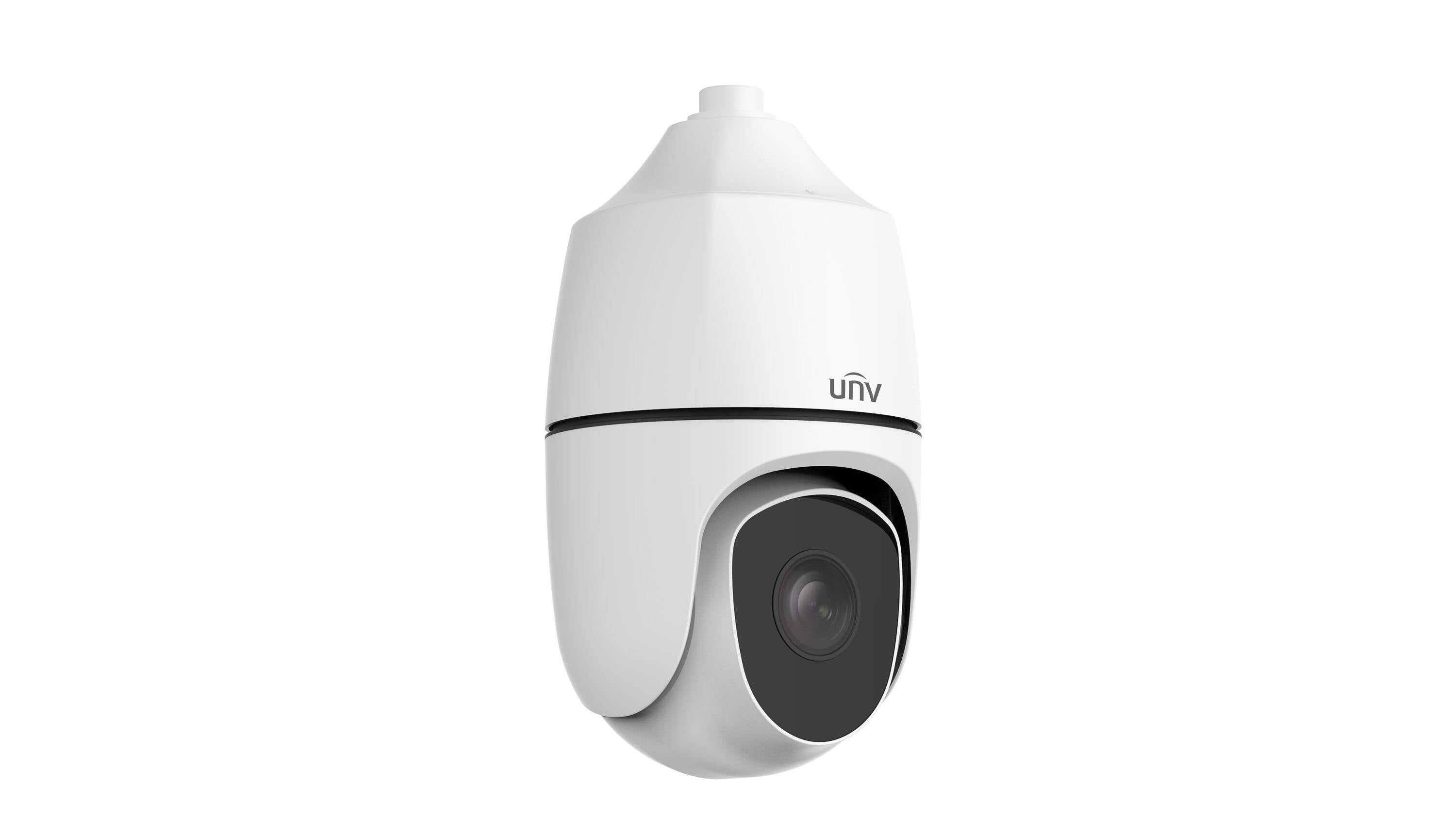

Uniview IPC6854ER-X40G-VF Network PTZ Dome, 4MP, 40X Lighthunter, IR cAMERA
Uniview IPC6854ER-X40G-VF Network PTZ Dome Camera Features:
- High quality image with 4MP,1/1.8’’ CMOS sensor
- 2688*1520@30fps in the mainstream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 40X Optical Zoom
- Smart intrusion prevention, supports false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area Detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Light hunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 250m (820ft) IR distance
- AC 24V±25%, DC 24V±25%,PoE++(IEEE802.3 bt)
- Alarm 7 in and 2 out, Audio 1 in and 1 out
- IP66 ingress protection
Uniview IPC6854ER-X40G-VF Network PTZ Dome Camera Specifications:
Camera
- Sensor: 1/1.8"", 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.005Lux (F1.2, AGC ON)
- 0Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: Digital WDR
- S/N: >56dB
- Lens
- Lens type: 5.7 ~ 228mm, AF automatic focusing and motorized zoom lens
- Digital Zoom: 16
- Optical Zoom: 40
- Iris: Auto; F1.2 ~ F4.6
- Field of View (H): 59.5° ~ 2.2°
- Field of View (V): 35.6° ~ 1.2°
- Field of View (D): 73.1° ~ 2.6°
- Illuminator
- IR Range: Up to 250m (820 ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Frame Rate:
- Main Stream: 4MP(2688*1520), Max 30fps;
- Sub Stream: 2MP (1920*1080), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- ROI: Up to 8 areas
- Video stream: Triple streams
- OSD: Up to 8 OSDs
- Privacy Mask: 24 areas, up to 4 areas per scene
- Image
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Flip: Normal/Flip Vertical/Flip Horizontal/180°
- EIS: Support
- HLC: Support
- BLC: Support
- Defog: Optical Defog & Digital Defog
- Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area Detection
- People Counting: Support people flow counting and crowd density monitoring
- Events
- Basic Detection: Motion detection, Audio detection, Tampering Alarm
- Auto Tracking: Support
- General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
- Audio
- Audio Compression: G.711U,G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Support
- Suppression: Support
- Sampling Rate: 8 kHz
- Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and common user
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
- Client:
- EZStation
- EZLive
- EZView
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Pan & Tilt
- Pan Range: 360° (endless)
- Pan Speed:
- 0.1°/s ~ 180°/s
- Preset speed: 300°/s
- Tilt Range: -15° ~ 90° (auto reverse)
- Tilt Speed:
- 0.1°/s ~ 180°/s
- Preset speed: 240°/s
- Number of Presets: 1024
- Preset Patrol: 16 patrols, up to 64 presets for each patrol
- Route Patrol: 16 patrols, up to 32 actions for each patrol
- Recorded Patrol: 16 patrols, up to 128 actions for each patrol
- Patrol Stay Time: 15s~1800s
- Preset Image Freeze: Support
- Home Position: Support
- Interface
- Audio I/O: 1/1
- Alarm I/O: 7/2
- Serial Port: 1 RS485
- Built-in Mic: N/A
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Video output: N/A
- Certification
- EMC:
- CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
- FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety:
- CE LVD (EN 62368-1:2014+A11:2017)
- CB (IEC 62368-1:2014)
- UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
- Protection: IP66 (IEC 60529:2001)
- EMC:
- General
- Power:
- AC 24V ±25%, DC 24V±25%, PoE ++(IEEE 802.3bt)
- Power consumption: MAX 61W
- Power Interface: Wires with cold-pressed terminal
- Dimensions (Ø x H): ?270 x 497mm (?10.6” x 19.6”)
- Weight: 9.69kg(21.36lb)
- Working Environment: -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ?95% RH (non-condensing)
- Storage Environment: -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 6KV
- Reset Button: Support
- Power:
Technical Specifications
Uniview IPC6854ER-X40G-VF Network PTZ Dome, 4MP, 40X Lighthunter, IR cAMERA
Uniview IPC6854ER-X40G-VF Network PTZ Dome Camera Features:
- High quality image with 4MP,1/1.8’’ CMOS sensor
- 2688*1520@30fps in the mainstream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 40X Optical Zoom
- Smart intrusion prevention, supports false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area Detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Light hunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 250m (820ft) IR distance
- AC 24V±25%, DC 24V±25%,PoE++(IEEE802.3 bt)
- Alarm 7 in and 2 out, Audio 1 in and 1 out
- IP66 ingress protection
Uniview IPC6854ER-X40G-VF Network PTZ Dome Camera Specifications:
Camera
- Sensor: 1/1.8"", 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.005Lux (F1.2, AGC ON)
- 0Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: Digital WDR
- S/N: >56dB
- Lens
- Lens type: 5.7 ~ 228mm, AF automatic focusing and motorized zoom lens
- Digital Zoom: 16
- Optical Zoom: 40
- Iris: Auto; F1.2 ~ F4.6
- Field of View (H): 59.5° ~ 2.2°
- Field of View (V): 35.6° ~ 1.2°
- Field of View (D): 73.1° ~ 2.6°
- Illuminator
- IR Range: Up to 250m (820 ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Frame Rate:
- Main Stream: 4MP(2688*1520), Max 30fps;
- Sub Stream: 2MP (1920*1080), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- ROI: Up to 8 areas
- Video stream: Triple streams
- OSD: Up to 8 OSDs
- Privacy Mask: 24 areas, up to 4 areas per scene
- Image
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Flip: Normal/Flip Vertical/Flip Horizontal/180°
- EIS: Support
- HLC: Support
- BLC: Support
- Defog: Optical Defog & Digital Defog
- Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area Detection
- People Counting: Support people flow counting and crowd density monitoring
- Events
- Basic Detection: Motion detection, Audio detection, Tampering Alarm
- Auto Tracking: Support
- General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
- Audio
- Audio Compression: G.711U,G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Support
- Suppression: Support
- Sampling Rate: 8 kHz
- Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and common user
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
- Client:
- EZStation
- EZLive
- EZView
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Pan & Tilt
- Pan Range: 360° (endless)
- Pan Speed:
- 0.1°/s ~ 180°/s
- Preset speed: 300°/s
- Tilt Range: -15° ~ 90° (auto reverse)
- Tilt Speed:
- 0.1°/s ~ 180°/s
- Preset speed: 240°/s
- Number of Presets: 1024
- Preset Patrol: 16 patrols, up to 64 presets for each patrol
- Route Patrol: 16 patrols, up to 32 actions for each patrol
- Recorded Patrol: 16 patrols, up to 128 actions for each patrol
- Patrol Stay Time: 15s~1800s
- Preset Image Freeze: Support
- Home Position: Support
- Interface
- Audio I/O: 1/1
- Alarm I/O: 7/2
- Serial Port: 1 RS485
- Built-in Mic: N/A
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Video output: N/A
- Certification
- EMC:
- CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
- FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety:
- CE LVD (EN 62368-1:2014+A11:2017)
- CB (IEC 62368-1:2014)
- UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
- Protection: IP66 (IEC 60529:2001)
- EMC:
- General
- Power:
- AC 24V ±25%, DC 24V±25%, PoE ++(IEEE 802.3bt)
- Power consumption: MAX 61W
- Power Interface: Wires with cold-pressed terminal
- Dimensions (Ø x H): ?270 x 497mm (?10.6” x 19.6”)
- Weight: 9.69kg(21.36lb)
- Working Environment: -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ?95% RH (non-condensing)
- Storage Environment: -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 6KV
- Reset Button: Support
- Power:
