About the product

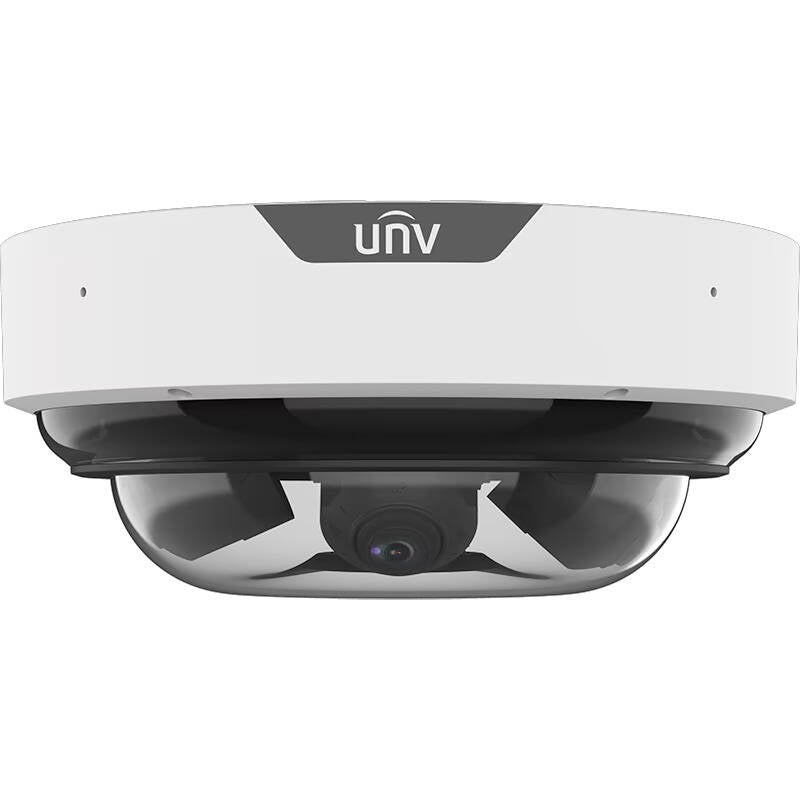

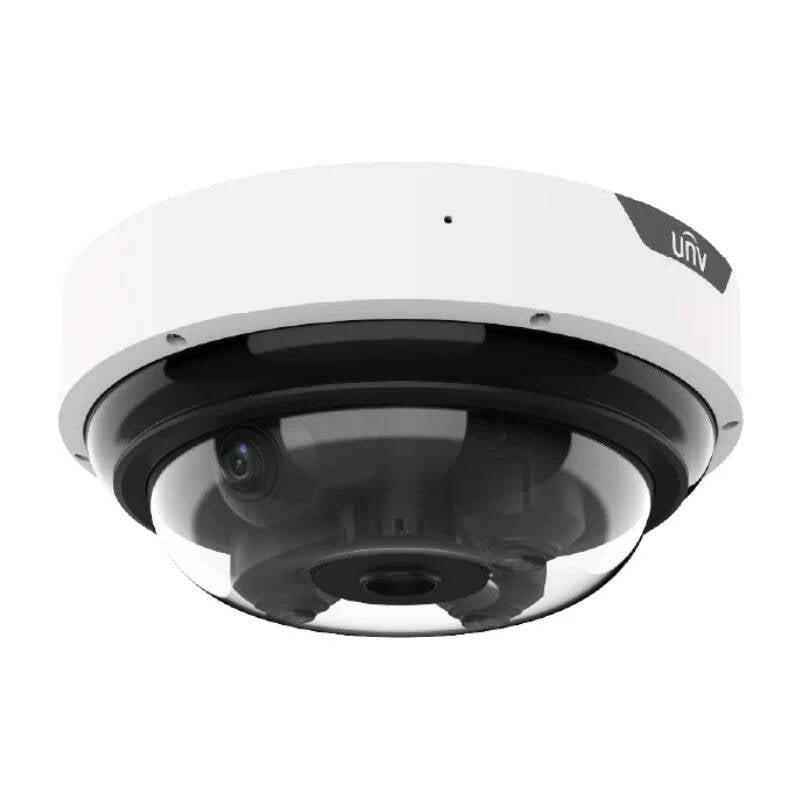

The Uniview Multi-Sensor Varifocal LightHunter IP Dome Camera packs 4x QHD video channels into a single IP source. Loaded with intelligent and analytics-gathering features like people counting (including crowd flow and density monitoring) and security features like line crossing, enter/leave area detection and people/vehicle detection enhance security coverage from 4 different zoomable inputs.
4 channel outputs can be adjusted to suit the install, including zooming from 2.7 – 13.5 mm—enabling detection as far away as 800 feet, or monitoring areas as wide as 110.3°. Suitable for complicated installs like food courts, universities, transport hubs and more.
IP67 ingress protection makes it suitable for outdoor installation, and IK10 vandal resistance ensures secure installation in high-traffic or public environments.
Built-in LightHunter technology ensures full-colour, high-quality recording in as little as 0.002 lux, and the additional smart IR illuminates subjects up to 50m (164 feet) away at night or when no additional lighting is available. Optical 130dB true WDR keeps subjects fully lit, even in challenging lighting conditions like direct sunlight; preventing common recording issues like blowouts, shadowed subjects or muddy daylight recordings.
IPC8645EA-ADZKM-I1 Specs and Features
- Sensor: 1/2.7"" CMOS
- Min. Illumination:
- Colour: 0.002 lux (F1.2, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 65°
- Rotate: 0° ~ 355°
- S/N: >56dB
- Focal Length: 2.7 ~ 13.5 mm
- Iris: F1.2 x 4
- Field of View:
- (H): (W)110.3°~(T)31°
- (V): (W)57.1°~(T)17.5°
- (D) (W)130.2°-(T)67.4°
- Lens Type: 5X
- Iris Type: Fixed
- Illumination Distance (IR): 50 m (164.0 ft)
- Wavelength: 850 nm
- IR On/Off Control: Auto/Manual
- Smart Intrusion Prevention: Cross line detection, Intrusion detection, Enter area detection, Leave area detection (supports false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting: Supports People Flow Counting and Crowd Density Monitoring
- Events: Motion, Tampering, Audio Detection, UMD (Ultra Motion Detection)
- Protocols: IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Video Bit Rate: 128 Kbps ~ 16 Mbps * 4Channel
- U-code: Supported
- ROI: Supported
- Video Stream: Triple streams
- OSD: Up to 10 OSDs * 4 Channel
- Privacy Mask: Up to 8 * 4Channel
- Audio Compression: G.711U; G.711A
- Two-way Audio: Supported
- Sampling Rate: 8 KHz
- Audio I/O: 1 Input: impedance 1k?; amplitude 2.5V [p-p]; 1 Output: impedance 600?; amplitude 2.5V [p-p]
- Alarm I/O: 3/2
- Built-in Mic: Yes
- Network: 10M/100M/1000M Base-TX Ethernet
- Corridor Mode: Yes
- Power: DC 24V±25%, AC 24V±25%, PoE (IEEE802.3bt)
- Built-in DC12V Output: Supported
- Power Consumption: Max 48.7W
- Power Interface: Wires with cold-pressed terminal
- Dimensions: ? 318 x 136.6 mm (? 12.52"" x 5.38"")(? x H)
- Weight: 4.77Kg?10.52lb?
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH
- Surge Protection: 6KV
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
Technical Specifications
The Uniview Multi-Sensor Varifocal LightHunter IP Dome Camera packs 4x QHD video channels into a single IP source. Loaded with intelligent and analytics-gathering features like people counting (including crowd flow and density monitoring) and security features like line crossing, enter/leave area detection and people/vehicle detection enhance security coverage from 4 different zoomable inputs.
4 channel outputs can be adjusted to suit the install, including zooming from 2.7 – 13.5 mm—enabling detection as far away as 800 feet, or monitoring areas as wide as 110.3°. Suitable for complicated installs like food courts, universities, transport hubs and more.
IP67 ingress protection makes it suitable for outdoor installation, and IK10 vandal resistance ensures secure installation in high-traffic or public environments.
Built-in LightHunter technology ensures full-colour, high-quality recording in as little as 0.002 lux, and the additional smart IR illuminates subjects up to 50m (164 feet) away at night or when no additional lighting is available. Optical 130dB true WDR keeps subjects fully lit, even in challenging lighting conditions like direct sunlight; preventing common recording issues like blowouts, shadowed subjects or muddy daylight recordings.
IPC8645EA-ADZKM-I1 Specs and Features
- Sensor: 1/2.7"" CMOS
- Min. Illumination:
- Colour: 0.002 lux (F1.2, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 65°
- Rotate: 0° ~ 355°
- S/N: >56dB
- Focal Length: 2.7 ~ 13.5 mm
- Iris: F1.2 x 4
- Field of View:
- (H): (W)110.3°~(T)31°
- (V): (W)57.1°~(T)17.5°
- (D) (W)130.2°-(T)67.4°
- Lens Type: 5X
- Iris Type: Fixed
- Illumination Distance (IR): 50 m (164.0 ft)
- Wavelength: 850 nm
- IR On/Off Control: Auto/Manual
- Smart Intrusion Prevention: Cross line detection, Intrusion detection, Enter area detection, Leave area detection (supports false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting: Supports People Flow Counting and Crowd Density Monitoring
- Events: Motion, Tampering, Audio Detection, UMD (Ultra Motion Detection)
- Protocols: IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR; NAS (NFS)
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Video Bit Rate: 128 Kbps ~ 16 Mbps * 4Channel
- U-code: Supported
- ROI: Supported
- Video Stream: Triple streams
- OSD: Up to 10 OSDs * 4 Channel
- Privacy Mask: Up to 8 * 4Channel
- Audio Compression: G.711U; G.711A
- Two-way Audio: Supported
- Sampling Rate: 8 KHz
- Audio I/O: 1 Input: impedance 1k?; amplitude 2.5V [p-p]; 1 Output: impedance 600?; amplitude 2.5V [p-p]
- Alarm I/O: 3/2
- Built-in Mic: Yes
- Network: 10M/100M/1000M Base-TX Ethernet
- Corridor Mode: Yes
- Power: DC 24V±25%, AC 24V±25%, PoE (IEEE802.3bt)
- Built-in DC12V Output: Supported
- Power Consumption: Max 48.7W
- Power Interface: Wires with cold-pressed terminal
- Dimensions: ? 318 x 136.6 mm (? 12.52"" x 5.38"")(? x H)
- Weight: 4.77Kg?10.52lb?
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH
- Surge Protection: 6KV
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
