About the product

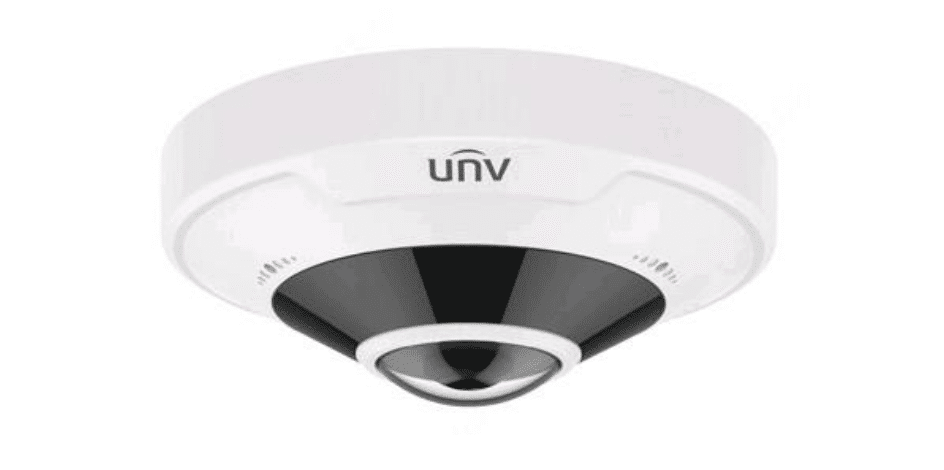

Uniview IP Network 12MP 360 Fish Eye Camera, IP66, IK10 Mic & Speaker
Uniview IP Network Fish Eye Camera Features
High quality image with 12MP,1/1.7’’ CMOS sensor
Max 4000*3000 resolution
Ultra265, H.265, H.264, MJPEG
Ultra wide angle lens, 360°panoramic image
Embedded infrared light, 360°fill-in light, up to 15m (49ft) IR distance
Multiple decoding modes support software and hardware modes, provide an interactive dynamic view
In the Heat map, based on deep learning algorithms, the date of moving objects is counted in real time on an intuitive color map
Built-in microphone & speaker, two-way talk supported
Supports 256 G Micro SD card
IK10 vandal resistant
IP67 protection
Uniview IP Network Fish Eye Camera Specifications
- Camera
- Sensor: 1/1.7"", 12.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.03Lux (F2.0, AGC ON)
- 0Lux with IR
- Day / Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
- WDR: DWDR
- S/N: >52dB
- Lens
- Lens type: 1.8mm@F2.0
- Field of View: 360°
- DORI
- DORI Distance
- Lens (mm): 1.8
- Detect (m): 43.8
- Observe (m): 17.5
- Recognize (m): 8.8
- Identify (m): 4.4
- Lens (mm): 1.8
- DORI Distance
- Illuminator
- IR Range: Up to 15m (49ft) IR range
- wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Video
- Compression: Ultra265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main Profile, High Profile
- Main Stream
- Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps;
- Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp;
- PTZ View: 1920*1080@20/25fps;
- Sub Stream: Fisheye View:2000*1500@20fps;2000*2000@25fps
- Third Stream: Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video stream: Triple streams
- Live View Display
- Mount Type: Support table, wall, and ceiling
- Hardware Decoding:
- Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view?vertical panorama view
- Table mount: fisheye view, fisheye + 4PTZ, , horizontal panorama view?vertical panorama view
- Wall mount: fisheye view, fisheye + 4PTZ, panorama view
- Software Decoding
- Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360°panorama + 6PTZ
- Table mount: fisheye view, 360°panorama + 1PTZ, 180°panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360°panorama + 6PTZ
- Wall mount: fisheye view, 180°panorama view, 180°panorama view+3PTZ, 180°panorama view+4PTZ, 180°panorama view+8PTZ
- Image
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal/Flip Vertical/ Flip Horizontal/180°
- Dewarping: N/A
- HLC: N/A
- BLC: Support
- Defog: Digital Defog
- Intelligent
- Smart intrusion prevention: Cross Line detection, Intrusion detection
- Statistical Analysis: Heat map(Working with management platform)
- Events
- Basic Detection: Motion detection, Audio detection, Tampering alarm
- General Function: Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
- Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way audio: Support
- Suppression: Support
- Sampling Rate: 8KHZ
- Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Network
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
- Client:
- EZStation
- EZView
- EZLive
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Interface
- Audio I/O:
- Input: impedance 35k?; amplitude 2V [p-p]
- Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O:
- 2/1
- Multiple Alarm linkage editable
- Built-in Mic: Two Mics
- Built-in Speaker: Support
- Serial: 1 channel RS485 interface
- Network: 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
- Video Output: 1 BNC, impedance 75?; amplitude 1V [p-p]
- Audio I/O:
- Certifications
- EMC:
- CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035:
- 2017+A11:2020)
- FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety:
- CE LVD (EN 62368-1:2014+A11:2017)
- CB (IEC 62368-1:2014)
- UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection:
- IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
- IK10 (IEC 62262:2002)
- EMC:
- General
- Power:
- DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 12W
- Dimensions (Ø x H): ?149 x 55mm (?5.9” x 2.2”)
- Weight: 524g
- Material: Metal + Plastic
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH
- Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH
- surge protection: 4kv
- Reset Button: Support
- Power:
