About the product

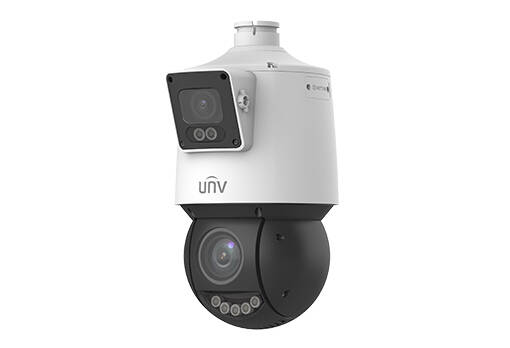

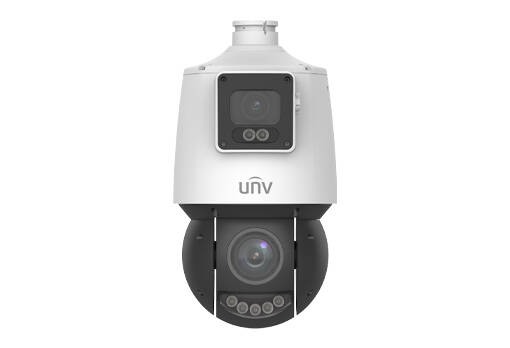

Uniview Network 4MP Lighthunter Dual-lens Network 25x PTZ Camera, Fixed
Visit Aartech's Uniview Resource Page for selection guides, design tools, accessories guides, support information and more.
BEST WARRANTY
Uniview UNV PTZ cameras purchased through Aartech Canada come with a 2 year exchange warranty. Advanced replacement available for Aartech gold and platinum dealers. Warranty and return details may be found here.
Uniview Network Dual-lens PTZ Camera Features
- Fixed camera and PTZ camera integration, dual channels with one IP, look at the overall situation and consider details at the same time
- Ultra 265, H.265, H.264, MJPEG
- 25X optical zoom of the PTZ channel allows for closer viewing of subjects
- Smart intrusion prevention, supports false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area Detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- PTZ channel can be linked to the fixed channel’s smart intrusion prevention to track the objects triggering the rule
- Support light warning makes warning and alarming more noticeable
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- IR & warm light illumination to deal with different scenes and achieve full-color illumination
- DC12V or PoE+(IEEE 802.3at) power supply
- Alarm 2 in and 1 out, Audio 1 in and 1 out
Uniview Network Dual-lens PTZ Camera Specifications
- Camera
- Camera: Panorama
- Sensor: 1/1.8"", 4MP, CMOS
- Min. Illumination:
- Color:0.0005 lux (F1.0, AGC ON)
- 0 lux with warm light
- Day/Night: N/A
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: 120dB
- S/N: ?56dB
- Camera: Detail
- Sensor: 1/2.7"", 4MP, CMOS
- Min. Illumination:
- Color:0.003 lux (F1.5, AGC ON)
- 0 lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: 120dB
- S/N: ?56dB
- Camera: Panorama
- Lens
- Camera: Panorama
- Lens type: 4mm@F1.0
- Optical Zoom: N/A
- Iris: Fixed aperture; F1.0
- Field of View (H): 94.9°
- Field of View (V): 51.5°
- Field of View (D): 116.7°
- Camera: Detail
- Lens type:
- 4.8~120mm@F1.5,
- AF automatic focusing and motorized zoom lens
- Optical Zoom: 25X
- Iris: Auto; F1.5(W)~F3.8(T)
- Field of View (H): 55.46° ~ 3.09°
- Field of View (V): 32.94° ~ 1.73°
- Field of View (D): 68.22° ~ 3.65°
- Lens type:
- Camera: Panorama
- DORI
- DORI Distance
- Lens (mm): 4 (Panorama)
- Detect (m): 62.1 (203.6 ft)
- Observe (m): 24.8 (81.5 ft)
- Recognize (m): 12.4 (40.7 ft)
- Identify (m): 6.2 (20.4 ft)
- Lens (mm): 4.8 (Detail)
- Detect (m): 123.8 (406.0 ft)
- Observe (m): 49.5 (162.4 ft)
- Recognize (m): 24.8 (81.2 ft)
- Identify (m): 12.4 (40.6 ft)
- Lens (mm): 120 (Detail)
- Detect (m): 2475.0 (8120.1 ft)
- Observe (m): 990.0 (3248.0 ft)
- Recognize (m): 495.0 (1624.0 ft)
- Identify (m): 247.5 (812.0 ft)
- Lens (mm): 4 (Panorama)
- DORI Distance
- Illuminator
- Camera: Panorama
- IR Range: N/A
- Warm Light Range: Up to 30m (98.4 ft)
- Wavelength: N/A
- Light On/Off Control: Auto/Manual
- Camera: Detail
- IR Range: Up to 100m (328.1 ft)
- Warm Light Range: N/A
- Wavelength: 850nm (IR)
- Camera: Panorama
- Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Frame Rate
- Camera: Panorama
- Main Stream: 4MP (2688*1520),Max 30fps;
- Sub Stream: 1080P (1920*1080), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps;
- Camera: Detail
- Main Stream: 4MP (2688*1520),Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps;
- Camera: Panorama
- Video Bit Rate: 128 Kbps ~ 16 Mbps
- U-code: Support
- ROI: Up to 8 areas
- Video stream: Triple streams
- OSD: Up to 8 OSDs
- Privacy Mask:
- Camera: Panorama
- Up to 4 areas per scene
- Camera: Detail
- 24 areas, up to 4 areas per scene
- Camera: Panorama
- Image
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal/Flip Vertical/Flip Horizontal/180°
- HLC: Support
- BLC: Support
- Defog: Digital defog
- Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
- People Counting: Support people flow counting and crowd density monitoring
- Linkage Function: Camera: Panorama Support. Triggered by fixed lens via smart intrusion prevention function to track target
- Events
- Basic Detection: Motion detection, Audio detection, Tampering Alarm
- Auto Tracking: Camera: Detail: Support
- General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
- Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Support
- Suppression: Support
- Sampling Rate: 8 kHz
- Storage
- Edge Storage: Micro SD, up to 256 GB
- Network Storage: ANR, NAS(NFS)
- Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and common user
- Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client:
- EZStation
- EZLive
- EZView
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Pan & Tilt
- Camera: Panorama
- Pan Range: N/A
- Pan Speed:
- N/A
- Preset speed: N/A
- Tilt Range: 18° ± 5°
- Tilt Speed:
- N/A
- Preset speed: N/A
- Camera: Detail
- Pan Range: 360°
- Pan Speed:
- 0.1°/s ~ 80°/s
- Preset speed: 80°/s
- Tilt Range: -15° ~ 90°
- Tilt Speed:
- 0.1°/s ~ 80°/s
- Preset speed: 80°/s
- Number of Presets: 1024
- Preset Patrol: 16 patrols, up to 64 presets for each patrol
- Route Patrol: 16 patrols, up to 32 actions for each patrol
- Recorded Patrol: 16 patrols, up to 128 actions for each patrol
- Patrol Stay Time: 15s~1800s
- Preset Image Freeze: N/A
- Home Position: Support
- Camera: Panorama
- Interface
- Audio I/O: 1/1
- Alarm I/O: 2/1
- Serial Port: 1 RS485
- Built-in Mic: N/A
- Built-in Speaker: Support
- Wi-Fi: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
- Certification
- EMC:
- CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
- FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety:
- CE LVD (EN 62368-1:2014+A11:2017)
- CB (IEC 62368-1:2014)
- UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
- EMC:
- General
- Power:
- DC12V (±25%), PoE+(IEEE 802.3at)
- Power consumption: MAX 24W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (Ø x H): ?163 x 304mm (?6.4” x 12.0”)
- Weight: 2.27kg (5.00lb)
- Working Environment: -40? ~ +65?(-40°F ~ +149°F)?Humidity: ?95% RH (non-condensing)
- Storage Environment: -40? ~ +70?(-40°F ~ +158°F)?Humidity: ?95% RH (non-condensing)
- Surge protection: 6KV
- Reset button: Support
- Power:
