About the product

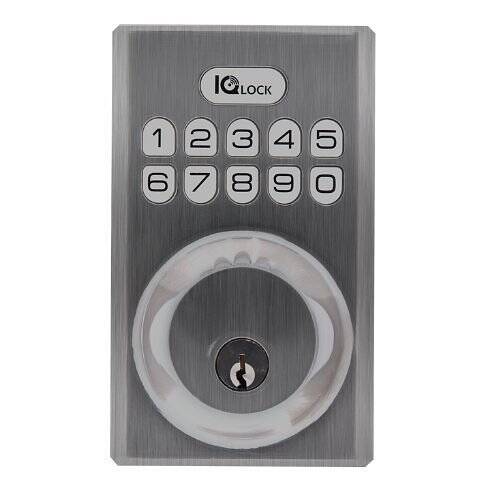

The IQ Lock-PG is a wireless smart, ANSI Grade 2 rated lock that allows wireless control from your PowerG-equipped control panel. Featuring extraordinarily stable and reliable long-range wireless transmission, the IQ Lock-PG is a robust, attractive solution for virtually any PowerG-based home access control system.
IQDLK-PGK-SN Specs:
- Self-Handing Supported
- Bolt Type Motorized / Standard deadbolt
- Backset 2 3/8”/ 2 3/4” Adjustable (60/70mm)
- Door Prep 1 1/2” / 2 1/8” (38/54mm)
- Door Thickness 1 3/8” ~ 2 1/4” (35-58mm) automatic adjustment
- Unlocking Method PowerG wireless communication (via App and Panel), Button keypad, key, thumb-turn
- Code Capacity User code x 250
- Code Length 4-8 digits
- Override Key Cylinder Yes
- Cylinder KW1 keyway
- Working Voltage DC 6V Battery (Not included) AA x 4
- Working Temperature Exterior: -31°F to 151°F (-35°C to 66°C)
- Interior: 32°F to 140°F (0°C to 60°C)
- IP Rating Exterior assembly: IP54
- Lockout Mode (Wrong entry limit) Keypad lockout for 3 minutes after 10 entries of invalid user code
- Low Battery Alarm Yes
- Battery Life Min. 12 months (6 user code unlock events, and 10 unlocking and locking cycles for each day)
- Certifications FCC, IC, ANSI BHMA A156.36 Grade 2, UL10C (20min Fire Rating)
- IoT Connection PowerG
- Product Weight 1.6KG/PCS (3.6 LB)
- Operating Humidity Exterior: 100% condensing
- Interior: 20% – 95% non-condensing
Technical Specifications
The IQ Lock-PG is a wireless smart, ANSI Grade 2 rated lock that allows wireless control from your PowerG-equipped control panel. Featuring extraordinarily stable and reliable long-range wireless transmission, the IQ Lock-PG is a robust, attractive solution for virtually any PowerG-based home access control system.
IQDLK-PGK-SN Specs:
- Self-Handing Supported
- Bolt Type Motorized / Standard deadbolt
- Backset 2 3/8”/ 2 3/4” Adjustable (60/70mm)
- Door Prep 1 1/2” / 2 1/8” (38/54mm)
- Door Thickness 1 3/8” ~ 2 1/4” (35-58mm) automatic adjustment
- Unlocking Method PowerG wireless communication (via App and Panel), Button keypad, key, thumb-turn
- Code Capacity User code x 250
- Code Length 4-8 digits
- Override Key Cylinder Yes
- Cylinder KW1 keyway
- Working Voltage DC 6V Battery (Not included) AA x 4
- Working Temperature Exterior: -31°F to 151°F (-35°C to 66°C)
- Interior: 32°F to 140°F (0°C to 60°C)
- IP Rating Exterior assembly: IP54
- Lockout Mode (Wrong entry limit) Keypad lockout for 3 minutes after 10 entries of invalid user code
- Low Battery Alarm Yes
- Battery Life Min. 12 months (6 user code unlock events, and 10 unlocking and locking cycles for each day)
- Certifications FCC, IC, ANSI BHMA A156.36 Grade 2, UL10C (20min Fire Rating)
- IoT Connection PowerG
- Product Weight 1.6KG/PCS (3.6 LB)
- Operating Humidity Exterior: 100% condensing
- Interior: 20% – 95% non-condensing
