About the product

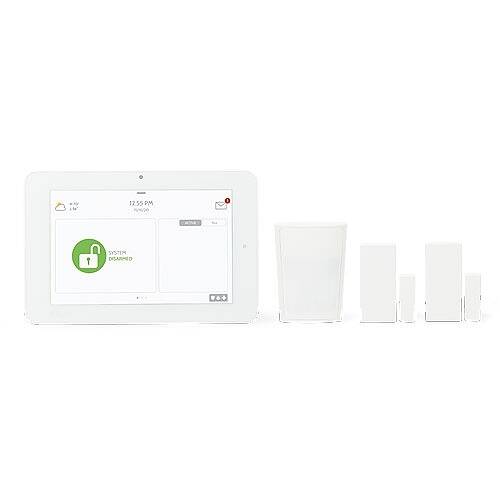

The Qolsys IQP4020 IQ Panel kit comes with the newest PowerG-equipped IQ Panel 4 and includes a PG9914 PIR-motion sensor and two PG9303 door/window contacts. The IQ Panel 4 features a built-in colour touch screen, 8 MP camera, glass break sensor, speakers, and Bluetooth. When not in use, the IQ Panel can also be used as a photo frame, and can even provide live viewing and answering of supported cameras & doorbells.
FLEXIBLE MOUNTING
The IQ Panel 4 can be mounted to the wall with the included wall mount bracket, or add an optional table stand or IQ base for use on a table, counter or shelf. The IQ base provides enhanced sound performance.
FLEXIBLE SENSORS
Qolsys IQ4 panels feature SWF providing built in PowerG support for long range and secure performance. In addition to PowerG, support for Interlogix, DSC or 2Gig sensors are available in specific models. Please be sure to order the model that matches your requirements when using Interlogix, 2Gig or DSC accessories.
COMMUNICATION
Alarm.com communication using cellular is built in to each Qolsys panel. Please confirm you are selecting the correct (AT&T or Telus) version for your installation.
SMART HOME
Use the Alarm.com powered ZWave support to connect with and control ZWave lights, switches, thermostats and locks.
POWER G TECHNOLOGY
PowerG is 2-way wireless communication technology designed to reduce operating costs and provide long range, secure, reliable performance. The multichannel, frequency hopping spread spectrum technology allows the system to ""hop"" between wireless frequencies for seamless, secure communications between the control panel and corresponding devices. The adaptive power provides long battery life, while the high transmission range allows devices to communicate up to four times further than many other wireless devices. The 128 bit AES encryption offers premium protection against analysis tools and digital attacks.
Qolsys IQP4020-KIT-PG Features:
- Screen size: 7 inch LCD, 1280 x 800 pixels resolution
- Dimensions: 6.1”H x 7.5”W x 1”D (155mm x 191mm x 26mm)
- Supports up to 242 user codes
- WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz – including built-in access point capability
- Built-in Telus LTE Communicator
- Built-in acoustic glass break detector
- Supports up to 137 ZWave devices using the built-in ZWave 700 reciever
- Supports up to 128 PowerG devices
- Camera: 8MP Wide-Angle, 120° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment
- Power supply: 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adapter evaluated at 120vAC for UL/cUL
- Kit includes 1x PG9914 PowerG PIR Motion Sensor and 2x PG9303 PowerG door/window sensors
- FCC, ICC and UL/cUL Certifications
Technical Specifications
The Qolsys IQP4020 IQ Panel kit comes with the newest PowerG-equipped IQ Panel 4 and includes a PG9914 PIR-motion sensor and two PG9303 door/window contacts. The IQ Panel 4 features a built-in colour touch screen, 8 MP camera, glass break sensor, speakers, and Bluetooth. When not in use, the IQ Panel can also be used as a photo frame, and can even provide live viewing and answering of supported cameras & doorbells.
FLEXIBLE MOUNTING
The IQ Panel 4 can be mounted to the wall with the included wall mount bracket, or add an optional table stand or IQ base for use on a table, counter or shelf. The IQ base provides enhanced sound performance.
FLEXIBLE SENSORS
Qolsys IQ4 panels feature SWF providing built in PowerG support for long range and secure performance. In addition to PowerG, support for Interlogix, DSC or 2Gig sensors are available in specific models. Please be sure to order the model that matches your requirements when using Interlogix, 2Gig or DSC accessories.
COMMUNICATION
Alarm.com communication using cellular is built in to each Qolsys panel. Please confirm you are selecting the correct (AT&T or Telus) version for your installation.
SMART HOME
Use the Alarm.com powered ZWave support to connect with and control ZWave lights, switches, thermostats and locks.
POWER G TECHNOLOGY
PowerG is 2-way wireless communication technology designed to reduce operating costs and provide long range, secure, reliable performance. The multichannel, frequency hopping spread spectrum technology allows the system to ""hop"" between wireless frequencies for seamless, secure communications between the control panel and corresponding devices. The adaptive power provides long battery life, while the high transmission range allows devices to communicate up to four times further than many other wireless devices. The 128 bit AES encryption offers premium protection against analysis tools and digital attacks.
Qolsys IQP4020-KIT-PG Features:
- Screen size: 7 inch LCD, 1280 x 800 pixels resolution
- Dimensions: 6.1”H x 7.5”W x 1”D (155mm x 191mm x 26mm)
- Supports up to 242 user codes
- WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz – including built-in access point capability
- Built-in Telus LTE Communicator
- Built-in acoustic glass break detector
- Supports up to 137 ZWave devices using the built-in ZWave 700 reciever
- Supports up to 128 PowerG devices
- Camera: 8MP Wide-Angle, 120° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment
- Power supply: 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adapter evaluated at 120vAC for UL/cUL
- Kit includes 1x PG9914 PowerG PIR Motion Sensor and 2x PG9303 PowerG door/window sensors
- FCC, ICC and UL/cUL Certifications
