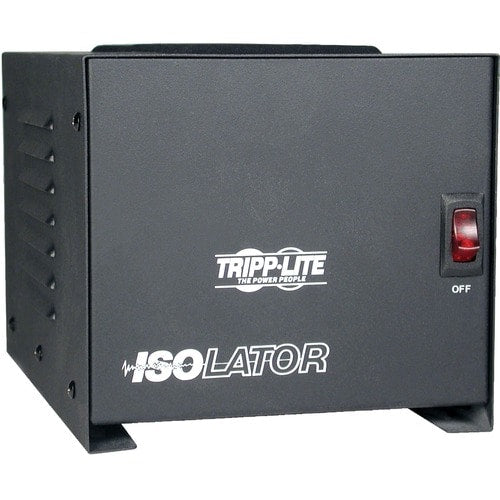

Tripp Lite IS1000 - Receptacles: 4 x NEMA 5-15R - 680J

Name: Tripp Lite IS1000 - Receptacles: 4 x NEMA 5-15R - 680J
Brand: Tripp Lite
SKU: RSC469282
Price: 564.02 CAD
Availability: InStock

$564.02 CAD

~~$631.71 CAD~~ $564.02 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Tripp Lite IS1000 - Receptacles: 4 x NEMA 5-15R - 680J

VPN:IS-1000 SKU:RSC469282 UPC:37332070067

Completely isolated protection with enhanced surge suppression and noise filtering
Faraday Shield offers 100% isolation from the input AC line
1000-watt continuous capacity with 4 NEMA 5-15R outlets

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Tripp Lite IS1000 - Receptacles: 4 x NEMA 5-15R - 680J

About the product

Get complete protection for sensitive devices and prevent power disruption with Tripp Lite's Isolator IS1000 Isolation Transformer. Featuring an internal isolation transformer with Faraday Shield, the IS1000 completely isolates equipment from line noise that can cause incremental but devastating equipment damage. Its 680-joule surge suppression rating protects equipment from surges and spikes caused by utility power disruptions and the operation of nearby equipment on the same circuit. Its 6-ft. power cord allows for flexibility during installation, while its built-in circuit breaker prevents dangerous circuit overloads. Its 1000-watt capacity allows it to be used with a variety of sensitive equipment. Its 4 widely spaced NEMA 5-15R outlets accommodate bulky transformers, and its lighted power switch offers convenient, one-touch power control. For peace of mind, the IS1000 features a rugged, all-metal housing.

Completely isolated protection with enhanced surge suppression and noise filtering
Faraday Shield offers 100% isolation from the input AC line

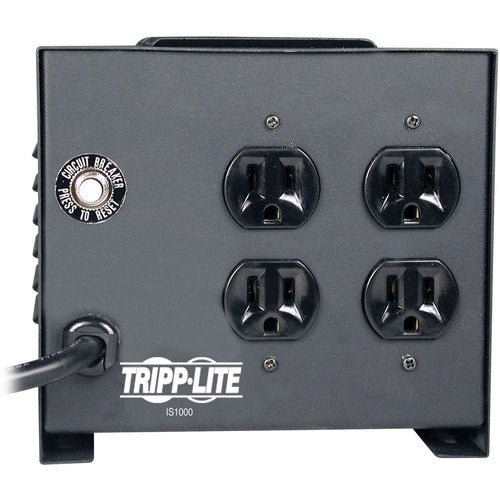

1000-watt continuous capacity with 4 NEMA 5-15R outlets
680-joule surge suppression rating
6-ft. power cord with NEMA 5-15P plug
9A circuit breaker provides overload protection
Convenient, lighted power switch for simple power control
2-year warranty

Technical Specifications

Technical Information
Protection Type	Surge
Receptacles	4 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Power Description
Circuit Breaker	Yes
Input Voltage	120 V AC
Power Handling	1 kVA
Output Voltage	120 V AC
Surge Energy Rating	680 J
Maximum Line Current	8.30 A
General Information
Product Type	Surge Suppressor/Protector
Manufacturer Part Number	IS1000
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer	Eaton Corporation
Product Model	IS1000
Product Name	IS1000 Isolation Transformer
Brand Name	Tripp Lite by Eaton
Miscellaneous
Additional Information	Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A Noise Suppression Rating: 33-65dB normal mode; >80dB common mode Surge Test Conditions: Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms Total Harmonic Distortion: less than 1% Transformer Type: Low impedence transformer-based line isolation transformer
Package Contents	IS1000 Isolation Transformer Owner's Manual
Compatibility	Point of Sale (POS) Equipment Telecommunications Systems Diagnostic Testing and Precise Measurement Devices Sophisticated CAD/CAM Workstations Computer Networking Equipment
Certifications & Standards	UL, cUL
Country of Origin	Taiwan
Environmentally Friendly	Yes
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate)	22.60 lb (10251.19 g)
Form Factor	External
Height	5.50" (139.70 mm)
Width	6.25" (158.75 mm)
Depth	8.50" (215.90 mm)
Power Cord/Cable Length	6 ft (1.83 m)
Product Color	Black
Color Family	Black
