Power equipment UPS
Expected delivery 3 to 7 business days (exceptions applied)
Tripp Lite
Tripp Lite ISOBAR6DBS - Receptacles: 6 x NEMA 5-15R - 2850J
Tripp Lite ISOBAR6DBS - Receptacles: 6 x NEMA 5-15R - 2850J
Regular price
$76.26 CAD
Regular price
$85.41 CAD
Sale price
$76.26 CAD
Unit price
/
per
Shipping calculated at checkout.
Tripp Lite ISOBAR6DBS - Receptacles: 6 x NEMA 5-15R - 2850J
VPN:ISOBAR6DBS SKU:RSC241369 UPC:37332011213
- 6 NEMA 5-15R outlets in exclusive isolated filter banks
- Network-grade 3330-joule surge protection rating
- 2-line 2.2 GHz gold coaxial protection
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details


Recently Viewed
Tripp Lite ISOBAR6DBS - Receptacles: 6 x NEMA 5-15R - 2850J
Product information summary

About the product
Premium protection for your expensive home theater and computer equipment, the ISOBAR6DBS Isobar® 6-Outlet Surge Protector features a network-grade surge protection rating of 3330 joules to defend your sensitive electronics against even the strongest surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $250,000 for life (valid in the U.S., Canada and Puerto Rico only).

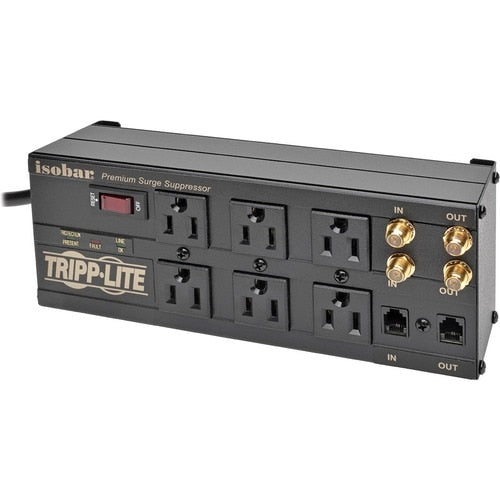

The ISOBAR6DBS features six NEMA 5-15R outlets, which are arranged in three exclusive isolated filter banks that prevent equipment connected to one bank from interacting with equipment connected to the other. These internal barriers also prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors remove EMI/RFI interference and prevent system crashes, reboots and performance problems. Coaxial and RJ11 jacks also protect your incoming cable, satellite and telephone/DSL signals.
Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the ISOBAR6DBS protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

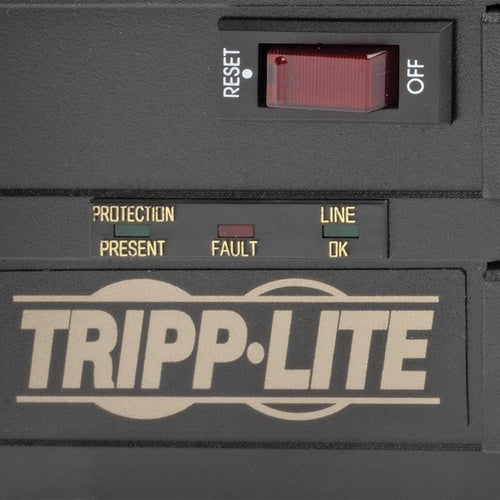

Included safety covers protect against dust while blocking accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. A lighted on/off switch provides one-touch control over connected components. Diagnostic LEDs show power, protection and line fault status at a glance. A six-foot power cord with right-angle 5-15P plug reaches nearby outlets and allows furniture to be placed flush against the wall.
The ISOBAR6DBS features six NEMA 5-15R outlets, which are arranged in three exclusive isolated filter banks that prevent equipment connected to one bank from interacting with equipment connected to the other. These internal barriers also prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors remove EMI/RFI interference and prevent system crashes, reboots and performance problems. Coaxial and RJ11 jacks also protect your incoming cable, satellite and telephone/DSL signals.
Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the ISOBAR6DBS protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G).
Included safety covers protect against dust while blocking accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. A lighted on/off switch provides one-touch control over connected components. Diagnostic LEDs show power, protection and line fault status at a glance. A six-foot power cord with right-angle 5-15P plug reaches nearby outlets and allows furniture to be placed flush against the wall.
- 6 NEMA 5-15R outlets in exclusive isolated filter banks
- Network-grade 3330-joule surge protection rating
- 2-line 2.2 GHz gold coaxial protection
- Coaxial cable/telephone line/modem surge protection
- 6 ft. AC power cord with right-angle NEMA 5-15P plug
- This product is covered by a Lifetime Limited Warranty (coverage details)
- $250,000 Ultimate Lifetime Insurance
Technical Specifications
Controls/Indicators | |
Status Indicators | |
Power Description | |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Surge Energy Rating | 3330 J |
Technical Information | |
Protection Type | Surge |
Receptacles | 6 x NEMA 5-15R |
Plug/Connector Type | NEMA 5-15P |
Miscellaneous | |
Additional Information |
|
Package Contents |
|
Compatibility | TYPICAL APPLICATIONS: Ideal for premium protection of satellite, home theater, computer, Web TV, cable modem, TV / VCR and DVD systems from surges on AC, coax signal lines and dialup phone connections. |
Certifications & Standards | UL1449, UL1283, UL1363, UL497A, FCC Part 68, cUL, Industry Canada, Exceeds IEEE 587 category A&B specifications |
Country of Origin | China |
Physical Characteristics | |
Weight (Approximate) | 2.80 lb (1270.06 g) |
Height | 2.50" (63.50 mm) |
Width | 9" (228.60 mm) |
Depth | 3.50" (88.90 mm) |
Power Cord/Cable Length | 6 ft (1.83 m) |
General Information | |
Product Type | Surge Suppressor/Protector |
Manufacturer Part Number | ISOBAR6DBS |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Name | ISOBAR6DBS |
Brand Name | Tripp Lite by Eaton |
