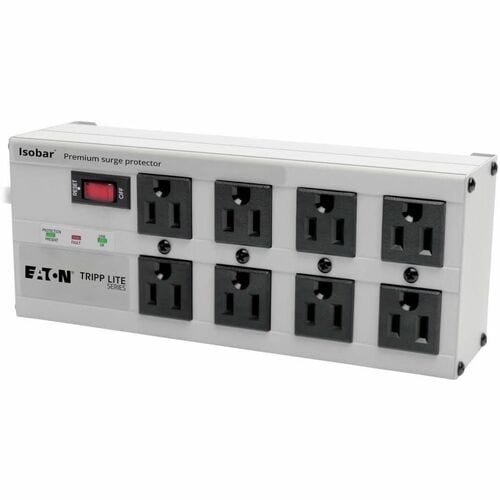

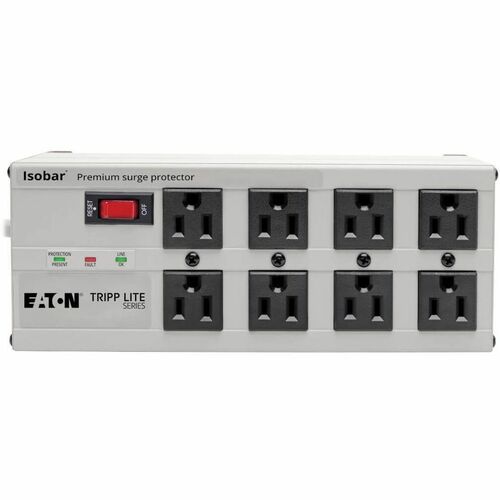

Tripp Lite Isobar Premium ISOBAR825ULT 8-Outlet Surge Suppressor, 25'
Tripp Lite Isobar Premium ISOBAR825ULT 8-Outlet Surge Suppressor, 25'
VPN:ISOBAR825ULTRA SKU:RSC873762 UPC:37332138286

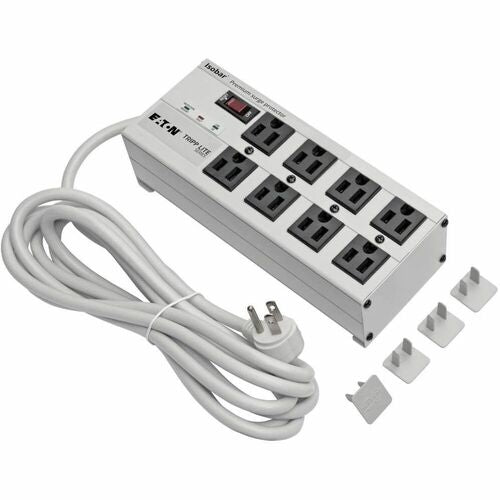

- 8 outlets / 25-ft. cord
- 3840 joule rating
- All metal housing with LEDs
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details







Recently Viewed
Tripp Lite Isobar Premium ISOBAR825ULT 8-Outlet Surge Suppressor, 25'
Product information summary

About the product
For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive computer, networking and telecom equipment. With more than 18 million satisfied customers, the Isobar remains the world's #1 selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR825ULTRA offers 8 outlets arranged in four filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3840 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 25 foot AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of 4 child safety covers.PLUG/OUTLETS: Input: NEMA 5-15P/Output: 8 NEMA5-15R/25-ft. AC line cordELECTRICAL: 120V AC, 50/60Hz (Requires NEMA 5-15R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/3840 joules/97,000 ampsFORMAT: Corded all-metal strip with transformer spaced outlets
- 8 outlets / 25-ft. cord
- 3840 joule rating
- All metal housing with LEDs
- Isolated filter banks
- $50,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
Technical Specifications
Technical Information | |
Receptacles | 8 x NEMA 5-15R |

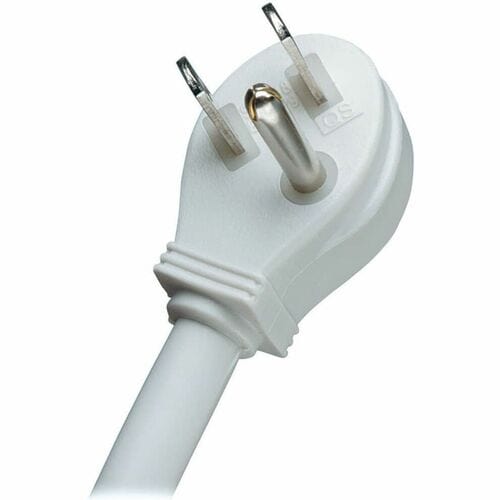

Plug/Connector Type | NEMA 5-15P |
Miscellaneous | |
Package Contents |
|
Compatibility |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics | |
Weight (Approximate) | 3.30 lb (1496.85 g) |
Height | 2.50" (63.50 mm) |
Width | 9" (228.60 mm) |
Depth | 3.50" (88.90 mm) |
Power Cord/Cable Length | 25 ft (7.62 m) |
Power Description | |
Input Voltage | 120 V AC |
Power Handling | 1.44 kVA |
Output Voltage | 120 V AC |
Surge Energy Rating | 3840 J |
Maximum Line Current | 15 A |
Maximum Surge Current | 97 kA |
General Information | |
Product Type | Surge Suppressor/Protector |
Manufacturer Part Number | ISOBAR825ULTRA |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | ISOBAR825ULTRA |
Product Name | Isobar ISOBAR825ULTRA 8-Outlet Surge Suppressor |
Product Line | Isobar |
Brand Name | Tripp Lite by Eaton |
