About the product

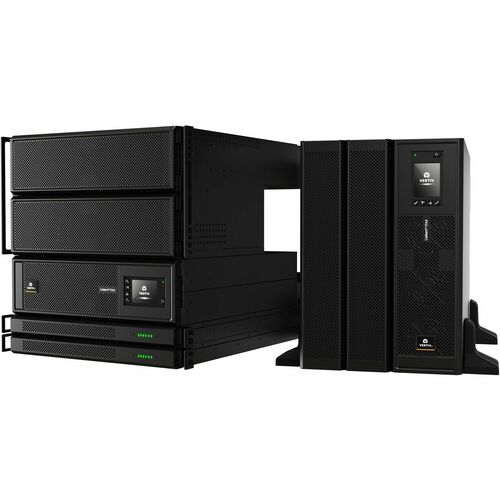

The Vertiv Liebert ITA2-BCI0020K02 is a hot-swappable, lead-acid UPS external battery cabinet (EBC) system that provides the Liebert ITA2 3-phase UPS systems (ITA2-08KRT208C and ITA2-10KRT208C) with extended battery runtimes. It offers rackmount or tower configuration options. The EBC System consists of (2) 2U cabinets per string (total 4U per string). It is easy to install and operate. The Liebert ITA2 UPS EBC has a 2-year warranty. The capability to add external battery cabinets provides scalable runtime for those applications requiring even a longer period of backup in case of AC mains failures.
- Adds scalable runtime capabilities to cover extended power outages
- Compatible with Liebert ITA2 3-Phase UPS systems
- Save space, small footprint
- Low operating costs
- Easy to use, minimizes human error
Technical Specifications
| Warranty | |
| Additional Warranty Information | 1 & 3 Additonal years optional |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Input Voltage | 384 V DC |
| Output Voltage | 384 V DC |
| Battery Characteristics | Valve-regulated/User Replaceable |
| General Information | |
| Product Type | Battery Cabinet |
| Manufacturer Part Number | ITA2-BCI0020K02 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | Liebert ITA2 |
| Product Name | ITA2-BCI0020K02 EBC |
| Product Series | ITA2 |
| Brand Name | Vertiv Liebert |
| Physical Characteristics | |
| Weight (Approximate) | 230 lb (104326.25 g) |
| Form Factor | Tower/Rack Mountable |
| Rack Height | 4U |
| Height | 3.30" (83.82 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 29.60" (751.84 mm) |
| Product Color | Black |
| Gray | |
| Color Family | Dual Color |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Compatibility | |
| Certifications & Standards | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) 2 | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
