About the product

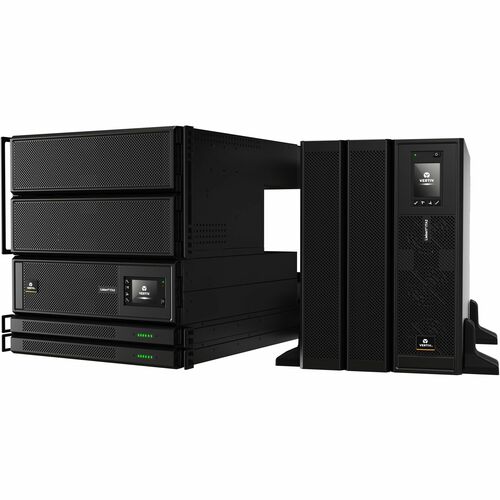

The Vertiv MPL for Liebert ITA2 External Battery Cabinet System allows rackmount or tower configuration. The EBC System consists of (2) 1U cabinets per string (total 2U per string) and provides the Liebert ITA2 UPS with extended battery runtimes. It is easy to install and operate. With Lithium-Ion batteries, it is space-saving, cost-effective and provides longer life.
- Save space, small footprint
- Low operating costs
- Easy to use, minimizes human error
- Designed for longer life
Technical Specifications
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Technical Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Input Voltage | 384 V DC |
| Output Voltage | 384 V DC |
| Battery Size | Proprietary Battery Size |
| Battery Capacity | 6000 mAh |
| Battery Characteristics | User Replaceable |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 50 lb (22679.62 g) |
| Form Factor | Tower/Rack Mountable |
| Height | 1.70" (43.18 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 29.50" (749.30 mm) |
| Product Color | Gray |
| Black | |
| Color Family | Dual Color |
| General Information | |
| Product Type | Battery Cabinet |
| Manufacturer Part Number | ITA2BCI0020KL1 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | Liebert ITA2 |
| Product Name | MPL for Liebert ITA2 |
| Product Series | ITA2 |
| Brand Name | Vertiv Liebert |
