About the product

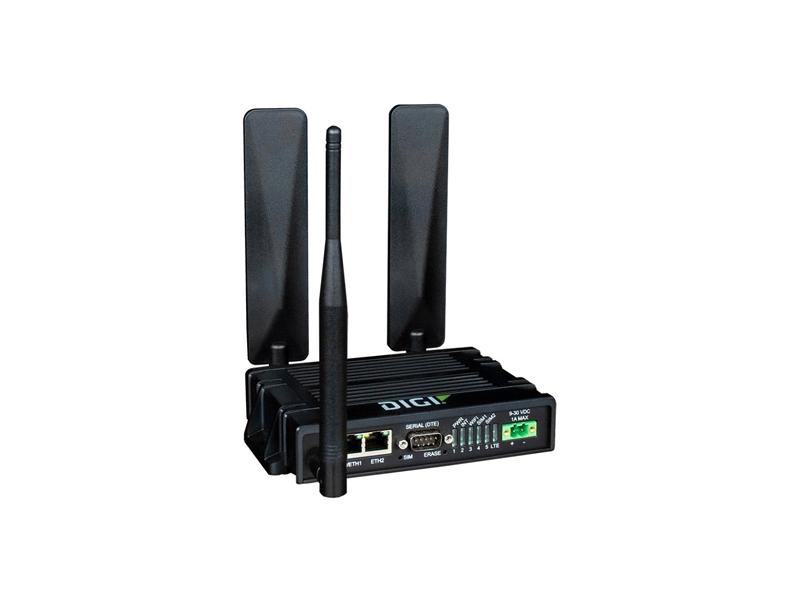

Digi IX20 is a full-featured cellular router that can scale from basic connectivity applications to industrial-class routing and security solutions. Its flexible power and connectivity options make it a versatile choice for use in industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions.The high-performance architecture of the Digi IX20 router provides primary and backup WWAN connectivity over software selectable multi-carrier LTE. Digi IX20 supports software features for advanced security (stateful firewall, MAC filtering and VPN), redundancy (Digi SureLink) and management (SNMP, event logging, analyzer trace and QOS), enabling it to be used in PCI or NERC-CIP compliant applications.Gain critical insights into your deployed devices and manage your network with Digi Remote Manager the command center for your deployment. Digi Remote Manager (Digi RM) is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support for hundreds or even thousands of remote Digi devices. Digi RM lets you evaluate, update and configure your Digi enterprise products and the health of your network at scale after deployment.The Digi IX20 family of routers has a single part number, which simplifies inventory control for global distribution and deployment. In addition, Digi IX20 is designed for Digi CORE plug-in LTE modems that can be changed out or upgraded without replacing the entire router."
Technical Specifications
| Primary Information | |
| Network Device Type: | Router |
| Model: | Digi IX20 |
| Networking / Ports Qty: | 2 |
| Flash Memory / Installed Size: | 256 MB |
| Power Consumption Operational: | 2.5 W typical (idle); 6 W typical (peak Tx/Rx) Watt |
| Power / Voltage Required: | 9 - 30 VDC |
| Interfaces: | (2) RJ-45; 10/100 Mbps (auto-sensing); (1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS) |
| Antenna Type: | Antenna |
| Features: | Dimension: 4.21 in x 6.38 in x 1.38 in |
| Networking | |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | Fast Ethernet |
| Frequency Band: | 2.4 GHz; 5 GHz |
| Encryption Algorithm: | WPA2; WPA |
| Status Indicators: | STATUS LEDs |
| Remote Management Protocol: | CLI; SNMP 3; SSH; SNMP 2 |
| RAM / Total Installed Size: | 256 MB |
| Cellular Technology: | LTE |
| Dimensions&Miscellaneous | |
| Depth: | 4.21 Inch |
| Height: | 6.38 Inch |
| Weight: | 0.65 kg (1.4 lb) |
| Service&Support | |
| Service & Support Type: | 3-year Warranty |
| Special Feature | |
| Min Operating Temperature: | Models with Wi-Fi: -20 to 70 Celsius; Models without Wi-Fi: -40 to 70 Celsius |
| Max Operating Temperature: | Models with Wi-Fi: -20 to 70 Celsius; Models without Wi-Fi: -40 to 70 Celsius |
| Humidity Range Operating: | 5% to 95% (non-condensing) |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
