About the product

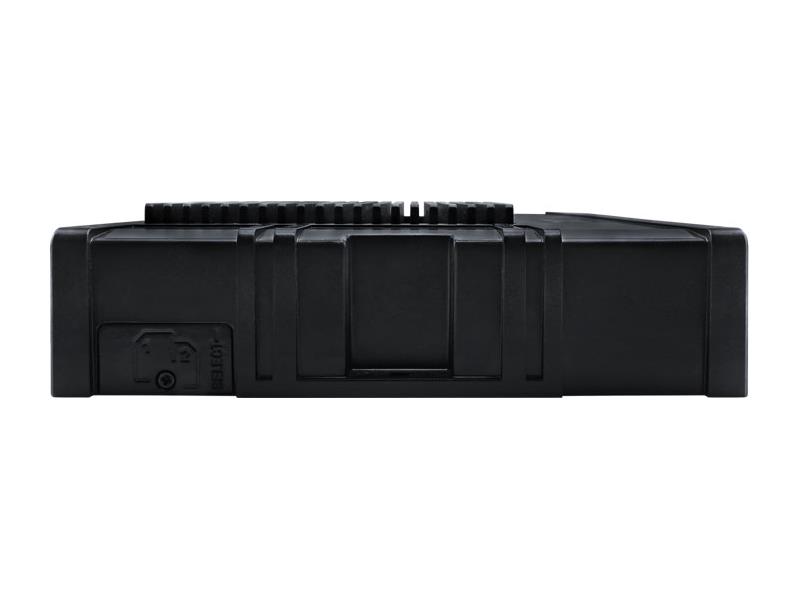

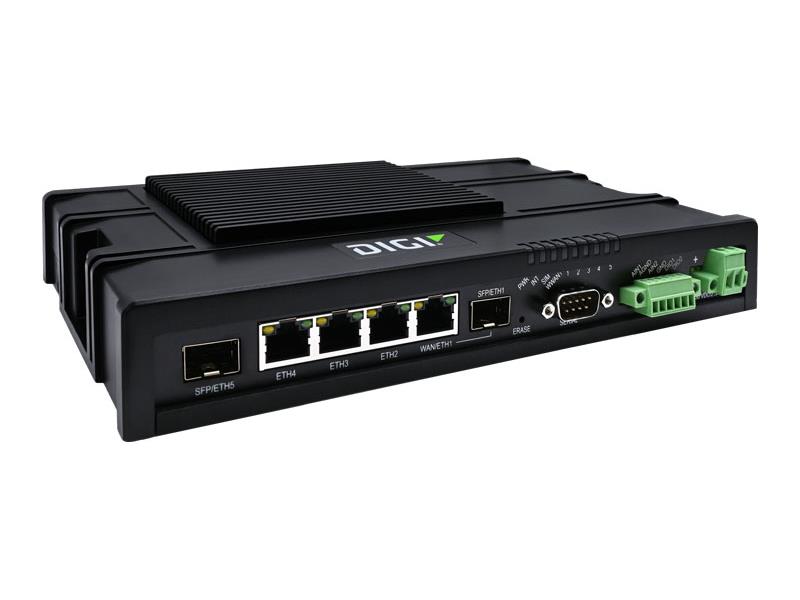

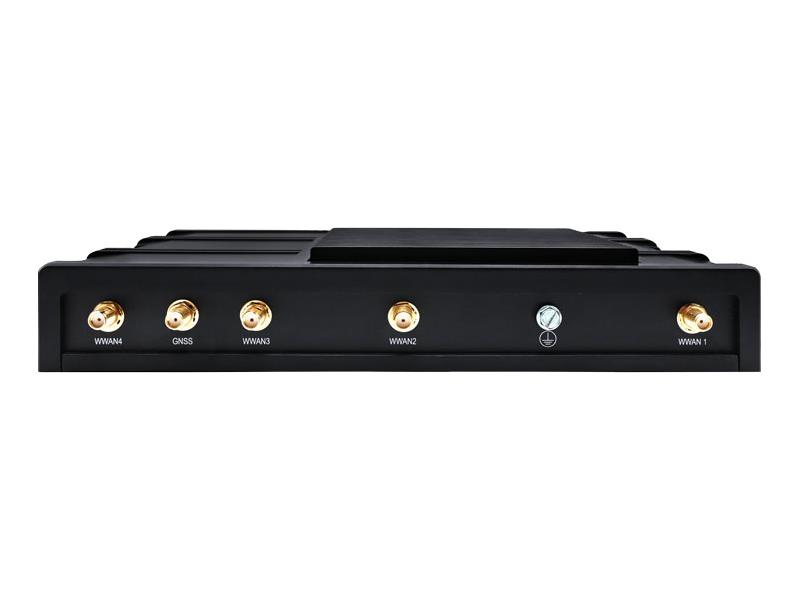

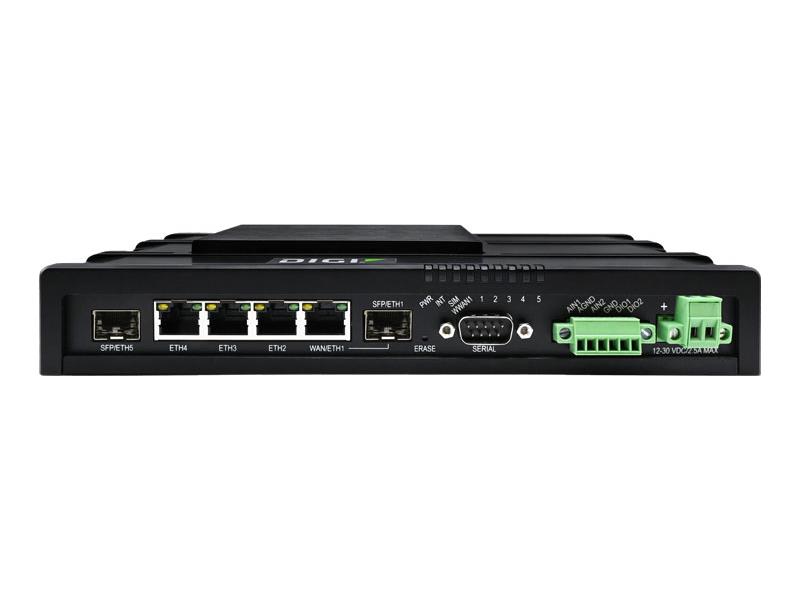

Ix40-05: 5G With Lte Cat 19 And 3G Fallback, Quad Ethernet, Dual Sfp, R-232/422/485, Gnss, Firstnet Capable
Technical Specifications
| Primary Information | |
| Network Device Type: | Router |
| Model: | IX40-05 |
| Networking / Ports Qty: | 7 |
| Routing Protocol: | gigabit ethernet |
| Processor / Type: | ARM |
| Processor / Number: | Cortex A53 |
| Processor / Clock Speed: | 1.6 GHz |
| RAM / Total Installed Size: | 1 GB |
| Flash Memory / Installed Size: | 8 GB |
| Power / Voltage Required: | 12 to 30 VDC |
| Interfaces: | (4) RJ-45; 10/100/1000 Mbps Base-T;(2) Digital input/outputs; (2) analog inputs;(2) 1 Gb capable SFP;(1) RS-232/422/485; DB-9 male (DTE) |
| Antenna Type: | Antenna |
| Humidity Required: | Relative humidity: 0% to 95% (non-condensing) at 25 C (77 F) |
| Networking | |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1000 Mbps |
| Data Link Protocol: | Gigabit Ethernet |
| Transport Protocol: | Gigabit Ethernet |
| Cellular Technology: | LTE |
| Cellular Service Provider: | T-Mobile; AT&T |
| Cellular Generation: | 5G |
| Dimensions&Miscellaneous | |
| Width: | 154 Mm |
| Depth: | 234 Mm |
| Height: | 41 Mm |
| Weight: | 1.14 kg |
| Special Feature | |
| Min Operating Temperature: | -30 Celsius |
| Max Operating Temperature: | 70 Celsius |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
