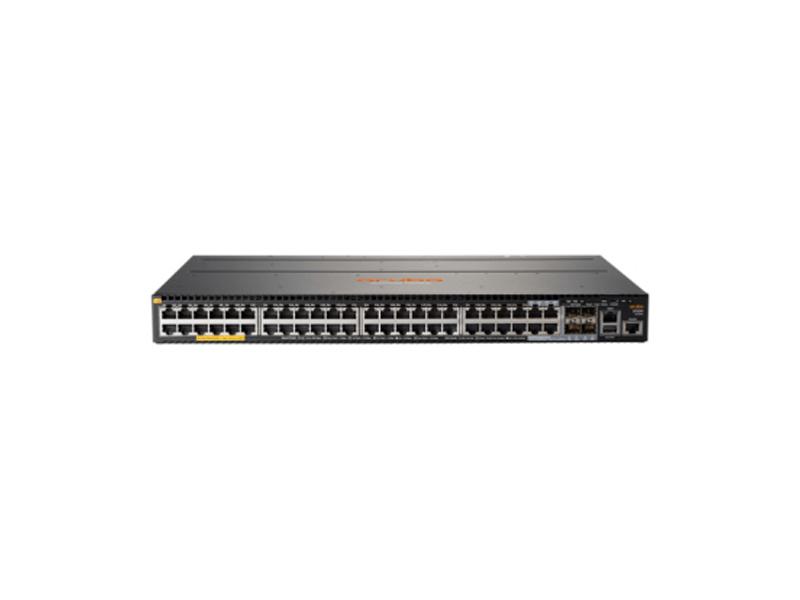

Aruba 2930M 48G Poe+ 1-Slot Swtch

Name: Aruba 2930M 48G Poe+ 1-Slot Swtch
Brand: Ilo
SKU: T304256
Price: 4019.03 CAD
Availability: InStock

$4,019.03 CAD

~~$4,420.93 CAD~~ $4,019.03 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

Aruba 2930M 48G Poe+ 1-Slot Swtch

VPN:JL322A SKU:T304256 UPC:190017071251

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.

Technical Specifications

Primary Information
Network Device Type:	Switch
Model:	Aruba 2930M Switch Series
Connectivity Technology:	Wired/Wireless
Data Transfer Rate:	1 Gbps
Networking / Ports Qty:	48
Data Link Protocol:	Gigabit Ethernet
VLAN IP interfaces:	VLAN Support and Tagging supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously
Processor / Type:	ARM Cortex A9
RAM / Total Installed Size:	1 GB
Flash Memory / Installed Size:	4 GB
Networking Compliant Standards:	IEEE 802.3 Type 10BASE-T,IEEE 802.3u Type 100BASETX,IEEE 802.3ab Type 1000Base-T,IEEE 802.3at PoE+
Power / Device Type:	Power Supply
Power Consumption Operational:	470 Watt
Max Power Consumption:	2 Watt
Power / Voltage Required:	100 - 127 / 200 - 240 VAC, rated or 110-127 / 200-240VAC, Rated depending on power supply
Network
Power Over Ethernet (PoE) Support:	IEEE 802.3at Power over Ethernet (PoE+) provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments
PoE Power Consumption:	Up to 1440 Watts
MAC Address Table Size:	32768 entries
Jumbo Frame Support:	Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9220 bytes
Remote Management Protocol:	SNMP
Routing Protocol:	Layer 3 Dynamic
Encryption Algorithm:	MD5
Authentication Method:	Uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance with industry standards; Supports web-based authentication; Supports MAC-based client authentication
10/100/1000BASE-T Ports:	44
Interfaces:	(44) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot
Interfaces / Ports
Interfaces:	(44) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot
VLAN IP interfaces:	VLAN Support and Tagging supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously
10/100/1000BASE-T Ports:	44
Dimensions&Miscellaneous
Width:	1.73 Inch
Depth:	17.42 Inch
Height:	12.77 Inch
Weight:	10.25 lbs.
Service&Support
Service & Support Type:	Limited Lifetime Warranty
Special Feature
Min Operating Temperature:	0 Celsius(up to 5000 Feet)
Max Operating Temperature:	55 Celsius
Min Storage Temperature:	-40 Celsius(up to 15000 Feet)
Max Storage Temperature:	70 Celsius
COO:	Inquire
TAA compliance:	Inquire
UNSPSC Code
UNSPSC Code:	43222612
