About the product

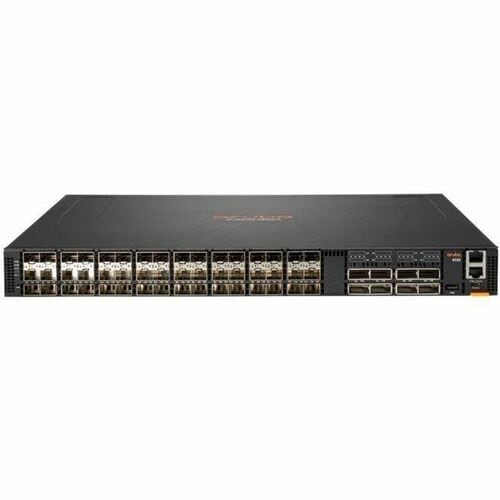

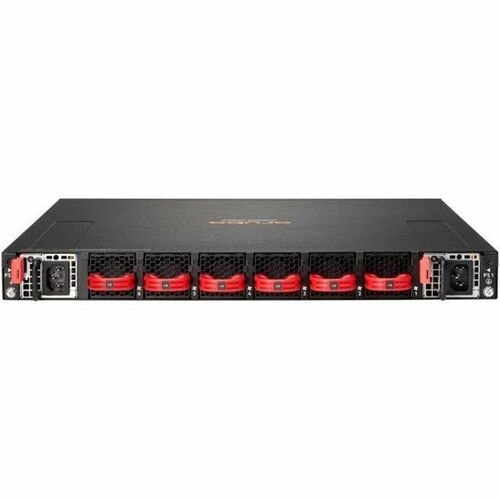

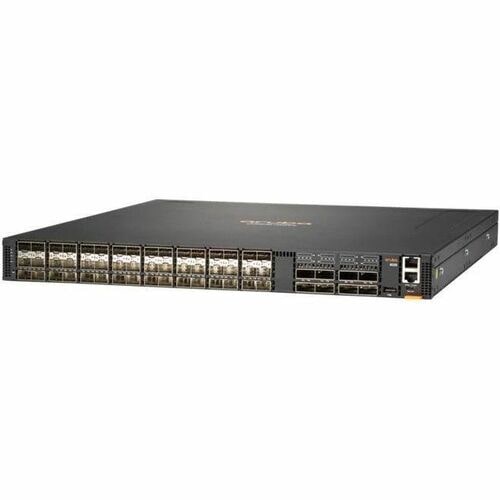

Aruba 8325 Switch Series
The Aruba CX 8325 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud and IoT era. These switches serve the needs of the next generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR). They provide over 6.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
The CX 8325 series includes industry-leading line rate ports 1/10/25GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) with connectivity in a compact 1U form factor. These switches offer a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE to 100GbE ports.
- High performance 6.4Tbps with 2,000Mpps throughput
- High availability with industry-leading VSX redundancy, and redundant power supplies and fans
- Designed for core/aggregation in the campus or Top of Rack (ToR) or End of Row (EoR) in the data center
- AOS-CX automation and programmability using built-in REST APIs and Python scripts
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-lite, and IPv6
- Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine
- One touch deployment with the Aruba CX Mobile App
- Aruba NetEdit support for automated configuration and verification
- Compact 1U switches with 1/10/25GbE and 40/100GbE connectivity
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| SFP28 | |
| Total Number of Expansion Slots | 56.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot |
| 8 x 100 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 25GBase-X |
| 100GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| 25 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL624AB2B |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 8325-48Y8C |
| Product Name | 8325-48Y8C Ethernet Switch |
| Product Series | 8325 |
| Brand Name | HPE |
| Miscellaneous | |
| Application/Usage | Industrial |
| Enterprise | |
| Data Center | |
| Business | |
| Network | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 22.05 lb (10000 g) |
| Form Factor | Surface Mount |
| Rack-mountable | |
| Cabinet Mount | |
| Height | 1.69" (43 mm) |
| Width | 17.24" (438 mm) |
| Depth | 21.10" (536 mm) |
| Compatible Rack Unit | 1U |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | AC |
| Power Supply | |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 550 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3z |
| IEEE 802.1s | |
| IEEE 802.1t | |
| IEEE 802.1ab | |
| IEEE 802.1ak | |
| IEEE 802.1AX | |
| IEEE 802.1D | |
| IEEE 802.1w | |
| IEEE 802.3 | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3ba | |
| IEEE 802.3by | |
| IEEE 802.1p | |
| IEEE 802.1Q |
