About the product

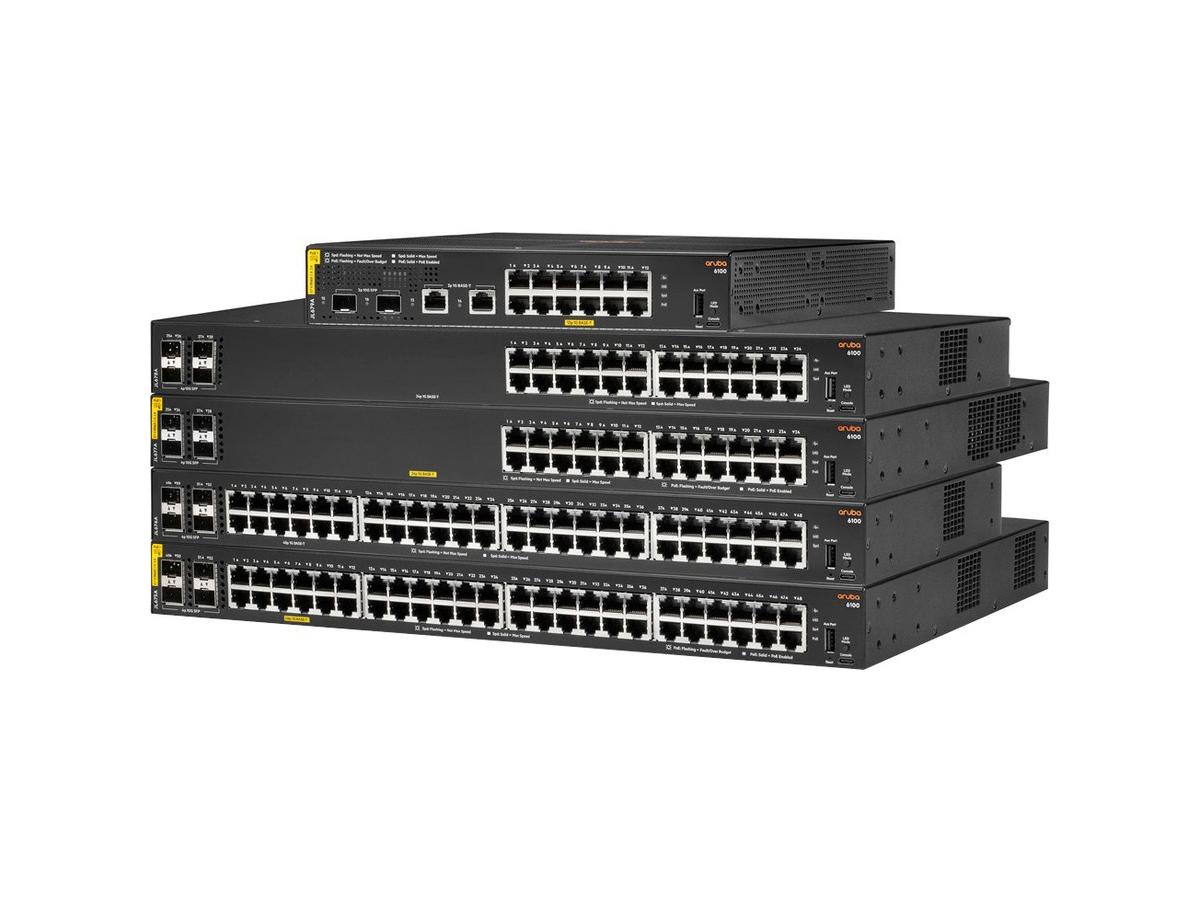

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.
Technical Specifications
| Primary Information | |
| Product Description: | HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch - switch - 16 ports - managed - rack-mountable |
| Device Type: | Switch - 16 ports - managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | 10 Gigabit Ethernet |
| Ports: | 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 139 W |
| Performance: | Switching capacity: 68 Gbps ¦ Throughput: 45.1 Mpps ¦ Latency (1 Gbps): 2.3 µs ¦ Latency (10 Gbps): 2.6 µs |
| Capacity: | Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 |
| MAC Address Table Size: | 8192 entries |
| Routing Protocol: | IGMPv2, IGMPv3 |
| Features: | Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, MLD snooping, fanless, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, MIB, NAC, NDP, SNMP support, ICMP, EntityMIB, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing |
| Compliant Standards: | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Power: | AC 230 V (50/60 Hz) |
| Dimensions (WxDxH): | 10 in x 10 in x 1.7 in |
| Weight: | 6.13 lbs |
| Localization: | English / United States |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Device Type: | Switch - 16 ports - managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | 10 Gigabit Ethernet |
| Ports: | 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 139 W |
| Performance: | Switching capacity: 68 Gbps ¦ Throughput: 45.1 Mpps ¦ Latency (1 Gbps): 2.3 µs ¦ Latency (10 Gbps): 2.6 µs |
| Capacity: | Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 |
| MAC Address Table Size: | 8192 entries |
| Routing Protocol: | IGMPv2, IGMPv3 |
| Encryption Algorithm: | SSL |
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features: | Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, MLD snooping, fanless, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, MIB, NAC, NDP, SNMP support, ICMP, EntityMIB, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing |
| Compliant Standards: | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Processor: | 1 x ARM A9: 1.016 GHz |
| RAM: | 4 GB DDR3 SDRAM |
| Flash Memory: | 16 GB |
| Expansion / Connectivity | |
| Interfaces: | 12 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A ¦ 2 x Gigabit LAN |
| Power | |
| Power Device: | Internal power supply |
| Power Provided: | 165 Watt 0.9 A |
| Voltage Required: | AC 230 V (50/60 Hz) |
| Power Consumption Operational: | 16 Watt |
| Miscellaneous | |
| Compliant Standards: | FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792 |
| Localization: | English / United States |
| Dimensions & Weight | |
| Width: | 10 in |
| Depth: | 10 in |
| Height: | 1.7 in |
| Weight: | 6.13 lbs |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime |
