About the product

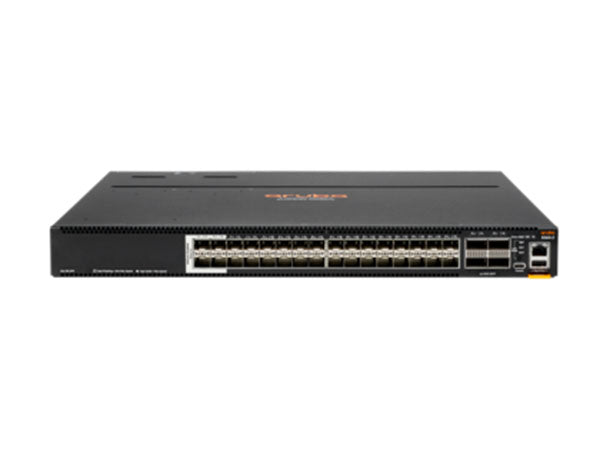

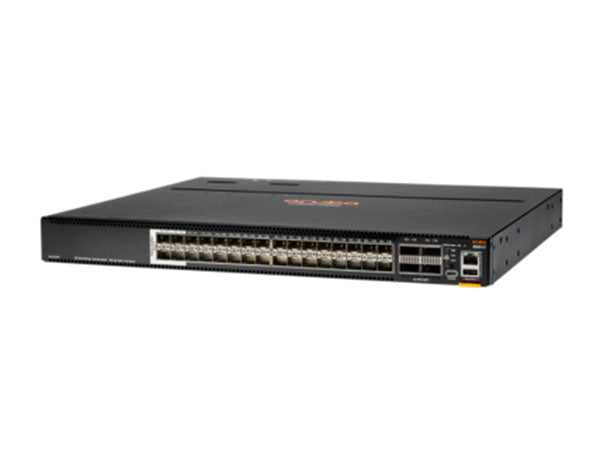

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next generation core and aggregation layer of campuses, as well as virtual and cloud data center environments. The first switch in this series is the Aruba CX 8360-48Y6C v2 switch.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | Aruba CX 8360 v2 Switch Series |
| Form Factor: | QSFP+ |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Gbps |
| Networking / Ports Qty: | 39 |
| Data Link Protocol: | 100 Gigabit Ethernet |
| Processor / Type: | Quad-Core |
| RAM / Total Installed Size: | 16 GB |
| Flash Memory / Installed Size: | 32 GB |
| Power / Device Type: | Power Supply |
| Power / Installed Qty: | 2 |
| Power Consumption Operational: | 425 Watt |
| Max Power Consumption: | 425 Watt |
| Power / Voltage Required: | 100-127VAC, 200-240VAC |
| Features: | High availability with industry leading VSX redundancy |
| Interfaces / Ports | |
| Interfaces: | 28 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE QSFP+/QSFP28) (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) |
| Network | |
| Routing Protocol: | Layer 3 Advanced |
| Interfaces: | 28 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE QSFP+/QSFP28) (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) |
| Dimensions&Miscellaneous | |
| Width: | 1.73 Inch |
| Depth: | 17.4 Inch |
| Height: | 16 Inch |
| Weight: | 18.05 lbs. |
| Service&Support | |
| Service & Support Type: | Limited Lifetime Warranty |
| Special Feature | |
| Min Operating Temperature: | 0 C |
| Max Operating Temperature: | 45 C |
| Min Storage Temperature: | -40 C |
| Max Storage Temperature: | 70 C |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
