About the product

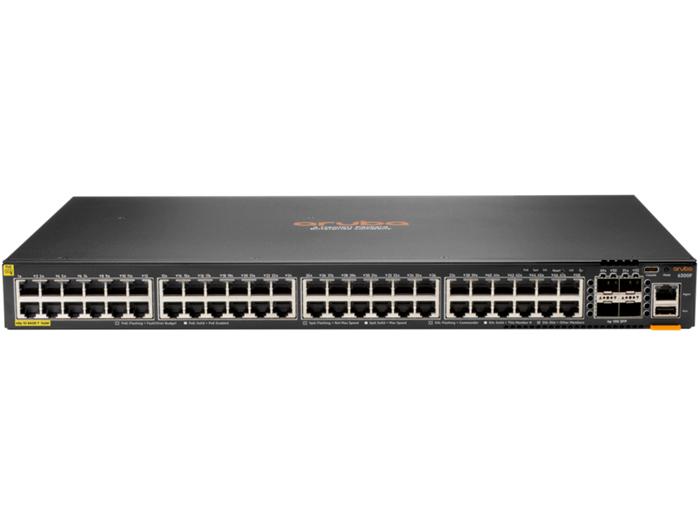

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow's unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | HPE Aruba Networking CX 6200 Switch |
| Form Factor: | 1U |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 52 |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Type: | ARM Cortex A72 |
| Power / Device Type: | Power Supply |
| Power Consumption Operational: | 76 Watt |
| Max Power Consumption: | 76 Watt |
| Power / Voltage Required: | 100V-120V/200V-240V |
| Network | |
| PoE Power Consumption: | 740W |
| Routing Protocol: | Layer 3 Advanced |
| 10/100/1000BASE-T Ports: | 48 |
| Interfaces: | 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 100M/1/10G SFP+ ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x RJ-45 Console Port 1x OOBM 1x USB Type-A Host port |
| Interfaces / Ports | |
| Interfaces: | 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 100M/1/10G SFP+ ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x RJ-45 Console Port 1x OOBM 1x USB Type-A Host port |
| 10/100/1000BASE-T Ports: | 48 |
| Dimensions&Miscellaneous | |
| Width: | 1.73 Inch |
| Depth: | 17.4 Inch |
| Height: | 12.9 Inch |
| Weight: | 11.24 lbs. |
| Service&Support | |
| Service & Support Type: | Limited Lifetime Warranty |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
