About the product
More screens, more speed, and more power for more setups.
IT professionals working in mixed technology environments often struggle to find docking solutions that maximize the capabilities of different laptops and operating systems. For those seeking a high-speed dock that can support up to four external displays, the SD5910T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station that can unlock the full potential of premium laptops. Ideal for Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® devices running Windows and ChromeOS, the SD5910T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology delivers more screens, more speed, and more power for more setups-so everyone can be more productive and focused.

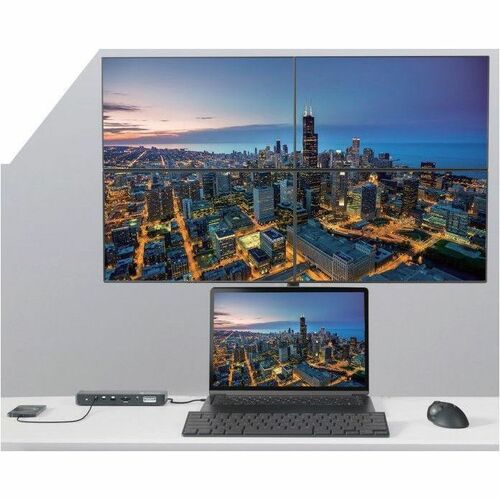

- Up to Quad 4K Video via HDMI®, DP, and Thunderbolt™
- Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® devices
- Windows (10 or later) and ChromeOS (114 or later)
- Data transfer speeds up to 40Gbps
- Daisy chain support
- Intel VT-d DMA protection
- Up to 100W charging (96W certified)

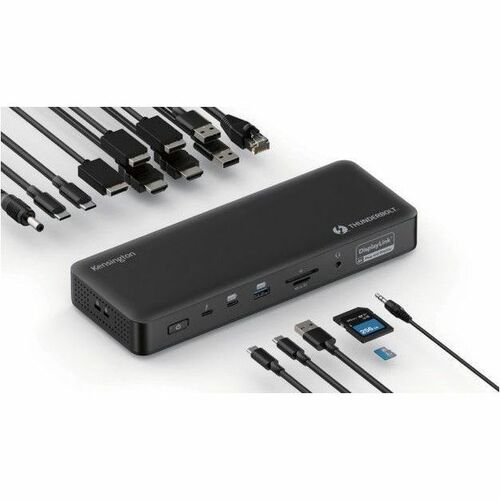

- Productive 16-in-1 design
- Composed of 100% post-consumer recycled (PCR) aluminum*

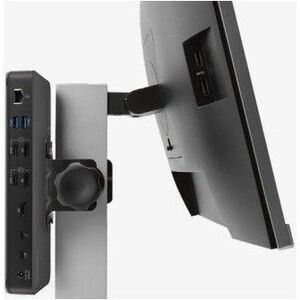

- Zero-footprint mounting option
- Security cable lock slots
- 3-Year limited warranty
Technical Specifications
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 149.10 W |
| Power Source Type | Power Supply |
| Software | |
| Operating System Supported | Windows 11 |
| ChromeOS 114 | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Vietnam |
| Post-consumer-waste% | 100% |
| Kensington Security Slot | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 1.32 lb (598.741928 g) |
| Form Factor | Desktop |
| Height | 8.86" (225 mm) |
| Width | 3.35" (85 mm) |
| Depth | 0.87" (22 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | K35233NA |
| Manufacturer Website Address | http://www.acco.com |
| Packaged Quantity | 1 |
| Manufacturer | ACCO Brands Corporation |
| Product Model | SD5910T |
| Product Name | SD5910T Docking Station |
| Package Type | Retail |
| Brand Name | Kensington |
| Technical Information | |
| Cable Length | 3.3 ft |
| Device Supported | Desktop PC/Notebook/Tablet/Smartphone/Monitor/Memory Card Reader/Solid State Drive/Smartwatch |
| Connectivity Technology | Wired |
| Features | KonstantCharge |
| LED Power Indicator | |
| Plug and Play | |
| Power Delivery Pass-through | |
| Charging Capability | Yes |
| Memory Card Supported | SD |
| microSD | |
| Memory Card Reader | Yes |
| Maximum Data Transfer Rate | 5 GB/s |
| Number of Displays Supported | 4 |
| Supported Resolutions | 7680 x 4320 |
| 3840 x 2160 | |
| Screen Mode Supported | 4K @ 60Hz |
| 4K | |
| 8K @ 60Hz | |
| Security Slot Type | Kensington Security Slot |

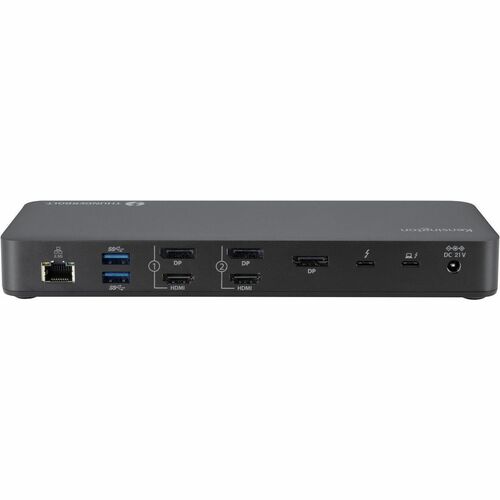

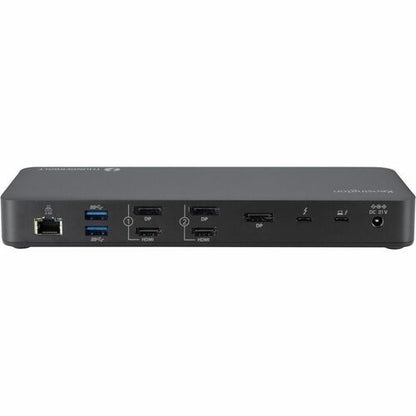

| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Thunderbolt | Yes |
| Number of DisplayPorts | 3 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C® 3.2 Gen2, 10Gbps (up to 5V/3A, 15W) |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 3 |
| Thunderbolt Ports Quantity | 3 |
| USB Power Delivery | 100W |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of Thunderbolt 4 Ports | 3 |
| USB Type-A | Yes |
