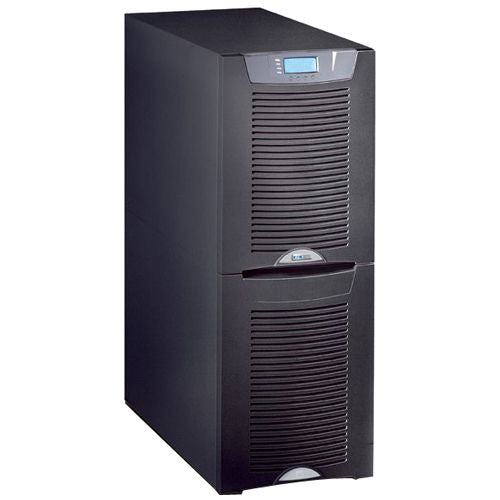

Eaton Powerware PW9155 10 kVA 64 Battery (3-high) - Tower - 3 Hour Rec

Name: Eaton Powerware PW9155 10 kVA 64 Battery (3-high) - Tower - 3 Hour Rec
Brand: Eaton
SKU: RSC994609
Price: 19415.47 CAD
Availability: OutOfStock

$19,415.47 CAD

~~$21,745.33 CAD~~ $19,415.47 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Eaton Powerware PW9155 10 kVA 64 Battery (3-high) - Tower - 3 Hour Recharge - 22 Minute Stand-by - 220 V AC Input - 100 V AC, 110 V AC, 120 V AC, 127 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC Output

VPN:K41012000000000 SKU:RSC994609 UPC:

Please see below description

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Eaton Powerware PW9155 10 kVA 64 Battery (3-high) - Tower - 3 Hour Rec

About the product

The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, health care, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.

Technical Specifications

Interfaces/Ports
Modular Slots	2 x X-Slot
Management
Bypass Switch	Automatic
Technical Information
Plug/Connector Type	Hardwired
Transfer Time	0 ns
Miscellaneous
Additional Information	Output Receptacle: 1 x PDM Delivers a complete solution in a sleek tower design that includes internal batteries and an integrated power distribution module Offers industry-leading power density with small footprint and more power capacity than comparable UPS Provides more real power in less space with high 0.9 output power factor Extends battery service life with ABM technology that uses an innovative three-stage battery charging system Enables paralleling of up to four 9155 UPS for additional capacity and redundancy Offers scalability with 8 to 10 kVA and 12 to 15 kVA capacity upgrades Communication Ports: 1 x Relay Contact 1 x REPO 2 x Environmental Inputs
Package Contents	9155 10kVA Tower UPS Software Suite CD User Guide
Software Included	Eaton Software Suite
Country of Origin	United States
Battery Information
Battery Chemistry	Lead Acid
Backup/Run Time (Half Load)	52 Minute
Backup/Run Time (Full Load)	22 Minute
Battery Characteristics	Maintenance-free
Typical Battery Recharge Time	3 Hour
Physical Characteristics
Weight (Approximate)	267.62 kg
Form Factor	Tower
Height	47.80" (1214.12 mm)
Width	12" (304.80 mm)
Depth	34" (863.60 mm)
General Information
Product Type	Double Conversion Online UPS
Manufacturer Part Number	K41012000000000
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer	Eaton Corporation
Product Name	PW9155 10 kVA 64 Battery (3-high)
Brand Name	Powerware
Power Description
Input Voltage	220 V AC
Output Voltage	208 V AC
	200 V AC
	127 V AC
	220 V AC
	240 V AC
	120 V AC
	100 V AC
	110 V AC
Output Frequency	60 Hz
Input Frequency	65 Hz
Load Capacity (VA)	10 kVA
