About the product

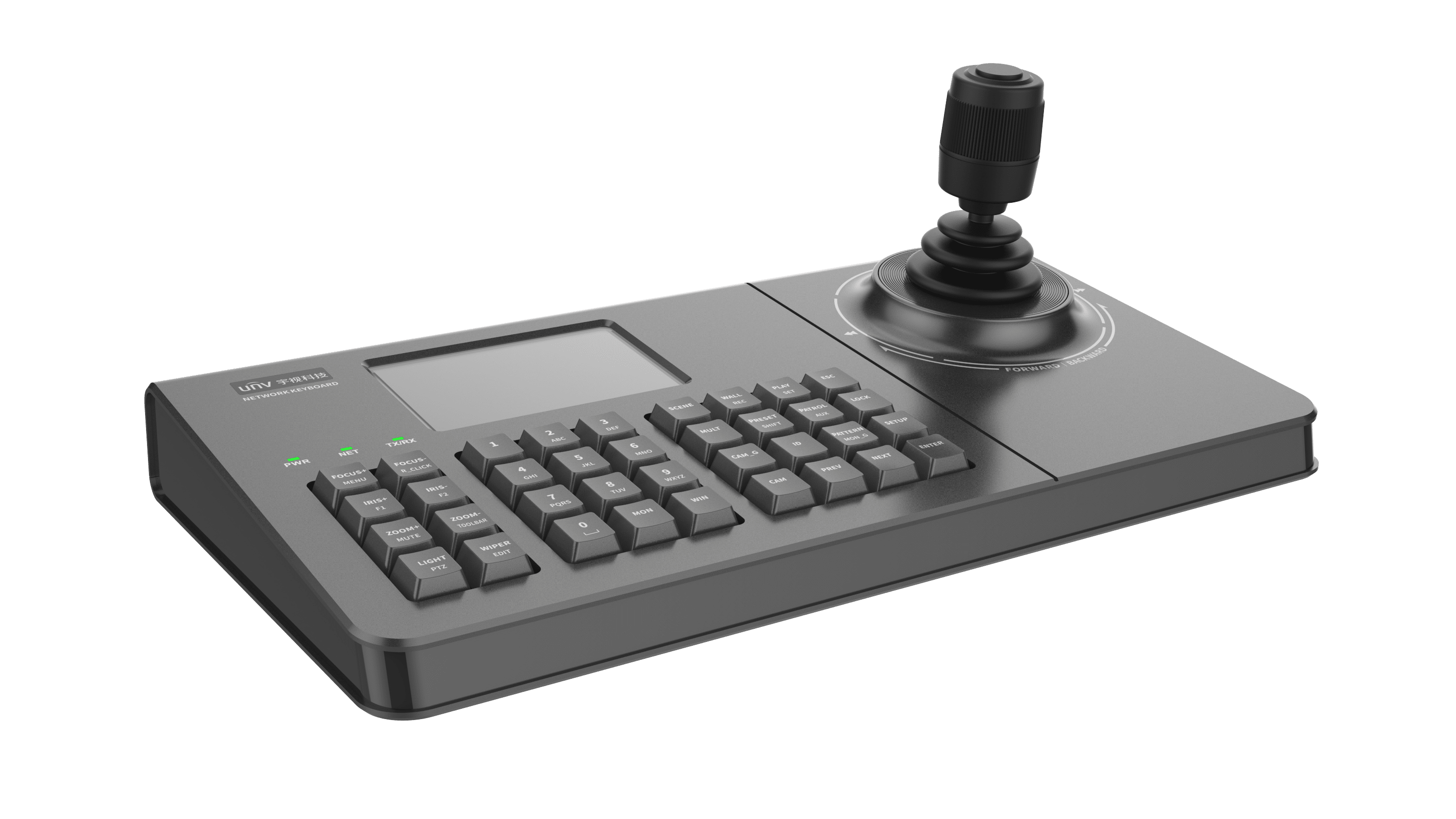

The Uniview Network Keyboard with 4D Joystick is a simple, user-friendly controller for simplified control and playback on Uniview NVRs. Additional built-in 4'' screen provides clear imaging with extended details, and the high-precision Hoare 4D joystick makes control of connected PTZ cameras simple and intuitive for connected operators.
Additional features like one-button NVR power on/off, video wall playback and customizable user permissions makes camera and recording maintenance simple for multiple different users with different permission levels.
Designed for Uniview NVR and camera systems.
KB-1100-E Specs and Features
- 4D Hoare joystick for PTZ control (move up/down//left/right, focus, zoom) with keyboard controls

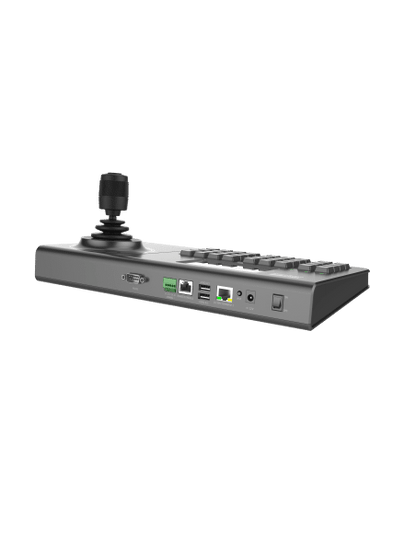

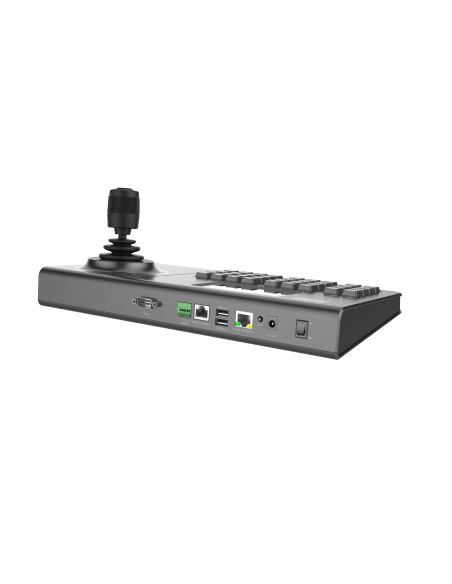

- I/O: 1x RS232 serial interface, 1x RS485 serial interface, 1x Console RS485 shared interface (RJ45), 2x USB 2.0, 1x RJ45 10M/100M/1000M Based-T adaptive interface, 1x reset button, 12VDC power supply, 1x on/off power switch
- Screen Size: 4 inches
- Joystick: Four-dimensional joystick
- Max Power Consumption (W): > 5
- Product Dimensions (W*H*D)(mm): 345 x 189.8 x 128.2
- Weight (kg): 1.2
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH, noncondensing
Technical Specifications
The Uniview Network Keyboard with 4D Joystick is a simple, user-friendly controller for simplified control and playback on Uniview NVRs. Additional built-in 4'' screen provides clear imaging with extended details, and the high-precision Hoare 4D joystick makes control of connected PTZ cameras simple and intuitive for connected operators.
Additional features like one-button NVR power on/off, video wall playback and customizable user permissions makes camera and recording maintenance simple for multiple different users with different permission levels.
Designed for Uniview NVR and camera systems.
KB-1100-E Specs and Features
- 4D Hoare joystick for PTZ control (move up/down//left/right, focus, zoom) with keyboard controls
- I/O: 1x RS232 serial interface, 1x RS485 serial interface, 1x Console RS485 shared interface (RJ45), 2x USB 2.0, 1x RJ45 10M/100M/1000M Based-T adaptive interface, 1x reset button, 12VDC power supply, 1x on/off power switch
- Screen Size: 4 inches
- Joystick: Four-dimensional joystick
- Max Power Consumption (W): > 5
- Product Dimensions (W*H*D)(mm): 345 x 189.8 x 128.2
- Weight (kg): 1.2
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH, noncondensing
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
Price guarantee
!00% we are always lower than market price.
